Product Details
Mechanical Grade Paste

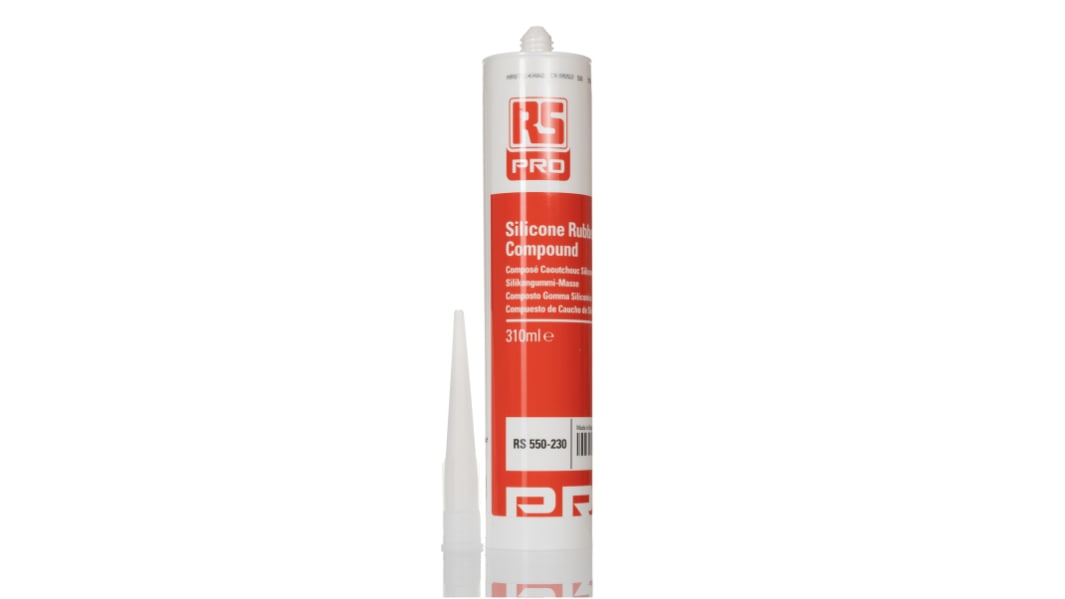

A clear acetoxy, silicone rubber compound equivalent to 732 RTV which will bond to most clean surfaces. It may be used as a sealant, gasket material or insulator for electrical repairs. Specific applications include sealing wire entries and connectors, adhesive for thermistor mounting, and seals for electrical housings and enclosures. During cure the material liberates acetic acid. Where a mould release agent is required, use PTFE dry film lubricant.
Note
Not considered to be food safe.
Specifications
Attribute | Value |
---|---|
Sealant Type | Silicone Sealant |
Colour | Transparent |
Application | Electrical |
Package Size | 310 ml |
Package Type | Cartridge |
Minimum Operating Temperature | -60°C |
Maximum Operating Temperature | +180°C |
Food Processing Safe | No |
Chemical Type | Acetoxy, Elastomer |
Physical Properties | Acetoxy Cure |
Cure Time | 7 (23 °C) days |
Product Form | Paste |
Tensile Strength | 230N/cm |
Specific Gravity | 1.03 |
Operating Temperature Range | -60 → +180 °C |
Hardness | 25 Shore A |
Odour | Acetic Acid |
Dielectric Strength | 21.6kV/mm |
