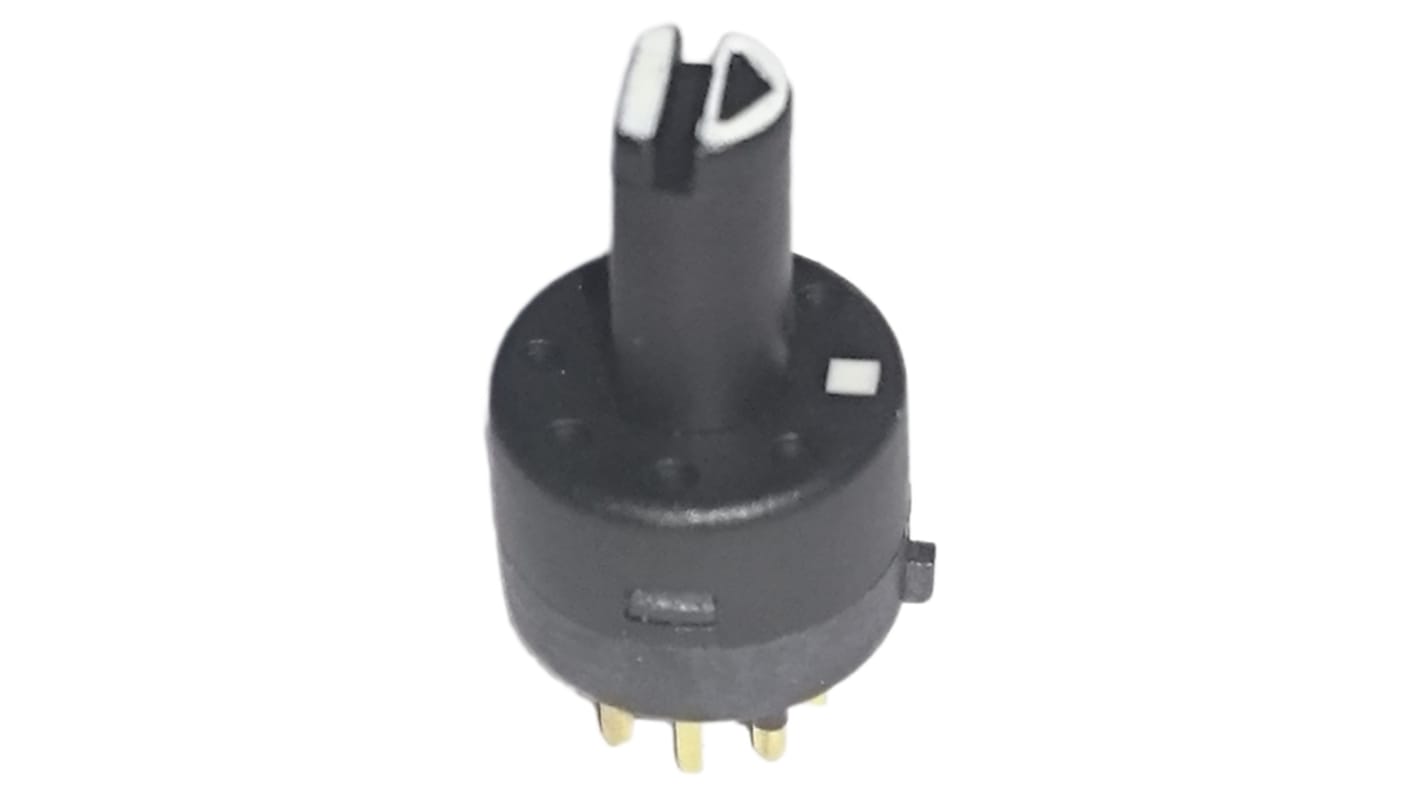

Lorlin, 3 Position Rotary Switch, 500 mA, PCB Pin

  • RS Stock No. 899-8558
  • Mfr. Part No. MTL-21-30
  • Manufacturer Lorlin
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Subminiature TO-5 Rotary Switch

Compact rotary switch in a convenient 9.2mm diameter TO-5 package
High current rating for size (500mA @ 24Vdc)
Ideal for isolating applications
45° indexing, positive action
Available in flush slot or spindle-operated versions
Single pole up to 7 break-before-make positions + NC
Mechanical life >5000 operations
Operating temperature -30°C to +65°C (MTS -20°C to +65 °C)
Contact resistance <100 mohms
Contact material brass CZ108 Au plated

PCB Mounting

Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows

Specifications
Attribute Value
Contact Current Rating 500 mA
Number of Switch Positions 3
Number of Contacts 8
Voltage Rating 24V ac/dc
Diameter 9.2mm
Dimensions 9.2 (Dia.) x 14.2mm
Mounting Type PCB
Mounting Hole Size 0.76 mm
Terminal Type PCB Pin
Height 14.2mm
Angle of Throw 90°
Mechanical Life >5000Cycles
Actuator Colour Black
Maximum Operating Temperature +65°C
Case Material Glass Filled Polyester PBT
Contact Material Gold Plated Brass
Minimum Operating Temperature -30°C
Contact Type Shorting
152 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 3.35
(exc. GST)
$ 3.69
(inc. GST)
units
Per unit
1 - 9
$3.35
10 - 24
$3.28
25 - 49
$3.22
50 - 199
$3.02
200 +
$2.95
