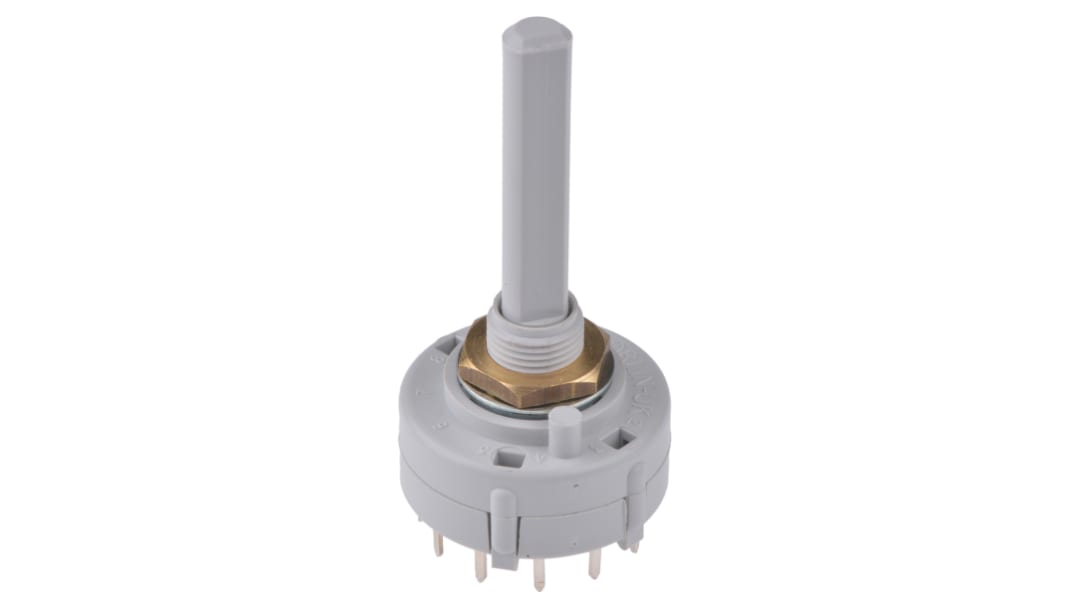

Lorlin, 12 Position SPST Rotary Switch, 150 mA, Solder
- RS Stock No.:
- 866-0265
- Mfr. Part No.:
- CK1044
- Brand:
- Lorlin
940 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Bag of 5)
$8.342
(exc. GST)
$9.176
(inc. GST)
| Units | Per unit | Per Bag* |
| 5 - 120 | $8.342 | $41.71 |
| 125 - 245 | $8.292 | $41.46 |
| 250 - 745 | $8.152 | $40.76 |
| 750 - 1495 | $7.952 | $39.76 |
| 1500 + | $7.742 | $38.71 |
| *price indicative | ||
- RS Stock No.:
- 866-0265
- Mfr. Part No.:
- CK1044
- Brand:
- Lorlin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Midget Wafer Switch - CK Series Imperial
A selection of Lorlin CK rotary switches with various switch configurations.
Contacts rated 150mA @ 250Vac/dc
Solder terminals
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) and non-shorting BBM (break before make) contacts
Adjustable stop and continuous rotation options
Dimensions:1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread
Solder terminals
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) and non-shorting BBM (break before make) contacts
Adjustable stop and continuous rotation options
Dimensions:1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Contact Current Rating | 150 mA |
| Number of Switch Positions | 12 |
| Number of Contacts | 1 |
| Voltage Rating | 250V ac/dc |
| Diameter | 27.5mm |
| Dimensions | 27.5 (Dia.) x 59.1mm |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Application | Low Power |
| Height | 59.1mm |
| Contact Material | Brass |
| Case Material | Nylon 6.6 |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | >10000Cycles |
| Minimum Operating Temperature | -30°C |
