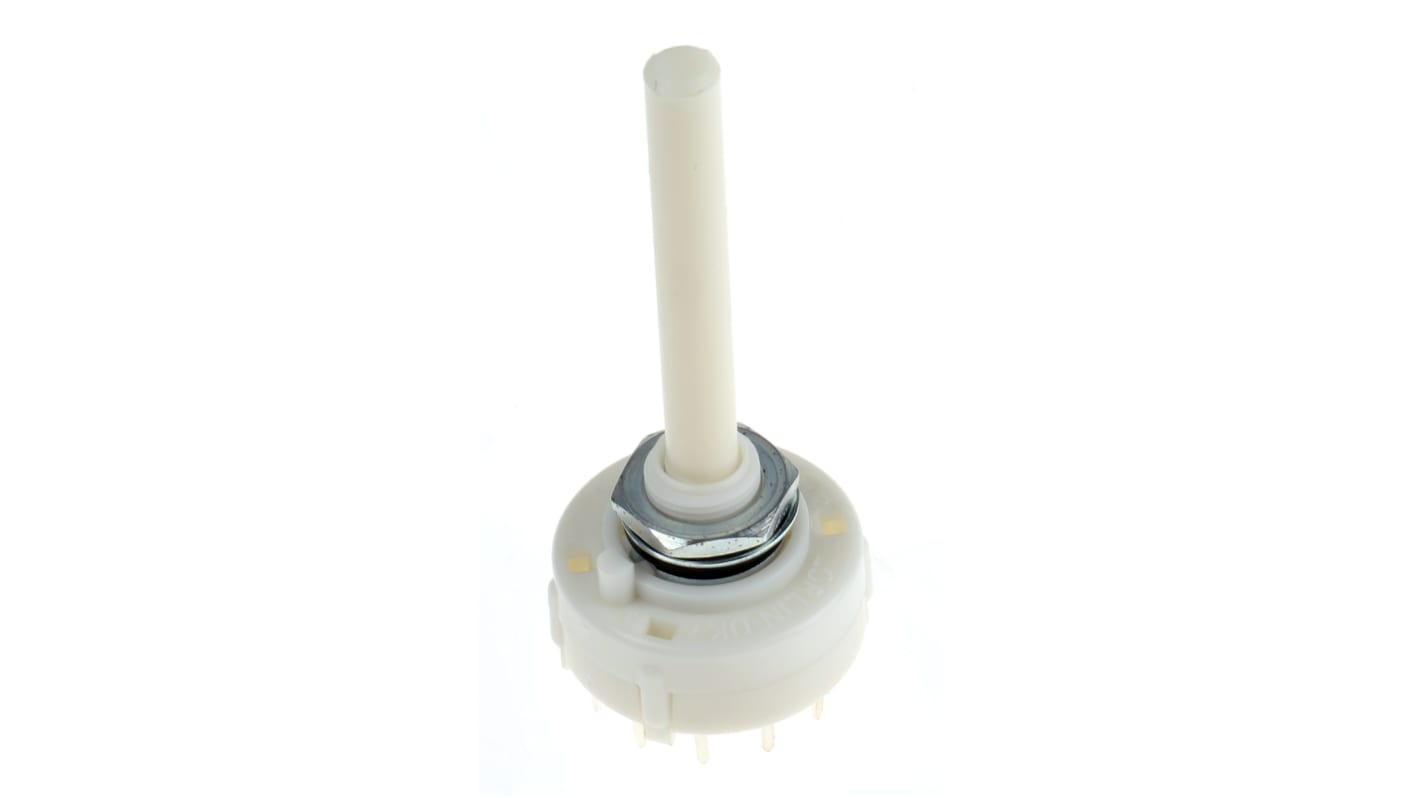

Lorlin, 4 Position 3P4T Rotary Switch, 150 mA @ 250 V ac, Solder
- RS Stock No.:
- 711-8357
- Mfr. Part No.:
- CKF1051
- Brand:
- Lorlin
14 In AU stock for next working day delivery
3 In Global stock for delivery within 5 working day(s)
278 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$13.87
(exc. GST)
$15.26
(inc. GST)
| Units | Per unit |
| 1 - 9 | $13.87 |
| 10 - 49 | $13.63 |
| 50 - 99 | $13.38 |
| 100 - 249 | $13.13 |
| 250 + | $12.90 |
- RS Stock No.:
- 711-8357
- Mfr. Part No.:
- CKF1051
- Brand:
- Lorlin
Technical data sheets
Legislation and Compliance
Product Details
Sealed Rotary Switch - PCB Mount
Single wafer switch
30° indexing
Non-shorting break before make contacts
Dampened indexing and reduced shaft play
Sealed to IP65
Stop included
30° indexing
Non-shorting break before make contacts
Dampened indexing and reduced shaft play
Sealed to IP65
Stop included
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | 3P4T |
| Contact Current Rating | 150 mA @ 250 V ac |
| Number of Switch Positions | 4 |
| Number of Contacts | 3 |
| Voltage Rating | 250V ac/dc |
| Diameter | 27.5mm |
| Dimensions | 27.5 x 64.1mm |
| Mounting Type | PCB |
| Mounting Hole Size | 1.5 (PCB) mm, 10 (Panel) mm |
| Terminal Type | Solder |
| IP Rating | IP65 |
| Mechanical Life | 10000Operations |
| Legend Text | 1-12 |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Height | 64.1mm |
| Contact Material | Silver Plated Brass |
| Case Material | Nylon 66 |
| Legend Text Colour | White |
