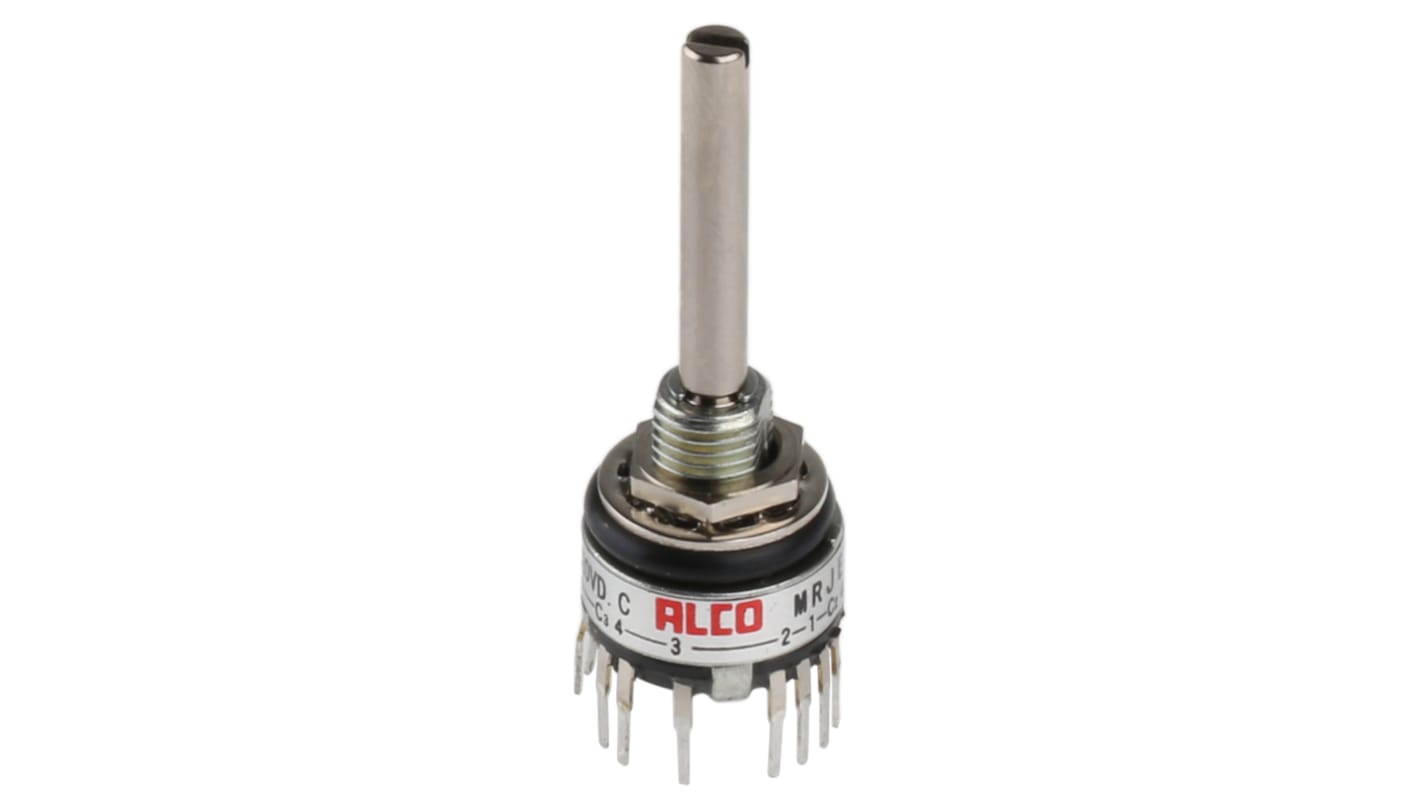

TE Connectivity, 4 Position 3P Rotary Switch, 400 mA @ 20 V, Through Hole

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Miniature Rotary Switches, IP67

Miniature enclosed rotary switches which are protected to IP67
The gold plated-plated nickel break-before-make contacts have a wiping action to ensure long and reliable life. Screwdriver slot on the shaft end allows use without knob
Applications include communication and portable test/monitoring equipment
Suitable for dry circuit switching
Panel or PCB mounting
Panel cut-out: Ø6.4mm
Shaft: Ø3.30mm; Length: 19mm

Specifications
Attribute Value
Contact Configuration 3P
Contact Current Rating 400 mA @ 20 V
Number of Switch Positions 4
Number of Contacts 3
Voltage Rating 20V ac/dc
Depth 11.94mm
Width 11.94mm
Dimensions 11.94 x 11.94 x 34.04mm
Terminal Type Through Hole
Case Material Epoxy
IP Rating IP67
Contact Material Brass
Maximum Operating Temperature +70°C
Minimum Operating Temperature -20°C
Height 34.04mm
600 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Bag of 25)
$ 33.83
(exc. GST)
$ 37.21
(inc. GST)
units
Per unit
Per Bag*
25 +
$33.83
$845.75
*price indicative
