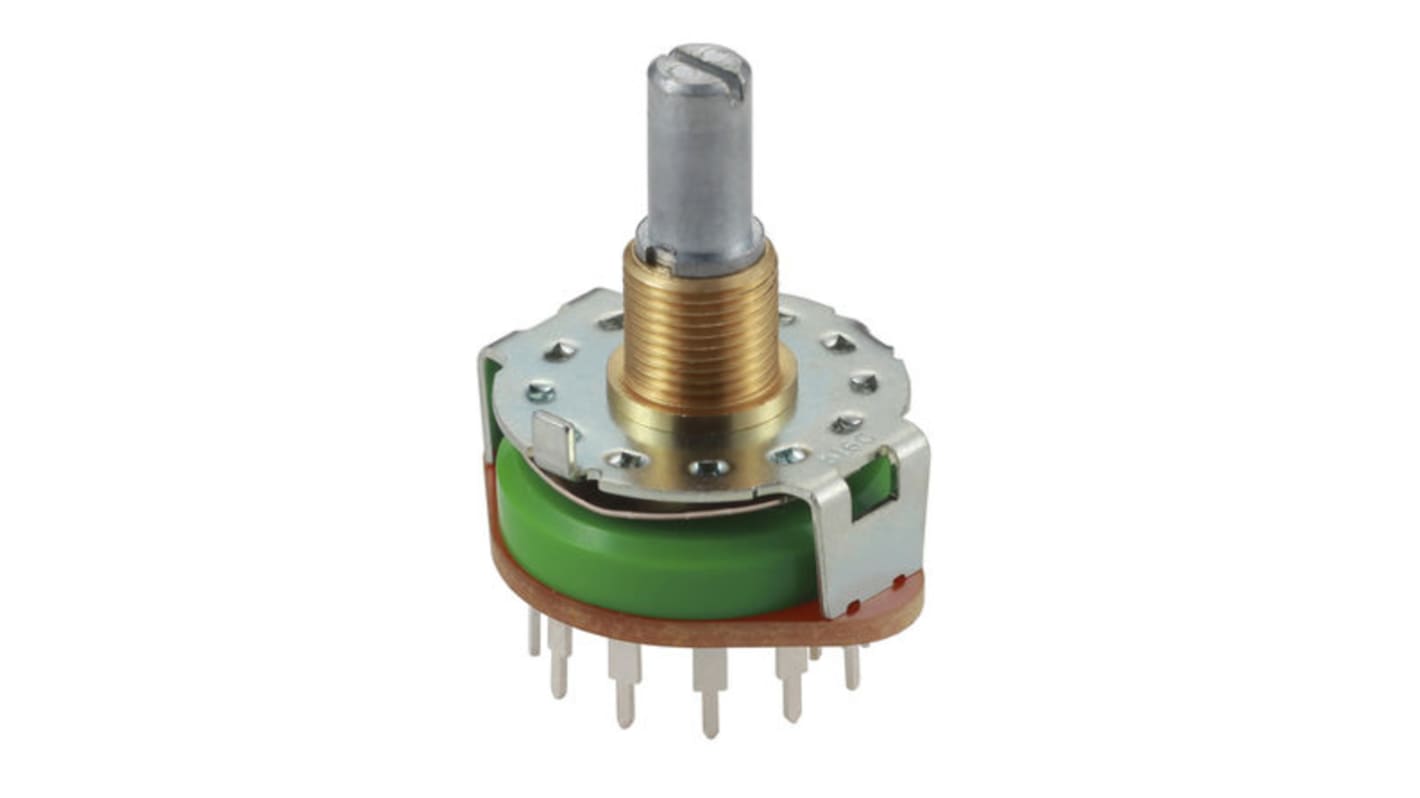

Alps Alpine, 4 Position 3P4T Rotary Switch, 250 mA, PC Pin
- RS Stock No.:
- 123-9625
- Mfr. Part No.:
- SRRM342800
- Brand:
- Alps Alpine
15 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each
$29.50
(exc. GST)
$32.45
(inc. GST)
| Units | Per unit |
| 1 - 19 | $29.50 |
| 20 - 49 | $28.46 |
| 50 - 99 | $27.55 |
| 100 + | $26.89 |
- RS Stock No.:
- 123-9625
- Mfr. Part No.:
- SRRM342800
- Brand:
- Alps Alpine
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Alps SRB / SRR Series Rotary Switches
Features and Benefits
Non shorting changeover timing
Number of wafer, 1
Rotational Torque 30±3°
Non shorting changeover timing
Number of wafer, 1
Rotational Torque 30±3°
Note
Actuator length 15mm or 20mm
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | 3P4T |
| Contact Current Rating | 250 mA |
| Number of Switch Positions | 4 |
| Number of Contacts | 3 |
| Voltage Rating | 30V dc |
| Diameter | 31mm |
| Dimensions | 31 (Dia.) x 31.5mm |
| Mounting Type | PCB |
| Mounting Hole Size | 1.5mm |
| Terminal Type | PC Pin |
| Application | DVD Player, FP-TV |
| Angle of Throw | 30° |
| Mechanical Life | 10000Cycles |
| Maximum Operating Temperature | +60°C |
| Contact Type | Shorting |
| Height | 31.5mm |
| Minimum Operating Temperature | -10°C |
| Actuator Colour | Grey |
