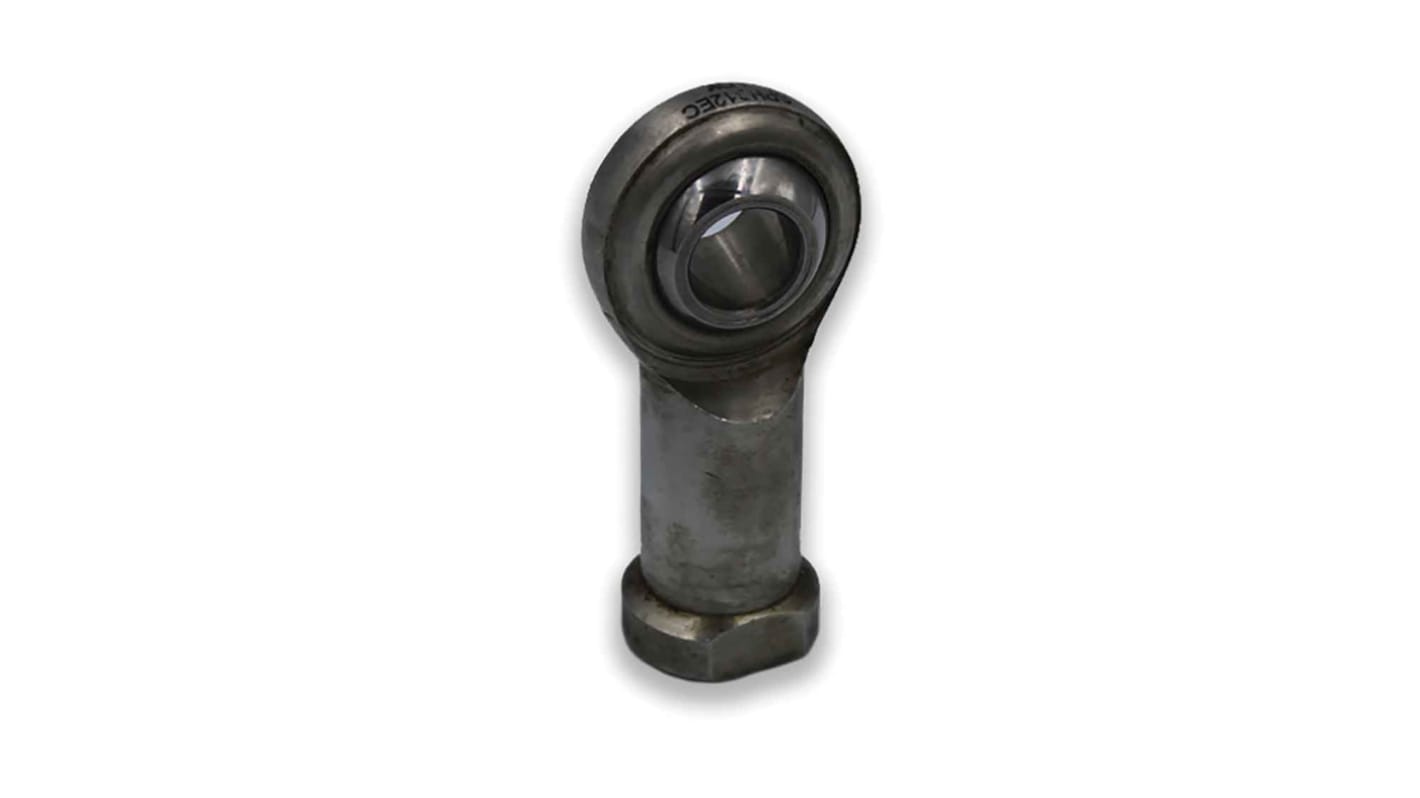

LDK M10 Female 304 Stainless Steel Rod End, 10mm Bore Size, 56mm Long , M10 Thread Size, Metric Thread Standard Female

  • RS Stock No. 185-2530
  • Mfr. Part No. SPHS10ECL x 1.25
  • Manufacturer LDK
Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): CN
Product Details

Ball: 440C Stainless Steel, heat treated, HRC56 min Precision ground, polishedBody: 304 Stainless steelRace: PTFE compositeSliding contact surfaces: Steel/PTFE composite

Specifications
Attribute Value
Connection Size M10 Female
Bore Size 10mm
Dynamic Load Rating 10.4kN
Static Load Rating 17.3kN
Overall Length 56mm
Material 304 Stainless Steel
Connection Thread Size M10
Connection Thread Standard Metric
Connection Gender Female
6 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 74.59
(exc. GST)
$ 82.05
(inc. GST)
units
Per unit
1 - 4
$74.59
5 - 9
$72.50
10 +
$70.56
