- RS Stock No.:
- 706-4367
- Mfr. Part No.:
- RRA32H3BBREN
- Brand:
- ZF
235 In Global stock for delivery within 5 working day(s)
192 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$7.56
(exc. GST)
$8.32
(inc. GST)
Units | Per unit |
1 + | $7.56 |
- RS Stock No.:
- 706-4367
- Mfr. Part No.:
- RRA32H3BBREN
- Brand:
- ZF
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

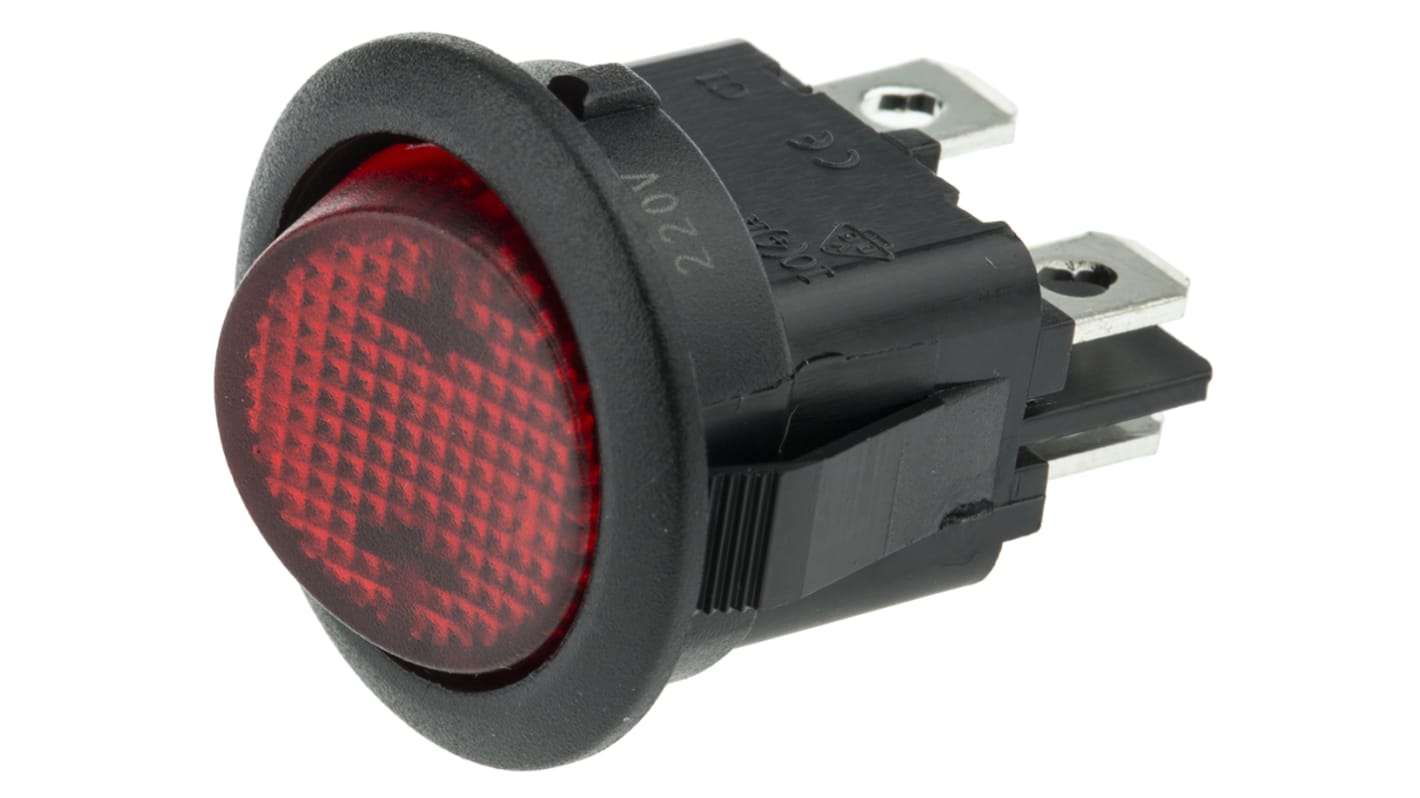

RR Series Circular Rocker Switch
Single-pole and double-pole configurations
Lighted and non-lighted options
Available in a wide variety of colors
High current switching in a compact round package
Self-locking tabs to fit industrystandard panel cut-outs
Mechanical life: min. 100,000 operations
Lighted and non-lighted options
Available in a wide variety of colors
High current switching in a compact round package
Self-locking tabs to fit industrystandard panel cut-outs
Mechanical life: min. 100,000 operations
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Contact Configuration | Double Pole Single Throw (DPST) |
Switch Operation | On-None-Off |
Panel Cut Out Diameter | 20mm |
Contact Current Rating | 10 A @ 250 V ac |
Illuminated | Yes |
Actuator Colour | Red |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Panel Cut Out Size | 20 (Dia.)mm |
Actuator Shape | Round |
AC Voltage Rating | 125 V, 250V |
Minimum Operating Temperature | -20°C |
Operating Temperature Range | -20 → +85°C |
Mechanical Life | 100000Operations |
Case Material | Nylon 66 |
Maximum Operating Temperature | +85°C |
Contact Resistance | 20mΩ |
Contact Material | Silver Alloy |
