- RS Stock No.:
- 706-4335
- Mfr. Part No.:
- LRA32H2BBREN
- Brand:
- ZF
3 In AU stock for next working day delivery
49 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each
$5.05
(exc. GST)
$5.55
(inc. GST)
Units | Per unit |
1 - 49 | $5.05 |
50 - 99 | $4.99 |
100 - 249 | $4.91 |
250 - 499 | $4.85 |
500 + | $4.78 |
- RS Stock No.:
- 706-4335
- Mfr. Part No.:
- LRA32H2BBREN
- Brand:
- ZF
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

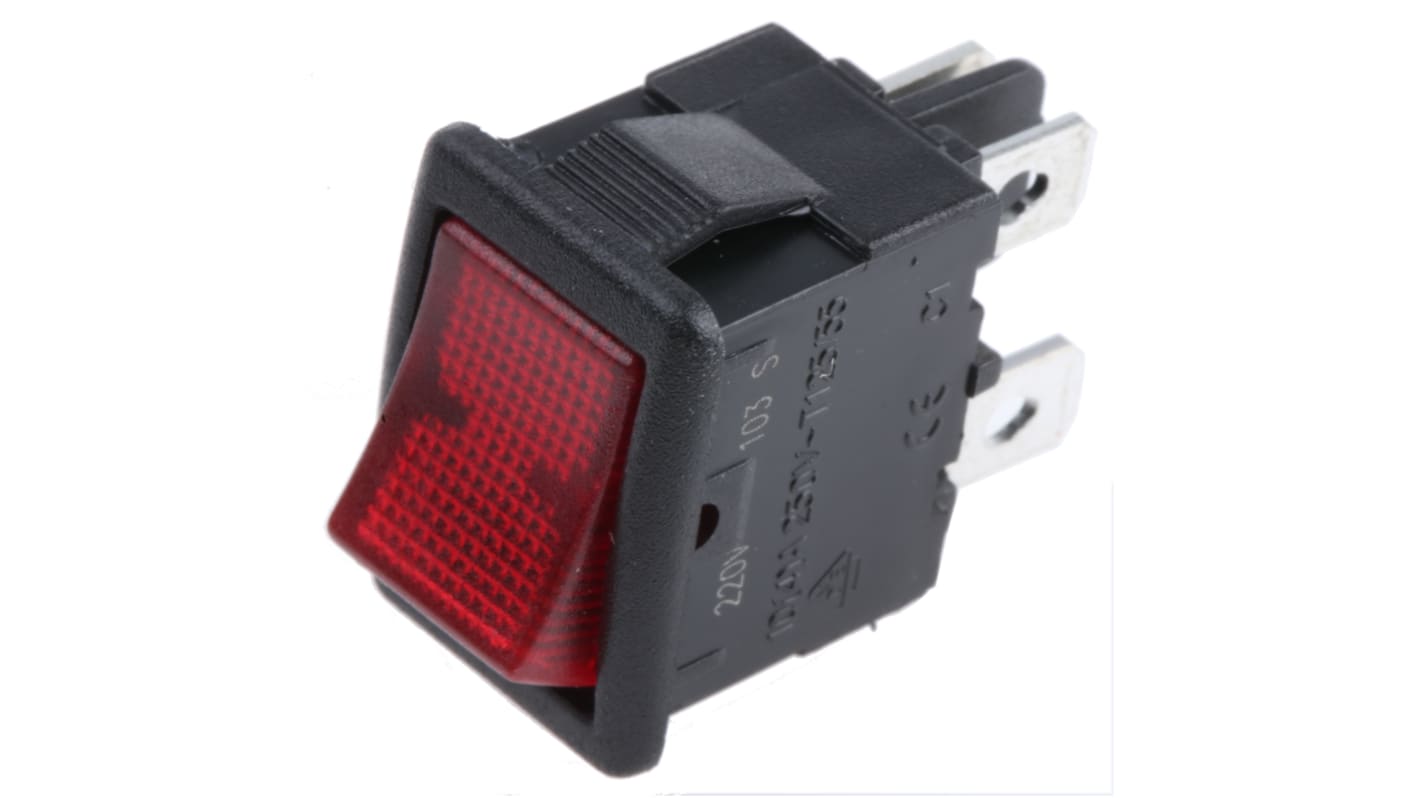

LR Series Miniature Rocker Switches
Single-pole and double-pole configurations
Lighted and non-lighted options
Available in a wide variety of colours
High current switching in a compact package
Variety of terminal styles available
Self-locking tabs to fit industry standard panel cut-outs
Mechanical life: min. 100,000 operations
Lighted and non-lighted options
Available in a wide variety of colours
High current switching in a compact package
Variety of terminal styles available
Self-locking tabs to fit industry standard panel cut-outs
Mechanical life: min. 100,000 operations
Specifications
Attribute | Value |
---|---|
Contact Configuration | Double Pole Single Throw (DPST) |
Switch Operation | On-None-Off |
Panel Cut Out Width | 12.9mm |
Panel Cut Out Height | 19.3mm |
Contact Current Rating | 12 A @ 125 V ac |
Illuminated | Yes |
Actuator Colour | Red |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
AC Voltage Rating | 125 V, 250V |
Actuator Shape | Rectangular |
Panel Cut Out Size | 19.3 x 12.9mm |
Operating Temperature Range | -20 → +65°C |
Maximum Operating Temperature | +65°C |
Mechanical Life | 100000Operations |
Minimum Operating Temperature | -20°C |
Contact Material | Silver Alloy |
Contact Resistance | 20mΩ |
