- RS Stock No.:
- 440-6985
- Mfr. Part No.:
- SRB23A2BBBNN
- Brand:
- ZF
59 In AU stock for next working day delivery
878 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$2.38
(exc. GST)
$2.62
(inc. GST)
Units | Per unit |
1 + | $2.38 |
- RS Stock No.:
- 440-6985
- Mfr. Part No.:
- SRB23A2BBBNN
- Brand:
- ZF
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

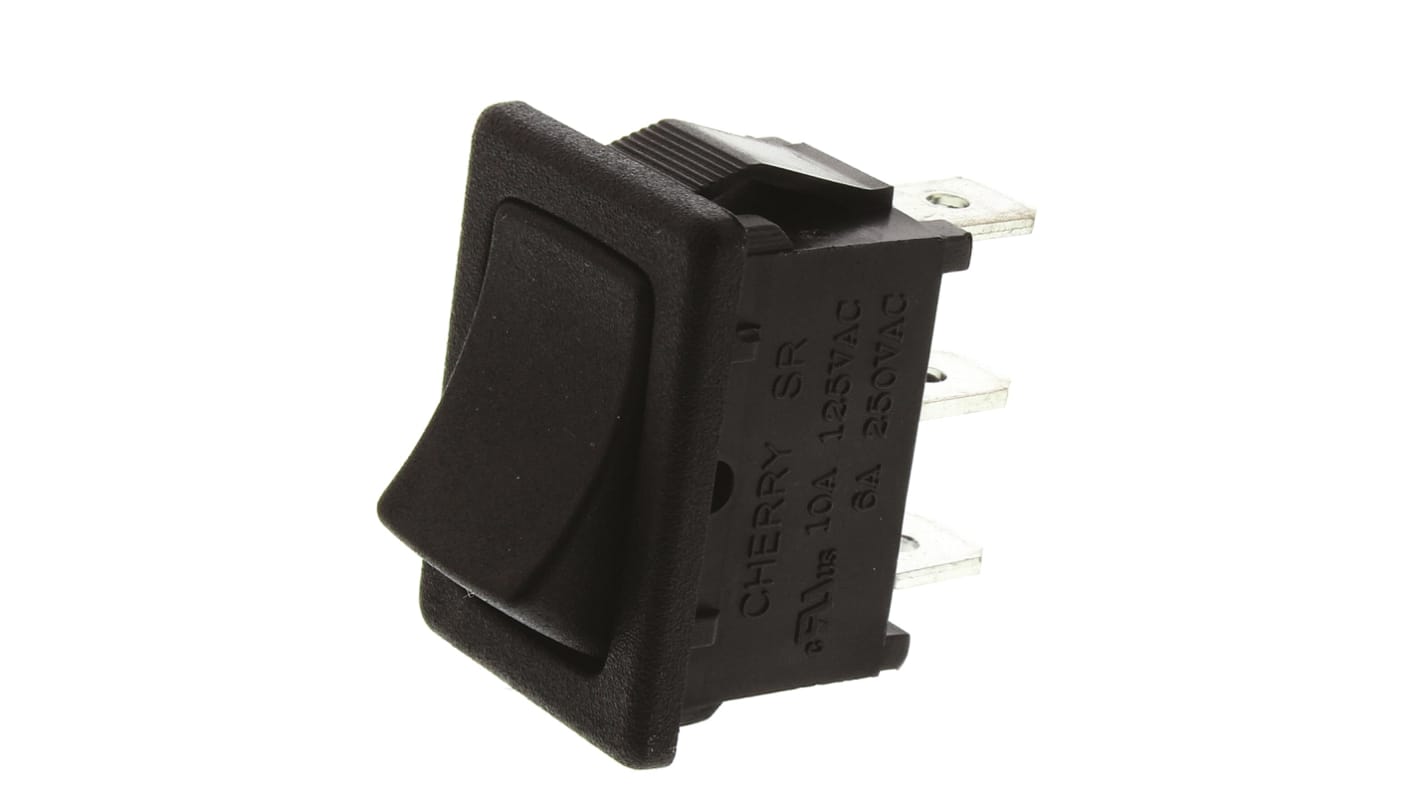

Cherry SR Series Miniature Rocker Switches
Cherry SR series miniature rocker switches offer a high switching current in a compact design. The SR series is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
Durable silver alloy contacts for long life at heavy loads
Industry-standard mounting dimensions
Mechanical life: min. 100,000 operations
Industry-standard mounting dimensions
Mechanical life: min. 100,000 operations
Approvals
VDE; UL; CSA
Approvals
VDE; UL; CSA
Specifications
Attribute | Value |
---|---|
Contact Configuration | Single Pole Double Throw (SPDT) |
Switch Operation | On-On |
Panel Cut Out Width | 12.9mm |
Panel Cut Out Height | 19.4mm |
Contact Current Rating | 10 A @ 250 V ac |
Illuminated | No |
Actuator Colour | Black |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Panel Cut Out Size | 19.4 x 12.9mm |
AC Voltage Rating | 125 V, 250V |
Actuator Shape | Rectangular |
Operating Temperature Range | -20 → +65°C |
Contact Resistance | 20mΩ |
Mechanical Life | 100000Operations |
Minimum Operating Temperature | -20°C |
Contact Material | Silver Copper Alloy |
Maximum Operating Temperature | +65°C |
