RS Pro Illuminated SPST, On-Off Rocker Switch Panel

  • RS Stock No. 419-782
  • Manufacturer RS Pro
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

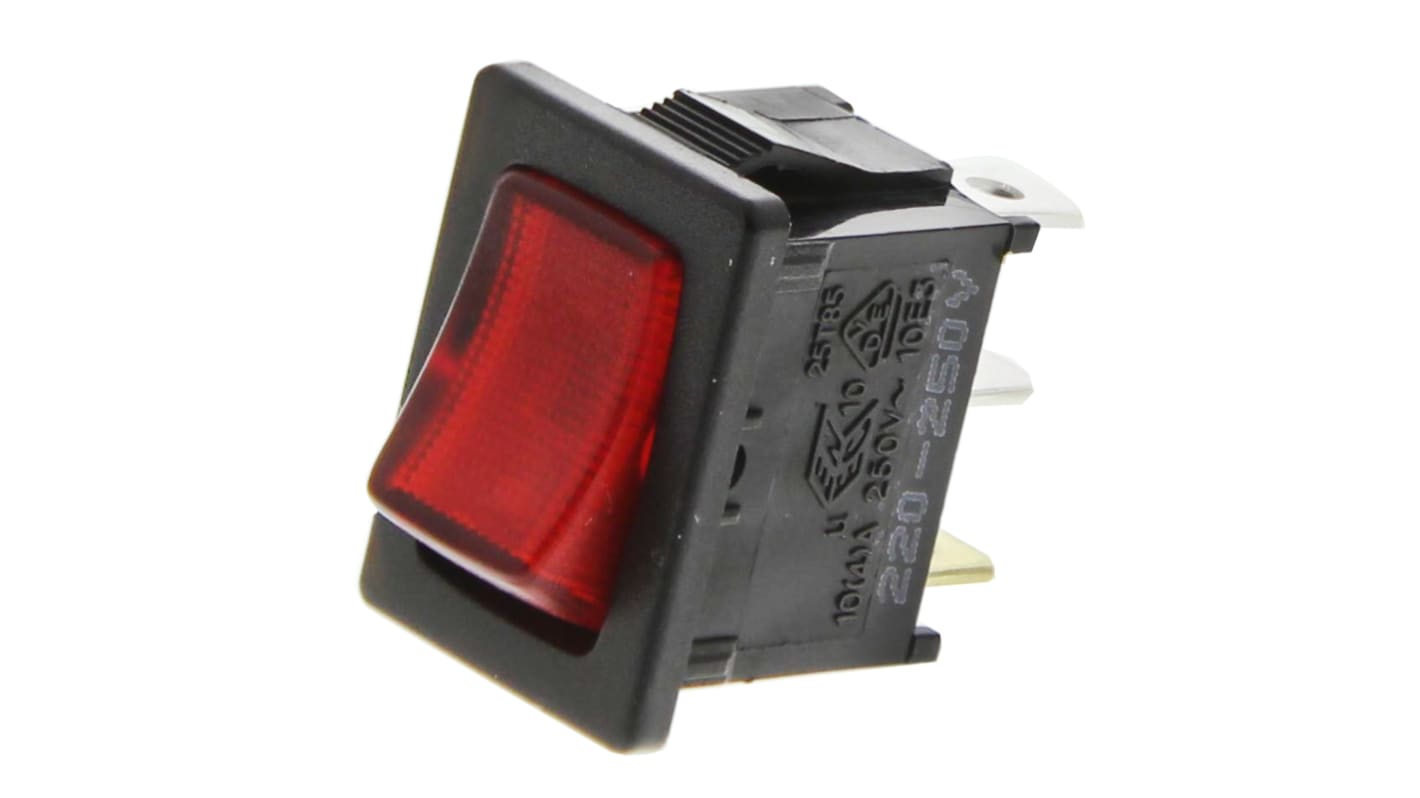

RS Miniature IIluminated Rocker Switches

Miniature SPST illuminated rocker switches, available in red or green
Panel cut out 19.2 x 13mm
Fitted with 4.8mm blade style terminals
Snap-in mounting, easy to install into panel
Nylon Housing to UL 94V-2 with silver plated brass terminals

Approvals

CSA, VDE, UR

//media.rs-online.com/t_line/L0419782-01.gif
Specifications
Attribute Value
Contact Configuration SPST
Switch Operation On-Off
Panel Cut Out Width 13mm
Panel Cut Out Height 19.2mm
Contact Current Rating 10 A @ 125 V ac
Illuminated Yes
Actuator Colour Red
Mounting Type Panel
Terminal Type Quick Connect
AC Voltage Rating 125 V, 250 V
Maximum Operating Temperature +85°C
Contact Resistance 50mΩ
Minimum Operating Temperature -20°C
Case Material Nylon
Contact Material Silver
Panel Cut Out Size 19.2 x 13mm
Operating Temperature Range -20 → +85°C
26 : Next working day (AU stock)
281 : 5 working days (Global stock)
Price (ex. GST) Each
$ 3.85
(exc. GST)
$ 4.23
(inc. GST)
units
Per unit
1 - 49
$3.85
50 - 99
$3.72
100 - 249
$3.48
250 - 499
$3.29
500 +
$3.14
