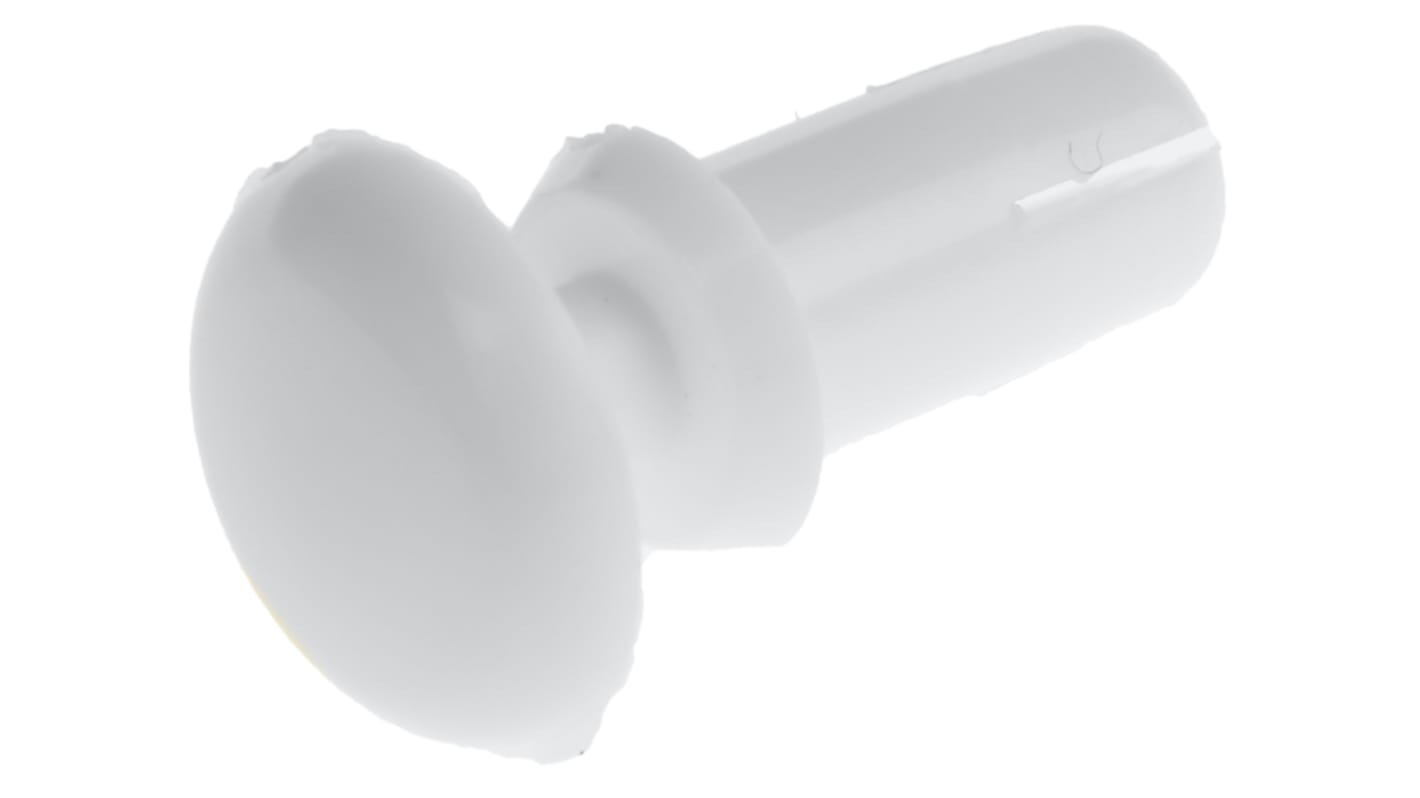

9mm White Plain Nylon Snap Rivet, 4mm diameter, 5.5 → 6.5 mm Thickness

  • RS Stock No. 280-975
  • Mfr. Part No. SR-4080W
  • Manufacturer Richco
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Plastic Snap-action Rivets

Two-part construction, re-useable, and require no fixing tools
Suitable for a wide range of light-duty fixing applications
Various sizes available to cover a panel thickness/gripping range of 1 to 8·5mm
Made from nylon 6, available in Black or White
Working temperature range -40°C to 85°C

//media.rs-online.com/t_line/L2259920-40.gif
//media.rs-online.com/t_line/L2259936-40.gif
Specifications
Attribute Value
Rivet Type Snap
Rivet Diameter 4mm
Rivet Length 9mm
Fixing Hole Diameter 4.2mm
Rivet Body Material Nylon
Mandrel Material None
Thickness of Material Minimum 5.5mm
Thickness of Material Maximum 6.5mm
Colour White
Finish Plain
