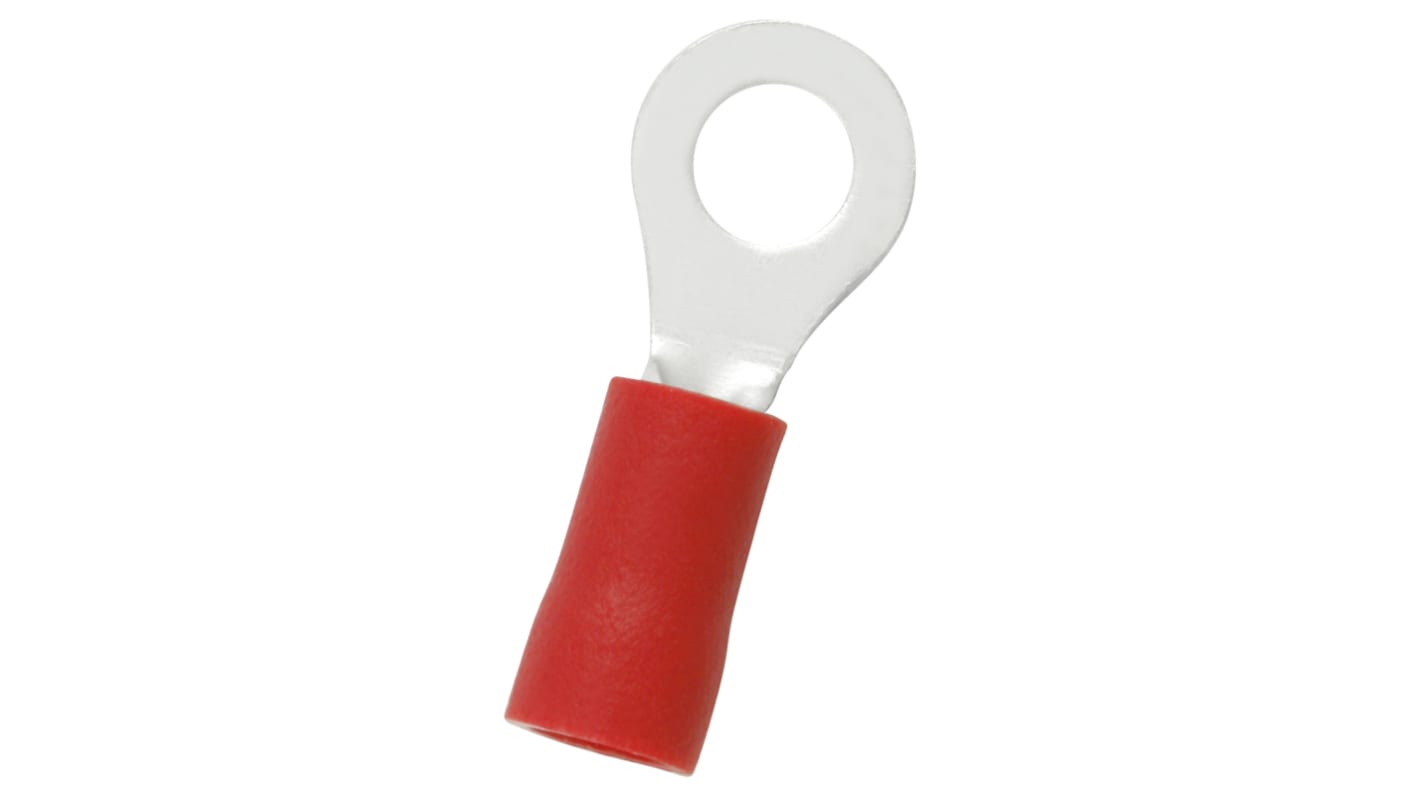

RS PRO Insulated Ring Terminal, 4.3mm Stud Size, 0.5mm² to 1.5mm² Wire Size, Red
- RS Stock No.:
- 178-8652
- Brand:
- RS PRO
1100 In Global stock for delivery within 5 working day(s)
800 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Bag of 100)
$0.115
(exc. GST)
$0.127
(inc. GST)
| Units | Per unit | Per Bag* |
| 100 - 900 | $0.115 | $11.50 |
| 1000 - 1900 | $0.113 | $11.30 |
| 2000 - 4900 | $0.109 | $10.90 |
| 5000 - 24900 | $0.106 | $10.60 |
| 25000 + | $0.088 | $8.80 |
| *price indicative | ||
- RS Stock No.:
- 178-8652
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The RS PRO Insulted ring has a outer ring diameter of 8mm and inner ring diameter of 4.3mm which comes with maximum 1.5mm² wire size connection. It is made up of high quality copper for contact material and Vinyl is used for insulation which comes with red in colour.
Stud Size 4.3mm
Colour Red
Contact Material Copper
Thickness 0.75mm
Overall Length 20.8mm
Colour Red
Contact Material Copper
Thickness 0.75mm
Overall Length 20.8mm
Specifications
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Outer Ring Diameter | 8mm |
| Inner Ring Diameter | 4.3mm |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Maximum Wire Size AWG | 16AWG |
| Minimum Wire Size AWG | 22AWG |
| Stud Size | 4.3mm |
| Colour | Red |
| Contact Material | Copper |
| Thickness | 0.75mm |
| Overall Length | 20.8mm |
| Maximum Operating Temperature | +105°C |
