TE Connectivity, STRATO-THERM Uninsulated Ring Terminal, M5 Stud Size, 1mm² to 2.6mm² Wire Size

RS Stock No.:: 170-9404
Mfr. Part No.:: 322335
Brand:: TE Connectivity

TE Connectivity, STRATO-THERM Uninsulated Ring Terminal, M5 Stud Size, 1mm² to 2.6mm² Wire Size

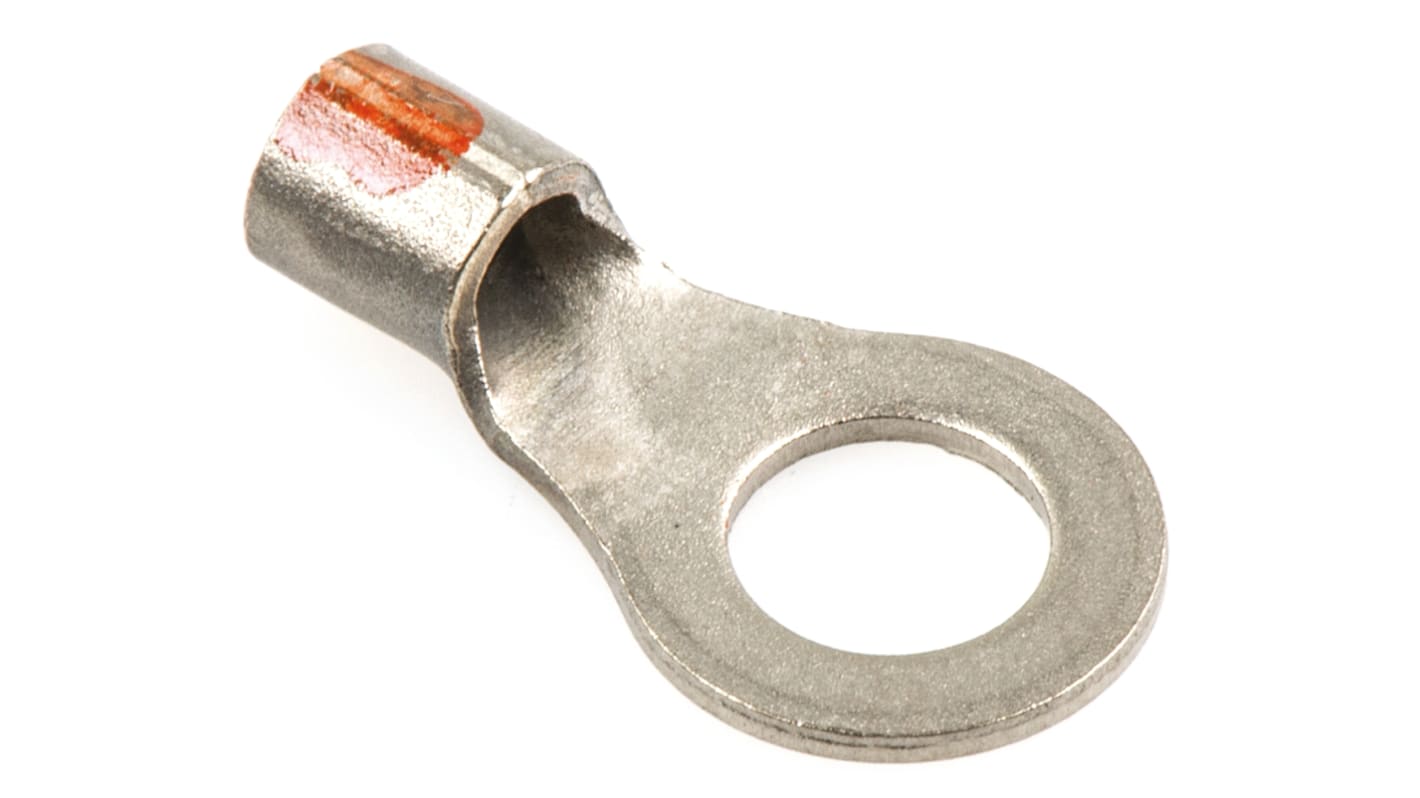

This image is representative of the product range

On back order for despatch 13/06/2024, delivery within 10 working days from despatch date.

Added

Price (ex. GST) 1 Box of 1000

$1,557.14

(exc. GST)

$1,712.85

(inc. GST)

Box(es)	Per Box	Per unit*
1 - 4	$1,557.14	$1.557
5 +	$1,401.43	$1.401
*price indicative

RS Stock No.:: 170-9404
Mfr. Part No.:: 322335
Brand:: TE Connectivity

Technical data sheets

0-0322335-0 Strato-Therm Ring Tongue Terminal Data Sheet

Legislation and Compliance

COO (Country of Origin):: US

Product Details

TE Connectivity SOLISTRAND STRATO-THERM High Temperature Ring Tongue Crimp Terminals

SOLISTRAND STRATO-THERM high temperature ring tongue crimp terminals for use where operating temperatures prevent standard insulated crimps being used. These STRATO-THERM high temperature ring tongue crimp terminals are made from solid nickel and designed to terminate solid and/or stranded conductors. When the terminal is crimped the wire inside is forced into the serrations or dimples of the barrel to maximise the electrical contact area after crimping. The maximum operating temperature for these STRATO-THERM high temperature ring tongue crimp terminals is 649°C (1200°F).

Note

For suitable hand crimp tool see stock number 162-3159

Approvals

TE Connectivity STRATO-THERM Terminals and Splices

Specifications

Attribute	Value
Series	STRATO-THERM
Insulation	Uninsulated
Outer Ring Diameter	8.71mm
Inner Ring Diameter	5mm
Maximum Wire Size mm²	2.6mm²
Minimum Wire Size mm²	1mm²
Maximum Wire Size AWG	14AWG
Minimum Wire Size AWG	16AWG
Stud Size	M5
Contact Material	Nickel
Overall Length	16.15mm
