Microchip MRF89XAM8A-I/RM Module

  • RS Stock No. 887-7211
  • Mfr. Part No. MRF89XAM8A-I/RM
  • Manufacturer Microchip
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TH
Product Details

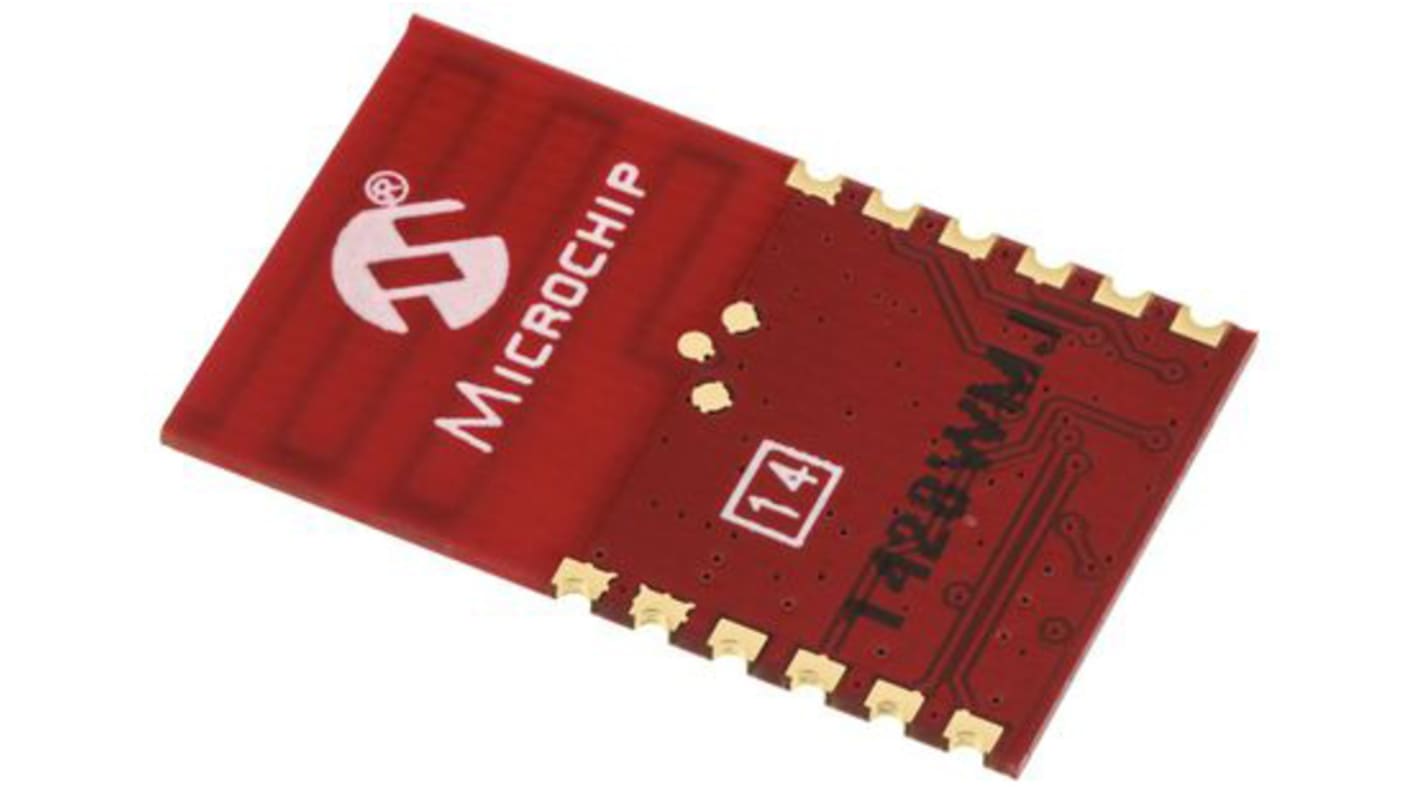

MRF89XAM8A 868MHz Transceiver Module

The MRF89XAM8A is a multi-channel FSK/OOK transceiver module operating in the 863-870MHz ISM frequency band. It is based on the Microchip MRF89XA single-chip RF transceiver.

RF Frequency Range: 863 to 870MHz ISM band
RF Output Power: +10dBm
Receiver Sensitivity: -107dBm @ 25kbps FSK
Modulation: FSK, OOK
OTA Data Rate: up to 40kbps
Supports packet handling, data whitening and automatic CRC generation
Supports Manchester encoding/decoding
Incoming sync word (pattern) recognition
Bit synchronizer for incoming data and clock synchronization/recovery
Supports proprietary sub-1GHz wireless protocols
Digital RSSI
64-byte Tx/Rx data FIFO
Host communication: serial SPI
Supports power-saving modes
PCB antenna
Power supply: +2.1 to +3.6Vdc
Operating temperature range: -40 to +85°C
Dimensions: 17.8 x 27.9 x 1.9mm
Supports MiWi™ development environment, proprietary wireless networking protocols
Applications: Home/Industrial Automation, Remote Control, Wireless PC Peripherals, Remote Keyless Entry, Vehicle Sensor Monitoring, Telemetry, Local communication for the Internet of Things (IoT)

RS Product Codes
772-9499 MRF89XAM8A-I/RM
887-7211 MRF89XAM8A-I/RM (Pack of 54)

RF Product Code for Device
754-5115 MRF89XAT-I/MQ

Approvals

ETSI

Wireless Modules - Microchip

Specifications
Attribute Value
Modulation Technique FSK, OOK
Dimensions 27.94 x 17.78 x 1.91mm
Height 1.91mm
Length 27.94mm
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
Width 17.78mm
2160 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each (In a Tray of 54)
$ 10.25
(exc. GST)
$ 11.27
(inc. GST)
units
Per unit
Per Tray*
54 +
$10.25
$553.50
*price indicative
