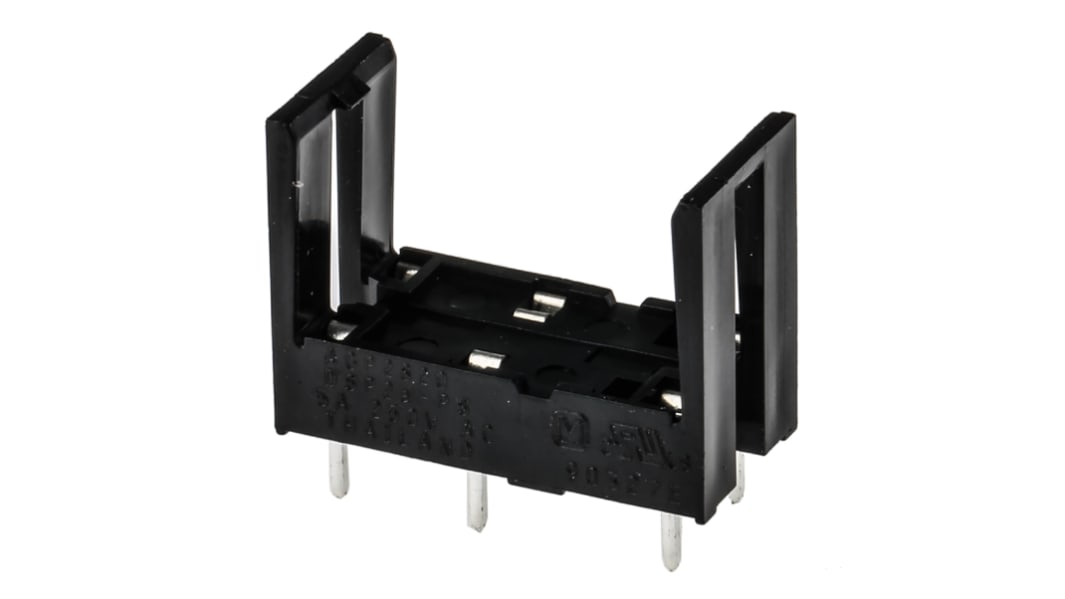

Panasonic DS-P 8 Pin 250V ac PCB Mount Relay Socket
- RS Stock No.:
- 173-8193
- Mfr. Part No.:
- DSP2APS
- Brand:
- Panasonic
On back order for despatch 17/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Box of 50)
$4.559
(exc. GST)
$5.015
(inc. GST)
| Units | Per unit | Per Box* |
| 50 - 50 | $4.559 | $227.95 |
| 100 - 150 | $4.445 | $222.25 |
| 200 + | $4.377 | $218.85 |
| *price indicative | ||
- RS Stock No.:
- 173-8193
- Mfr. Part No.:
- DSP2APS
- Brand:
- Panasonic
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
DSP Series Relay
These miniature PCB mount power relays have a high contact rating, high switching capability, high sensitivity and high breakdown voltage. A sealed construction allows automatic washing. Typical applications include office and industrial electronic devices, measuring instruments, temperature controllers and PLCs.
High switching capacity monostable relay in a DIL format
High breakdown voltage
High sensitivity
Sealed construction allows automatic washing
Miniature size, H10 x W20.2 x D11 mm
High breakdown voltage
High sensitivity
Sealed construction allows automatic washing
Miniature size, H10 x W20.2 x D11 mm
Note
Reverse polarity types have a part number with an R suffix
Approvals
UL, CSA, TÜV
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Voltage | 250V ac |
| Series | DS-P |
| Number of Contacts | 8 |
| Current Rating | 8A |
| Termination Type | PCB Pin |
| Mounting Type | PCB Mount |
