Hanna Instruments Sucrose Refractometer, +80 °C, 85 %Brix max, 0 %Brix, 0 °C min, Digital/Optical

Technical data sheets
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): RO
Product Details

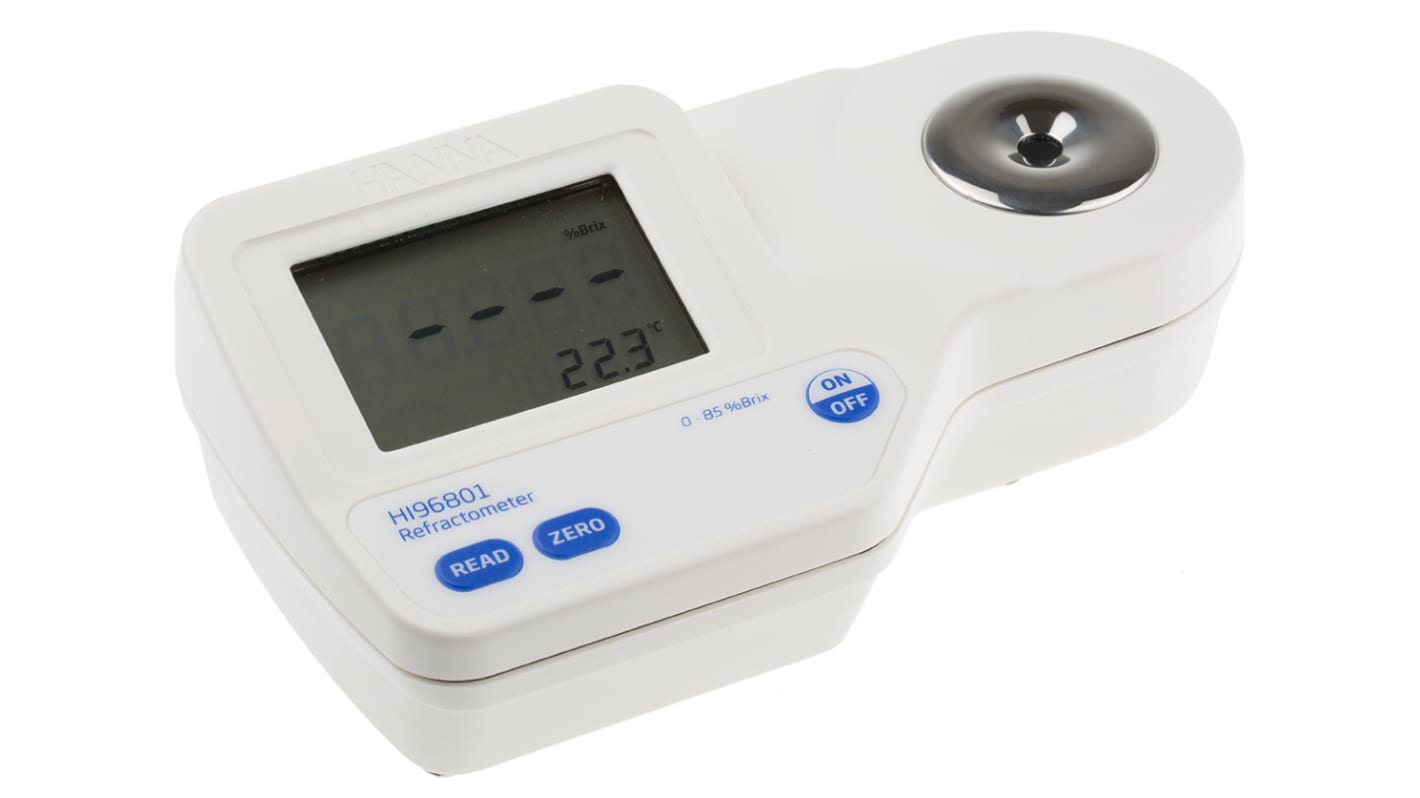

Hanna Digital Refractometer

Digital optical instrument that measures the refractive index of a sample to determine the concentration of a substance within a liquid, the result is automatically displayed in concentration units

Wide measurement range 0 to 85%
Quick, precise results in approximately 1.5 seconds
Automatic temperature compensation
Lightweight, portable instrument
IP65 Waterproof keyboard, display and case
Easy calibration using distilled or deionised water
Sample size down to 2 metric drops can be analysed
Battery operated with 3 minute auto off

    HI 96801 %Sugar HI 96802 % Fructose HI 96803 % Glucose HI 96804 % Invert Sugar
Range Sugar Content 0 to 85% Brix 0 to 85% (by weight) 0 to 85% (by weight) 0 to 85% (by weight)
  Temperature 0 to 80 °C 0 to 80 °C 0 to 80 °C 0 to 80 °C
Resolution Sugar Content ±0.1% Brix ±0.1% ±0.1% ±0.1 %
  Temperature ±0.1 °C ±0.1 °C ±0.1 °C ±0.1 °C
Accuracy Sugar Content ±0.2% Brix ±0.2% ±0.2% ±0.2%
  Temperature ±0.1 °C ±0.1 °C ±0.1 °C ±0.1 °C
Temperature compensation Automatic between 10 °C and 40 °C
Measurement Time 1.5 sec
Sample Cell Stainless steel ring and flint glass prism
Battery type / life 9V alkaline / 5000 readings
Dimension & weight 192 x 102 x 67mm : 420g
Specifications
Attribute Value
Refractometer Type Sucrose
Maximum Measurement +80 °C, 85 %Brix
Minimum Measurement 0 %Brix, 0 °C
Best Accuracy ±0.2 %Brix
Resolution 0.1 %Brix, 0.1 °C
Measurement Time 1.5s
Type Digital/Optical
Battery Type 9V
Battery Life 5000 Tests
Power Source Battery
Dimensions 192 x 104 x 69mm
Weight 420g
Height 69mm
Length 192mm
Width 104mm
Model Number p HI 96801
41 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 555.29
(exc. GST)
$ 610.82
(inc. GST)
units
Per unit
1 +
$555.29
