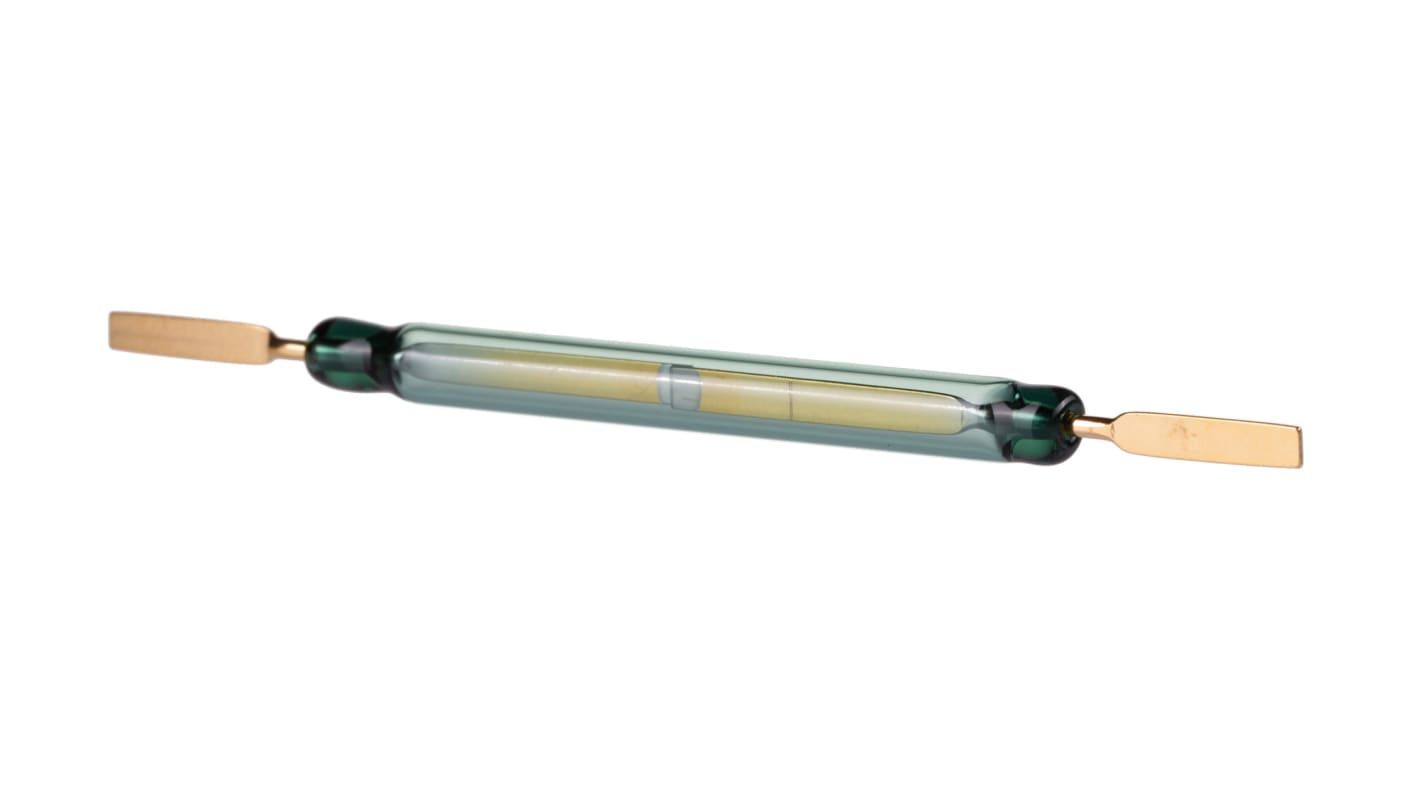

Sensata / Cynergy3 SPST Reed Switch, 1.3A 250V ac/dc
- RS Stock No.:
- 118-7035
- Mfr. Part No.:
- DRA200G/60-80
- Brand:
- Sensata / Cynergy3
52 In AU stock for next working day delivery
5 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$22.40
(exc. GST)
$24.64
(inc. GST)
| Units | Per unit |
| 1 - 19 | $22.40 |
| 20 - 99 | $22.17 |
| 100 - 249 | $21.80 |
| 250 - 499 | $21.44 |
| 500 + | $21.07 |
- RS Stock No.:
- 118-7035
- Mfr. Part No.:
- DRA200G/60-80
- Brand:
- Sensata / Cynergy3
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
Form A & C Reed Switches
Suitable for use with location sensors, proximity switches and level switches at low to medium voltages and current
Electrical Life 105 - 106 Switching Cycles
Mechanical Life 109 Operations
For suitable magnets, see stk. no 118-7108 typically
Electrical Life 105 - 106 Switching Cycles
Mechanical Life 109 Operations
For suitable magnets, see stk. no 118-7108 typically
Sensata Cynergy3 Reed Switch, 80VA Switching Power, Rhodium Contacts- DRA Series - DRA200G/60-80
Need a reliable way to control the flow of electricity in a circuit? Choose this reed switch from Sensata Cynergy3. It's actuated by a magnetic field that turns the current on and off. This component has a maximum switching power of 80VA for use in high-power systems. You can use a unit like this one in alarm systems, defibrillators and household appliances, as well as in larger applications such as electric vehicle charging points and surgical equipment.
Features & Benefits
• Maximum switching voltage of 250V AC/DC to support low to medium-voltage applications
• Rhodium contacts are highly durable to handle heavy loads
• Wide operating temperature range of -40°C to +150°C for use in demanding environments
• Low contact resistance of 80mΩ for a reliable connection
• Rhodium contacts are highly durable to handle heavy loads
• Wide operating temperature range of -40°C to +150°C for use in demanding environments
• Low contact resistance of 80mΩ for a reliable connection
How large is this reed switch?
This reed switch has compact dimensions of 79 (L) x 5.4mm (diameter), so it will take up minimal space in your setup.
What's the operating time of this reed switch?
This reed switch has a quick operating time of 4ms to ensure rapid switching.
Approvals
7777
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SP-NO |
| Maximum Switching Current | 1.3A |
| Maximum Switching Power | 80W |
| Maximum Switching Voltage | 250V ac/dc |
| Contact Resistance | 80mΩ |
| Contact Material | Rhodium |
| Maximum Release Time | 0.02ms |
| Operating Time Including Bounce | 4ms |
