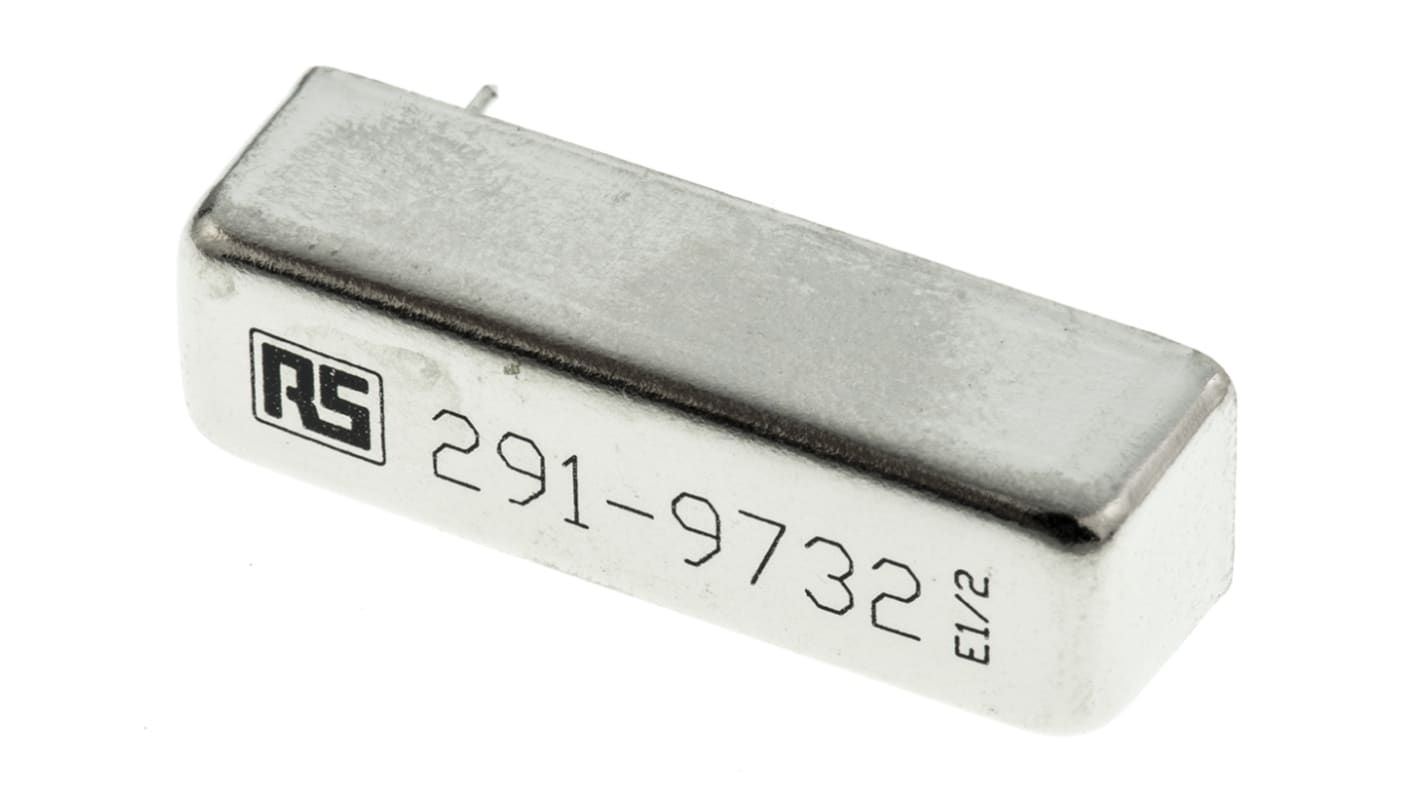

SPNO Reed Relay, 1 A, 24V dc

  • RS Stock No. 291-9732
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

SPNO Reed Relay B Series

Encapsulated in a nickel-plated steel case for magnetic screening
Mechanical Life : 108 Operations
Maximum switching current 1A

//media.rs-online.com/t_line/L346306-02.gif

Approvals

7777

Specifications
Attribute Value
Contact Configuration SPNO
Coil Voltage 24V dc
Mounting Type PCB Mount
Maximum Switching Current AC 1 A
Maximum Switching Current DC 1 A
Maximum Switching Voltage AC 200V ac
Maximum Switching Voltage DC 200V dc
Coil Power 73mW
Coil Resistance 7.845 kΩ
Length 31.8mm
Height 8.9mm
Depth 9.4mm
Dimensions 31.8 x 9.4 x 8.9mm
Isolation Coil To Contact 2kV dc
Contact Resistance 150 mΩ
Life 100000000 cycles
Contact Material Tin Plated Copper Alloy
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Maximum Switching Power DC 15 W
Terminal Type Through Hole
Standards Met RoHS Compliant
Operating Time Including Bounce 0.5ms
Operating Temperature Range -20 → +70°C
7 : Next working day (AU stock)
297 : 5 working days (Global stock)
Price (ex. GST) Each
Was $18.66
$ 13.63
(exc. GST)
$ 14.99
(inc. GST)
units
Per unit
1 - 24
$13.63
25 - 99
$13.30
100 - 249
$12.97
250 - 499
$12.60
500 +
$12.28
