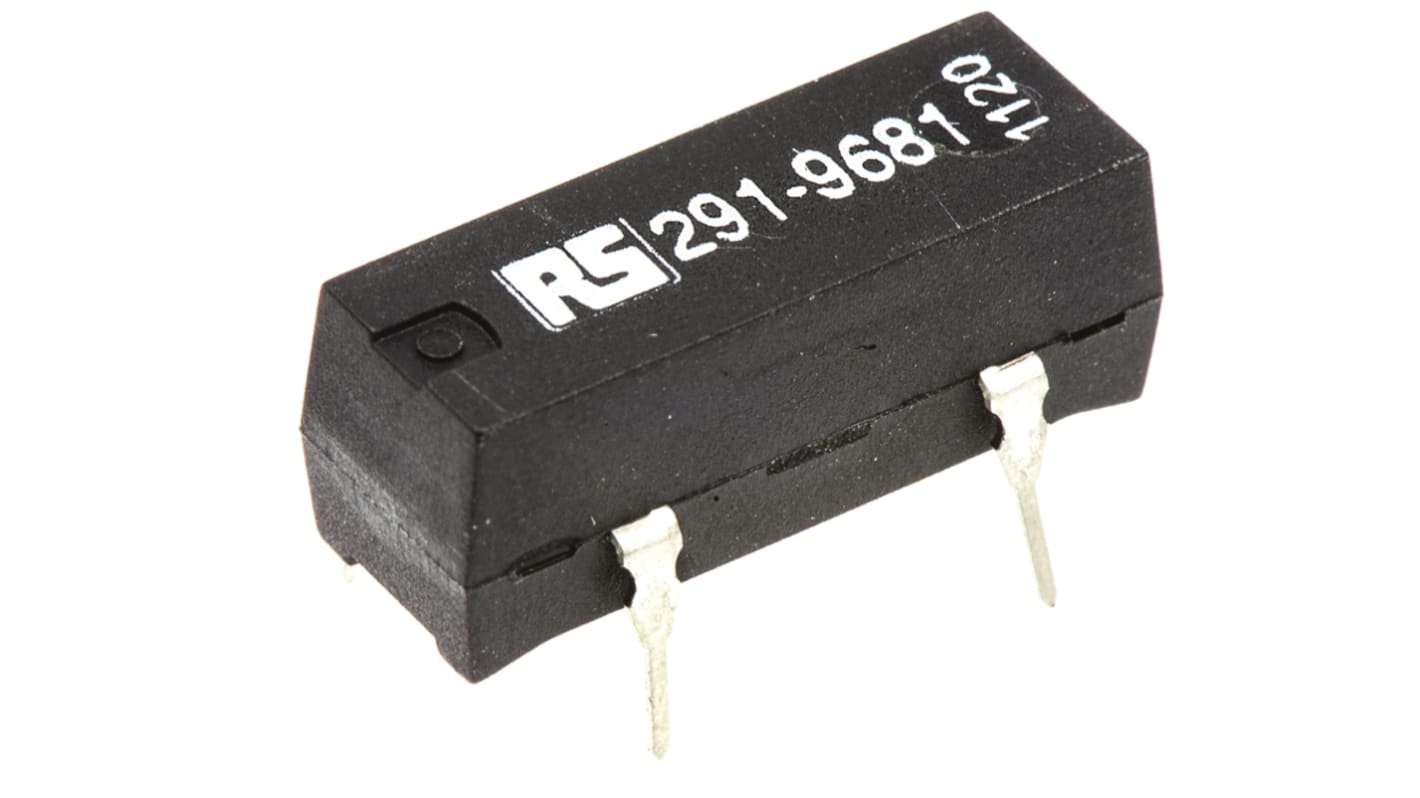

SPNO Reed Relay, 0.5 A, 12V dc

  • RS Stock No. 291-9681
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

SPNO DIL Relay

Ideal for use with mains triac trigger devices
Normally open contacts with 240V ac mains switching capability
Industry Standard pin configurations
Coil suppression diode across pins 2 and 6
Operating temperature -20 to +70°C

//media.rs-online.com/t_line/L348532-03.gif
//media.rs-online.com/t_line/L348532-05.gif

Approvals

UL

Specifications
Attribute Value
Contact Configuration SPNO
Coil Voltage 12V dc
Mounting Type PCB Mount
Maximum Switching Current AC 0.5 A
Maximum Switching Current DC 0.5 A
Maximum Switching Voltage AC 300V
Maximum Switching Voltage DC 300V dc
Coil Power 145mW
Coil Resistance 1 kΩ
Length 19.3mm
Height 7.5mm
Depth 7mm
Dimensions 19.3 x 7 x 7.5mm
Isolation Coil To Contact 2.5kV dc
Operating Time Including Bounce 0.5ms
Maximum Operating Temperature +70°C
Contact Resistance 200 mΩ
Contact Material Tin Plated Copper Alloy
Standards Met RoHS Compliant
Operating Temperature Range -20 → +70°C
Terminal Type Through Hole
Minimum Operating Temperature -20°C
Maximum Switching Power DC 10 W
274 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 8.87
(exc. GST)
$ 9.76
(inc. GST)
units
Per unit
1 - 24
$8.87
25 - 99
$8.64
100 - 249
$8.42
250 - 499
$8.19
500 +
$8.00
