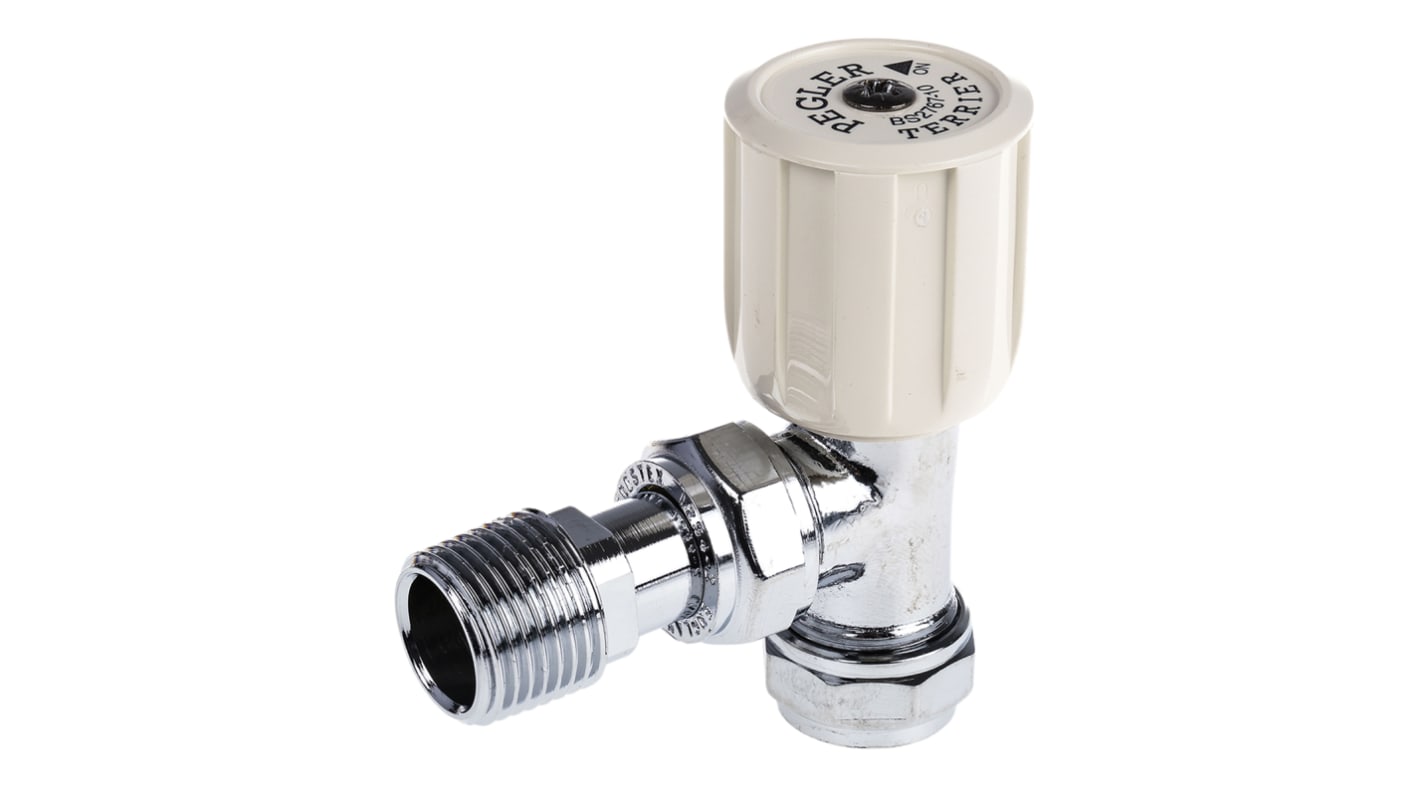

Thermostatic Radiator Valve Pegler Yorkshire 601028

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

Terrier Angle Pattern Radiator Valves

Lubricated long life gland packing. Glands can be removed without draining down
These valves are suitable for use with BS2871 Part 1 table X copper tube and approved alternatives
The male tail pipe connections are BS21 taper threaded with an external square for easy fitting into the radiator
BS2767-10 applies

//media.rs-online.com/t_line/L698865-01.gif

Approvals

7777

Standards

BS 2767-10; BS 2871 Part 1; BS 21

Radiator Valves

Chromium plated finished brass body with 15 mm compression x 1//2 in.BSP male connections Maximum Water Temperature 120°C.Working Pressure (Non-Shock) 10bar.

Specifications
Attribute Value
Connection 1 15 mm Compression
Connection 2 1/2 in BSP
Valve Type Angle
Body Material Chrome Plated Brass
Maximum Working Pressure 10 bar
Connection Size 1 15mm
Connection Size 2 1/2in
Thread Standard or Connection Type 2 BSP
23 In stock for delivery within 5 working day(s)
Price (ex. GST) Each
$ 13.40
(exc. GST)
$ 14.74
(inc. GST)
units
Per unit
1 - 4
$13.40
5 - 9
$12.75
10 - 24
$12.09
25 +
$11.48
