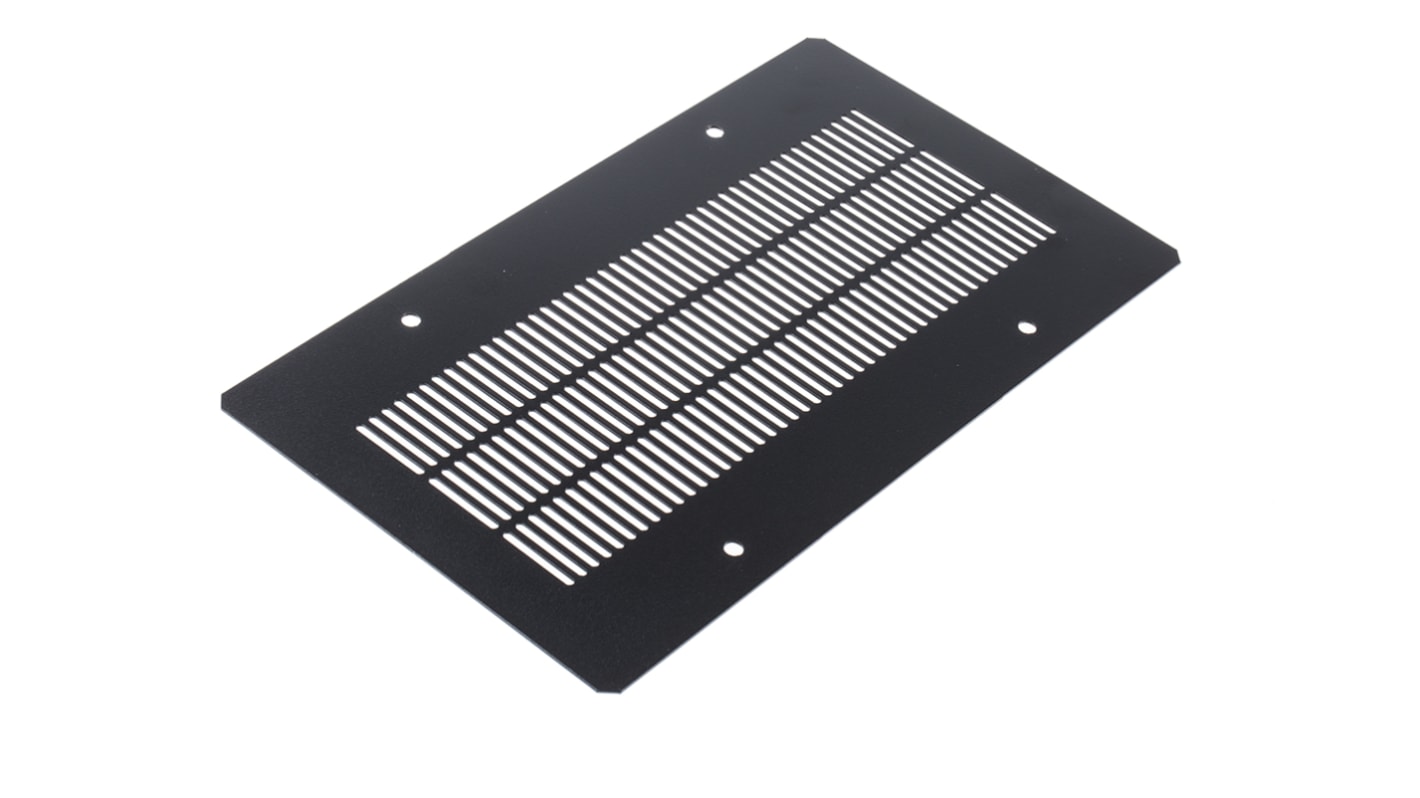

19-inch Ventilation Grill, Ventilated, Grey, Steel

  • RS Stock No. 774-3723
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TH
Product Details

19in. Wall Cabinet

A 19in. wall mountable enclosure made from high grade materials and designed to accommodate any standard 19in. equipment. The cabinet has two cable entry points on the top and bottom of the enclosure, plastic snap in panels cover these slots and can be conveniently removed. For additional security, the panels of this 19in. enclosure can be replaced by a metal plate secured from the inside of the cabinet. The large opening in the cabinet usually used for fan trays or filler panels can be used for cable entry. The fully adjustable vertical mounting rails of this wall mount enclosure allow for precise configuration of the equipment.

Features and benefits

The wall cabinet will support loads up to 50kg (load will vary depending on wall construction)
Additional depth can be obtained by installation of our extension kits
Reversible doors permit left or right hand installation
Cable openings are provided on the top and bottom panels, plastic snap in panels cover these slots and can be easily removed
Ventilation slots on the side panels and an opening on the top of the enclosure for ventilation
Mounts directly to the wall via four removable brackets, there is a single 19in. mounting rail built in to the front frame
Lockable doors and internally secured panels

Application

Wall mount server cabinets are an excellent choice for installing servers, telecom and network equipment where space is limited, allowing you to install the cabinet to a wall or similar surface. They are ideal for a range of environments such as:

  • Home

  • Office

  • Wiring cupboard

  • Training room

FAQs

What sizes are available?

This range of wall mountable server cabinets are available in the following sizes:

  • 7743690: 19-inch cabinet, wall mount, 6U

  • 7743694: 19-inch cabinet, wall mount, 9U

  • 7743704: 19-inch cabinet, wall mount, 12U

What accessories are compatible?

  • 7743713: 19-inch cabinet extension kit, 6U

  • 7743717: 19-inch cabinet extension kit, 9U

  • 7743726: 19-inch cabinet extension kit, 12U

  • 7743729: 19-inch cabinet blank panel

  • 7743723: 19-inch cabinet vented panel

Standards

Conforms to EIA310-E Type A, IEC-60297-2.

Specifications
Attribute Value
Type Ventilation Grill
Ventilated Yes
Colour Grey
Material Steel
Dimensions 320 x 177mm
Length 320mm
Width 177mm
9 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
Was $14.10
$ 13.57
(exc. GST)
$ 14.93
(inc. GST)
units
Per unit
1 +
$13.57
