- RS Stock No.:
- 811-8376
- Brand:
- RS PRO
4 In AU stock for next working day delivery
79 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
Was $38.60
You pay
$32.81
(exc. GST)
$36.09
(inc. GST)
Units | Per unit |
1 - 9 | $32.81 |
10 - 49 | $31.16 |
50 - 99 | $29.60 |
100 - 499 | $28.12 |
500 + | $26.71 |
- RS Stock No.:
- 811-8376
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

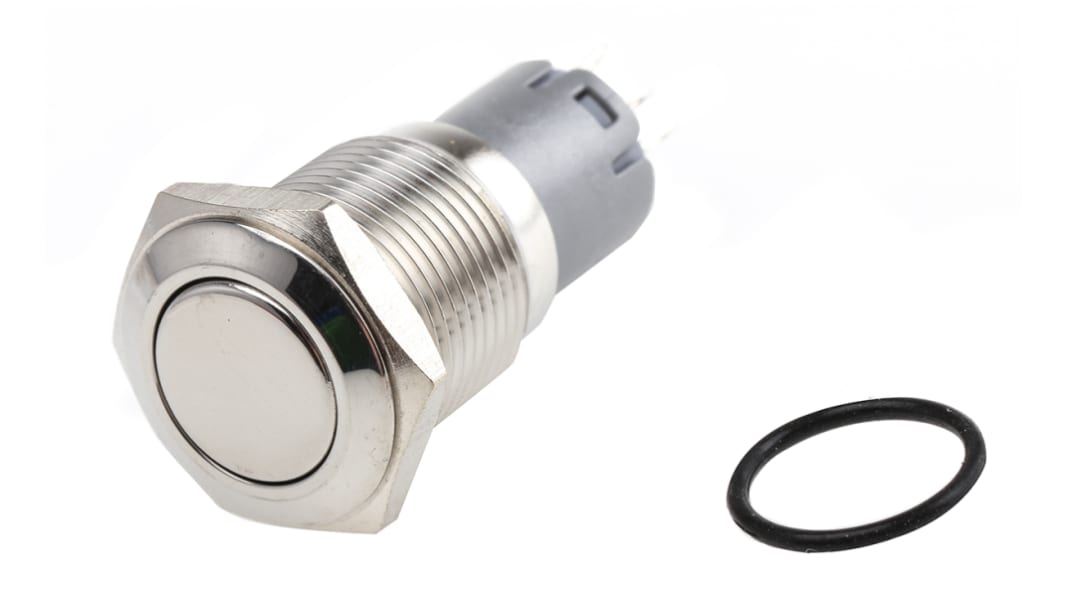

RS PRO Single Pole Double Throw (SPDT) Latching Push Button Switch, IP65, IP67, 16 mm Diameter, Panel Mounting, 250 V AC
You can use this latching push-button switch from RS PRO if you need a simple, reliable way to activate your electrical equipment. It's intended as an anti-vandal switch, so it will effectively resist any damage from physical attacks.
The switch is made of polished stainless steel material and it has silver-plated copper alloy contacts. This means the part is strong and resistant to rust and corrosion. A wide operating temperature range of -20°C to +55°C means you can install it in demanding environments, from large industrial freezers to hot power plants. A switch like this one is often used on public intercom panels outside of building doorways. This product has been tested by engineers for safety and quality.
The switch is made of polished stainless steel material and it has silver-plated copper alloy contacts. This means the part is strong and resistant to rust and corrosion. A wide operating temperature range of -20°C to +55°C means you can install it in demanding environments, from large industrial freezers to hot power plants. A switch like this one is often used on public intercom panels outside of building doorways. This product has been tested by engineers for safety and quality.
Features and Benefits
• Chrome actuator colour
• Flat actuator shape
• Plunger actuator type
• Single Pole Double Throw (SPDT) contact configuration
• Contact voltage rating of 250 V AC
• Contact current rating of 3 A at 250 V AC
• Voltage rating of 250 V AC
• Ingress Protection (IP) rating of IP65 and IP67
• Panel mounting
• Panel cut out size of 16 mm (diameter)
• Latching switch operation
• Solder terminal type
• Not illuminated
• Flat actuator shape
• Plunger actuator type
• Single Pole Double Throw (SPDT) contact configuration
• Contact voltage rating of 250 V AC
• Contact current rating of 3 A at 250 V AC
• Voltage rating of 250 V AC
• Ingress Protection (IP) rating of IP65 and IP67
• Panel mounting
• Panel cut out size of 16 mm (diameter)
• Latching switch operation
• Solder terminal type
• Not illuminated
Specifications
Attribute | Value |
---|---|
Switch Operation | Latching |
Illuminated | No |
Panel Cut Out Diameter | 16mm |
Mounting Type | Panel Mount |
Push Button Colour | Chrome |
Contact Configuration | SPDT |
Voltage Rating | 250V ac |
Push Button Style | Round |
IP Rating | IP65, IP67 |
Contact Current Rating | 3 A @ 250 V ac |
Contact Material | Sliver Alloy |
Contact AC Voltage Rating | 250V |
Manufacturer Part No. | AV03-B32-M3-R |
Terminal Type | Solder |
