- RS Stock No.:
- 195-9473
- Mfr. Part No.:
- UB15KKG015F
- Brand:
- NKK Switches
3 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each
$15.99
(exc. GST)
$17.59
(inc. GST)
Units | Per unit |
1 + | $15.99 |
- RS Stock No.:
- 195-9473
- Mfr. Part No.:
- UB15KKG015F
- Brand:
- NKK Switches
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details

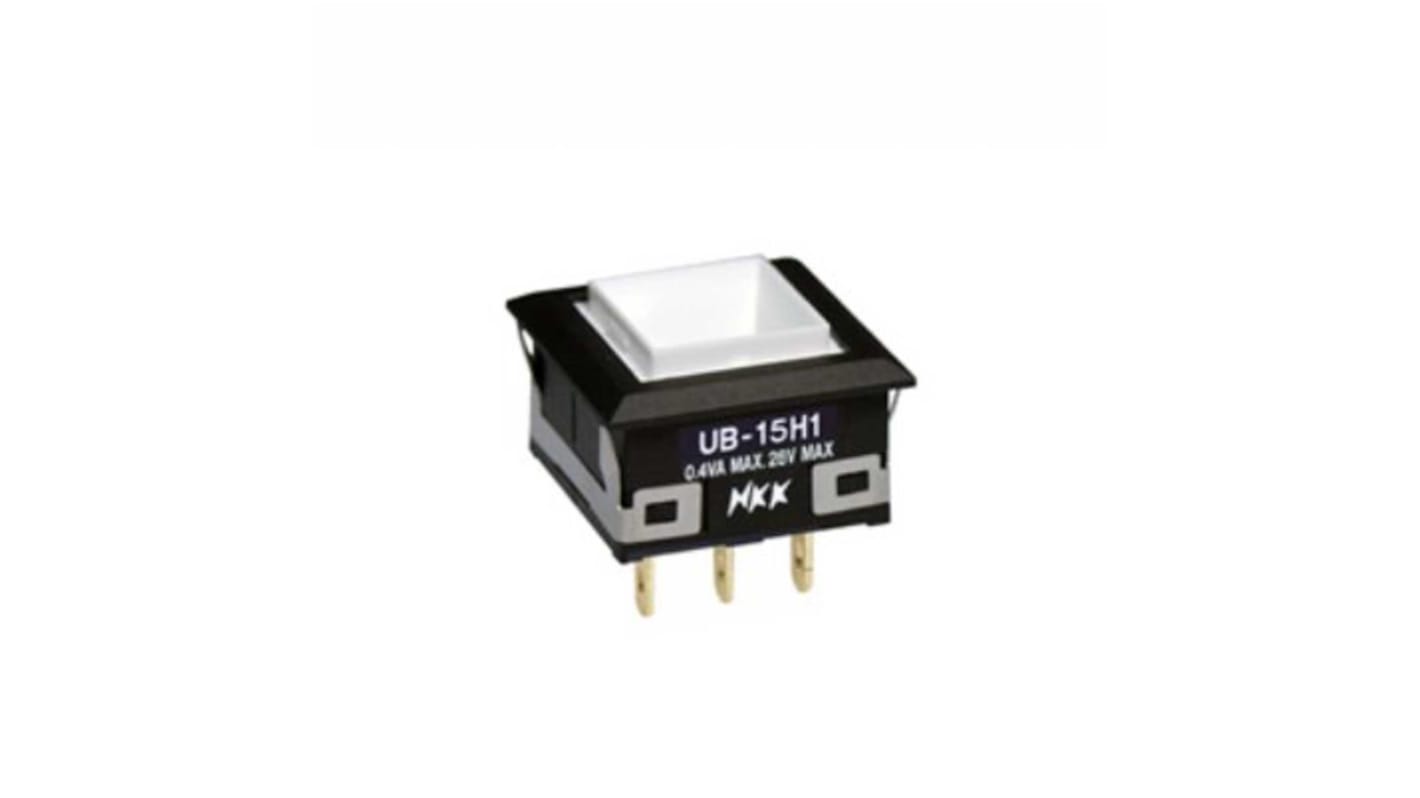

The NKK Switches push button SPDT switch has On-(On) circuit configuration belongs to UB series. Phosphor bronze with silver and gold plating terminals are used for switch terminals and brass with silver plating for lamp terminals.
Combination of PCB mountability and short body allows use in compact application
Small behind panel dimensions for snap in mounting in a tight spaces
latch down mechanism, independent of switching mechanism, gives visible and tactile indication of circuit status
Terminals are epoxy sealed to lock out flux, solvents, and after contaminants.
Small behind panel dimensions for snap in mounting in a tight spaces
latch down mechanism, independent of switching mechanism, gives visible and tactile indication of circuit status
Terminals are epoxy sealed to lock out flux, solvents, and after contaminants.
Specifications
Attribute | Value |
---|---|
Switch Operation | On-(On) |
Illuminated | Yes |
Mounting Type | Panel Mount |
Contact Configuration | SPDT |
Voltage Rating | 28 V, 28V |
LED Colour | Green |
Manufacturer Part No. | UB15KKG015F |
