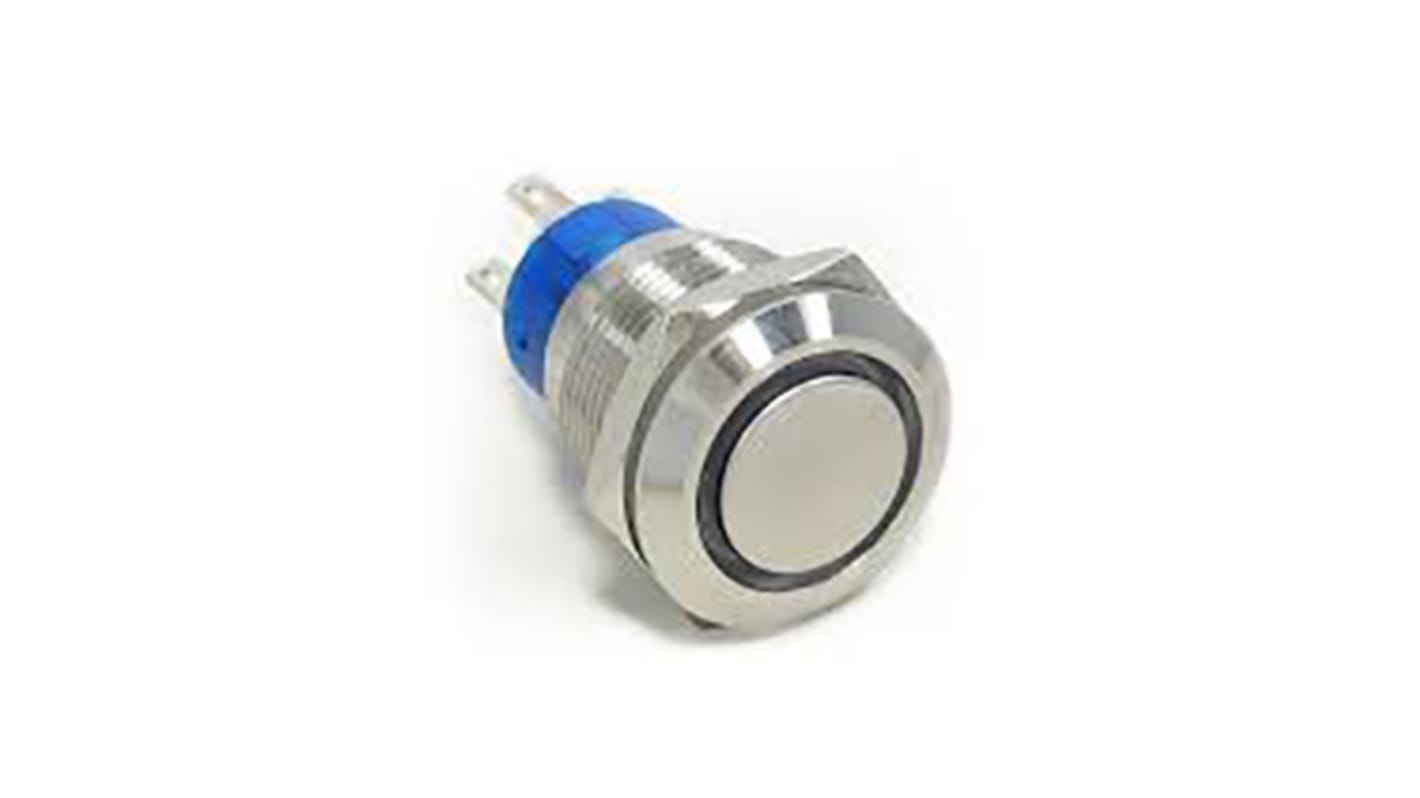

Double Pole Double Throw (DPDT) Latching Push Button Switch, IP67, Panel Mount, 250V ac

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

TE Connectivity AV22 Series Anti Vandal Switches

TE Alcoswitch anti-vandal switches have been designed with industrial security & reliability in mind. The AV22 series are a 22 mm panel-mounting product, available in a variety of combinations such as momentary & latching, with optional LED indication. The TE Alcoswitch series provides a long-lasting and premium user interface solution for your panel mounting applications.

Features and Benefits

Provides a highly customisable vandal-proof product with premium look & feel.
Vandal-proof design with rear mounting jam nut.
Various pushbutton symbols including plain, ring & power logo.


Typical Applications include:

Control & communications equipment.
Elevators & escalators.
Instrumentation equipment.

Standards

RoHS, REACH & UL Approved

Specifications
Attribute Value
Switch Operation Latching
Mounting Type Panel Mount
Illuminated Yes
Contact Configuration Double Pole Double Throw (DPDT)
Panel Cut Out Diameter 22.2mm
LED Colour Green
IP Rating IP67
Actuator Colour Silver
Voltage Rating 250V ac
Contact Current Rating 3 A
Actuator Shape Round
Terminal Type Wire Lug
Actuator Type Push Button
Contact AC Voltage Rating 250V
Case Colour Silver
On back order for despatch 29/09/2020, delivery within 5 working days from despatch date.
Price (ex. GST) Each (In a Bag of 100)
$ 23.30
(exc. GST)
$ 25.63
(inc. GST)
units
Per unit
Per Bag*
100 +
$23.30
$2,330.00
*price indicative
