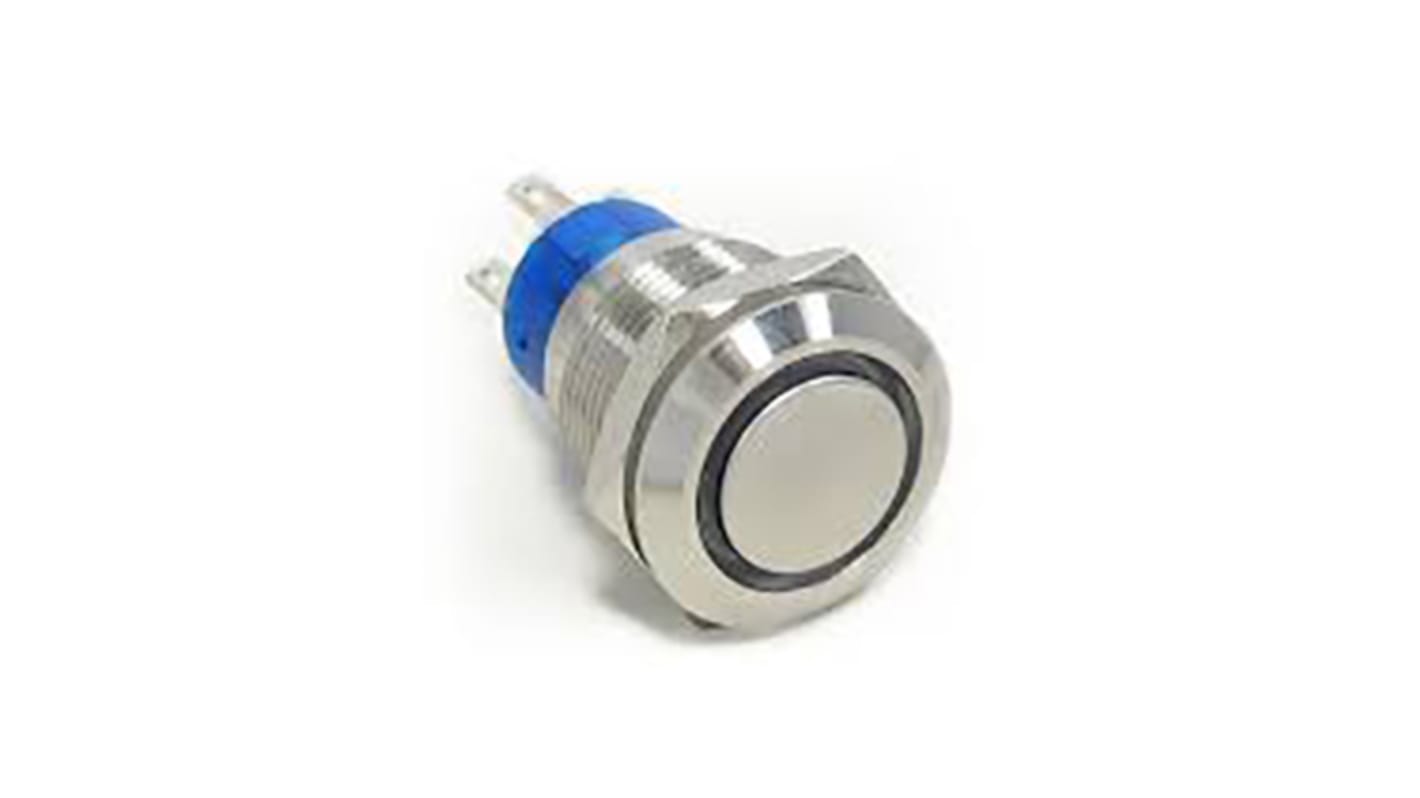

TE Connectivity Illuminated Push Button Switch, Latching, Panel Mount, 22.2mm Cutout, DPDT, White LED, 250V ac, IP67
- RS Stock No.:
- 163-9274
- Mfr. Part No.:
- AV2221E124Q04
- Brand:
- TE Connectivity
Available for back order.
Added
Price (ex. GST) Each (In a Bag of 100)
$27.276
(exc. GST)
$30.004
(inc. GST)
| Units | Per unit | Per Bag* |
| 100 - 400 | $27.276 | $2,727.60 |
| 500 + | $24.549 | $2,454.90 |
| *price indicative | ||
- RS Stock No.:
- 163-9274
- Mfr. Part No.:
- AV2221E124Q04
- Brand:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
TE Connectivity AV22 Series Anti Vandal Switches
TE Alcoswitch anti-vandal switches have been designed with industrial security & reliability in mind. The AV22 series are a 22 mm panel-mounting product, available in a variety of combinations such as momentary & latching, with optional LED indication. The TE Alcoswitch series provides a long-lasting and premium user interface solution for your panel mounting applications.
Features and Benefits
Provides a highly customisable vandal-proof product with premium look & feel.
Vandal-proof design with rear mounting jam nut.
Various pushbutton symbols including plain, ring & power logo.
Typical Applications include:
Control & communications equipment.
Elevators & escalators.
Instrumentation equipment.
Provides a highly customisable vandal-proof product with premium look & feel.
Vandal-proof design with rear mounting jam nut.
Various pushbutton symbols including plain, ring & power logo.
Typical Applications include:
Control & communications equipment.
Elevators & escalators.
Instrumentation equipment.
Standards
RoHS, REACH & UL Approved
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Switch Operation | Latching |
| Illuminated | Yes |
| Panel Cut Out Diameter | 22.2mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Silver |
| Contact Configuration | DPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| LED Colour | White |
| IP Rating | IP67 |
| Contact Current Rating | 3 A |
| Contact Material | Copper |
| Contact AC Voltage Rating | 250V |
| Manufacturer Part No. | AV2221E124Q04 |
| Case Colour | Silver |
| Terminal Type | Wire Lug |
