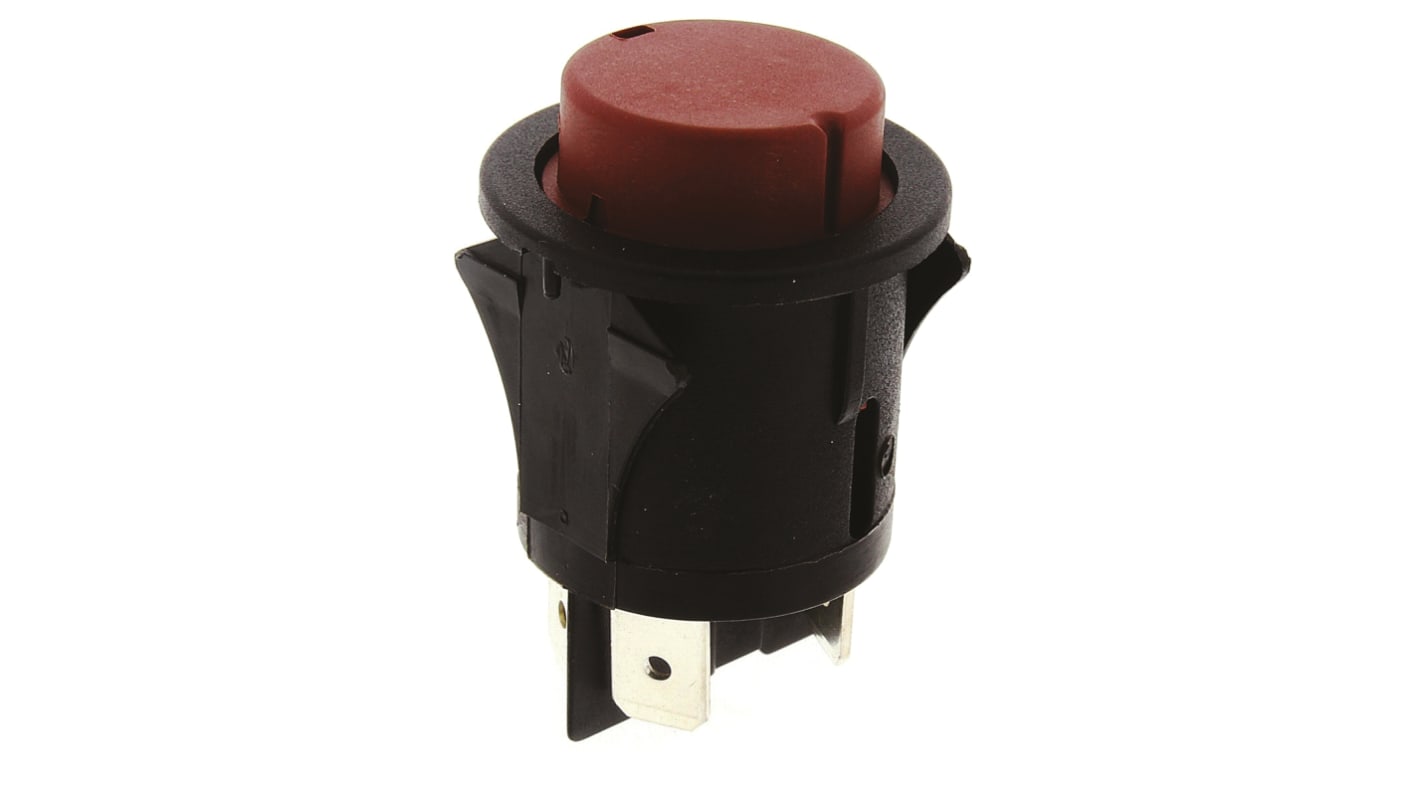

2-pole on-off switch Momentary Push Button Switch, Panel Mount

  • RS Stock No. 319-354
  • Mfr. Part No. SP6017C100000
  • Manufacturer Molveno
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Raised Illuminated and non-illuminated Pushbutton Switches

Silver contacts
Self-extinguishing thermoplastic UL94V-2
Contact Rating 16A @ 250V a.c. (Approved to 10A @ 250 V)
Mechanical Life: >105 operations
Dimensions: Depth behind panel 34mm, max. panel thickness 2.5, panel cut-out 25mm

Note

Coloured caps for non-illuminated switches must be ordered separately

Specifications
Attribute Value
Switch Operation Momentary
Mounting Type Panel Mount
Contact Configuration Double Pole Double Throw (DPDT)
Panel Cut Out Size 25 (Dia.)mm
Panel Cut Out Diameter 25mm
Actuator Colour Red
Contact Current Rating 16 A @ 250 V ac
Actuator Shape Round
Terminal Type Tab
Actuator Type Button
37 : Next working day (AU stock)
167 : 5 working days (Global stock)
Price (ex. GST) Each
$ 9.47
(exc. GST)
$ 10.42
(inc. GST)
units
Per unit
1 - 9
$9.47
10 - 49
$9.31
50 - 99
$9.06
100 - 249
$8.81
250 +
$8.59
