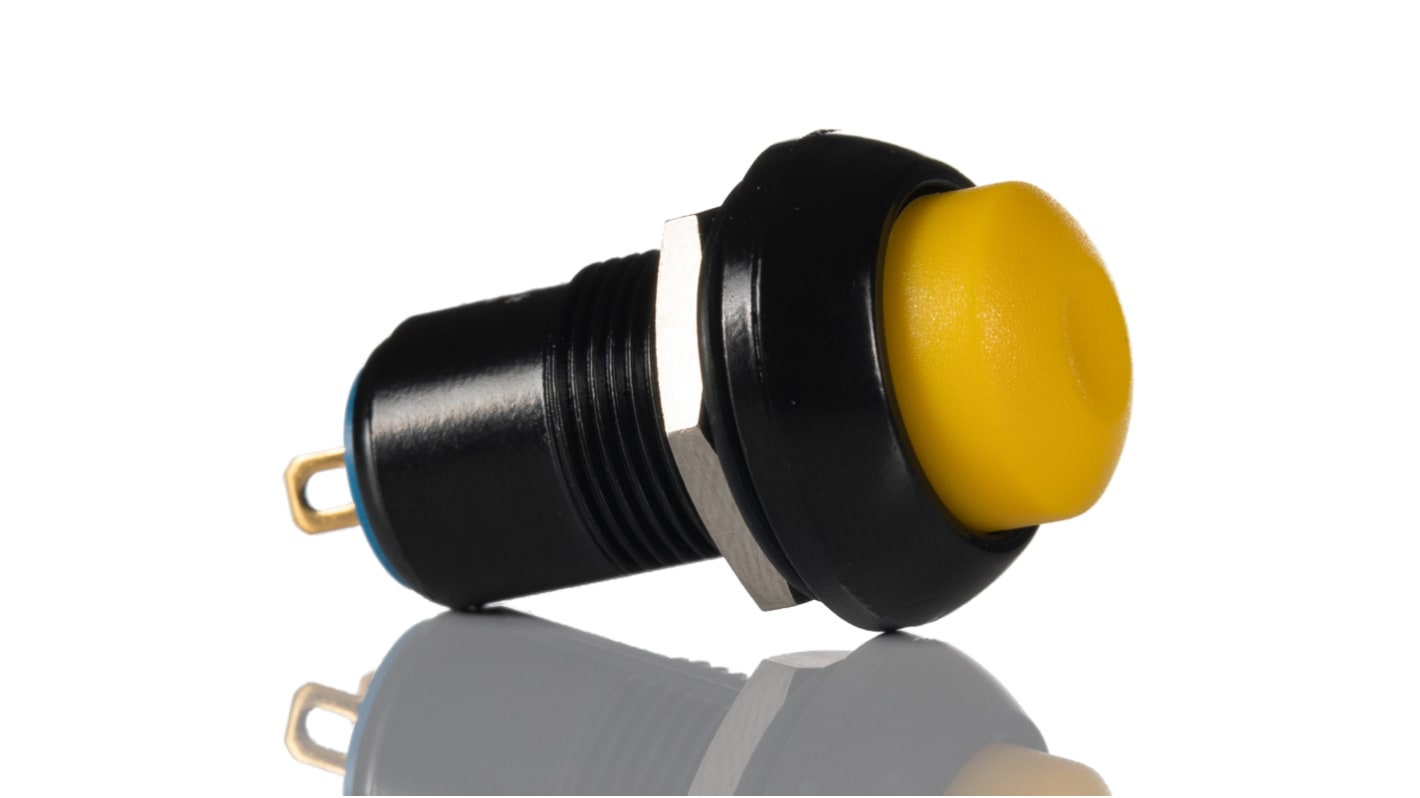

Off-On Push Button Switch, IP67, Panel Mount

  • RS Stock No. 223-919
  • Mfr. Part No. IPR1SAD5104
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Sealed pushbutton switches IP 67 high plunger Series IP – lug terminals, ø 12mm bushing

For harsh environments.
Resistant to salt spray
.Very robust: IK06.
Excellent touch feedback.
Momentary or latching action.

Standards

EN 50102 - IEC 512-4 - IEC 512-6

//media.rs-online.com/t_line/LF499448-01.gif
//media.rs-online.com/t_line/LF499451-01.gif
Specifications
Attribute Value
Switch Operation Latching
Mounting Type Panel Mount
Illuminated Yes
Panel Cut Out Size 13.6 (Dia.)mm
Panel Cut Out Diameter 13.6mm
IP Rating IP67
Actuator Colour Yellow
Voltage Rating 28V dc
Contact Current Rating 5 A @ 28 V dc
Actuator Shape Dome
Terminal Type Solder
Actuator Type Plunger
43 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 16.91
(exc. GST)
$ 18.60
(inc. GST)
units
Per unit
1 - 4
$16.91
5 - 9
$16.48
10 - 24
$16.05
25 - 49
$15.61
50 +
$15.21
