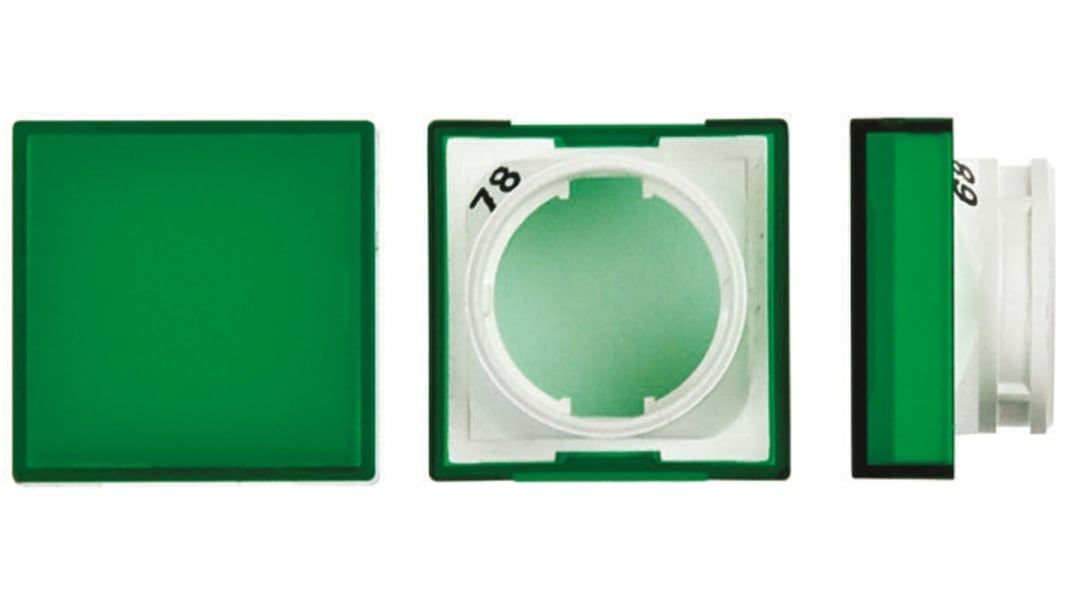

Green Square Push Button Lens for use with A16 Series LED/Incandescent Lamp Push Button Switch

  • RS Stock No. 610-7034
  • Mfr. Part No. A165L-AG
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): JP
Product Details

Lenses - A16 Range

Omron 16mm Diameter Cut Out - 230Vac Rated

Modular construction (case + contact or indicator block + lens + lamp)
Easy, snap-together assembly
IP65 sealed
Conforms to EN60943-5-1, IEC947-5-1

Contact rating 3A @ 30Vdc
  3A @ 250Vac
  5A @ 125Vac
Insulation resistance 100MΩ 500Vdc
Electrical life ≥105 operations
Operating temperature range -10°C to 55°C
Panel cut-out 16 to 16.2mm
Depth behind panel 28.5mm
Lens sizes 18x24, 18 dia. and 18x18mm
Specifications
Attribute Value
Accessory Type Lens
For Use With A16 Series LED/Incandescent Lamp Push Button Switch
Lens Colour Green
Lens Shape Square
55 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Pack of 5)
$ 2.698
(exc. GST)
$ 2.968
(inc. GST)
units
Per unit
Per Pack*
5 - 45
$2.698
$13.49
50 - 245
$2.63
$13.15
250 - 495
$2.56
$12.80
500 - 1245
$2.492
$12.46
1250 +
$2.428
$12.14
*price indicative
