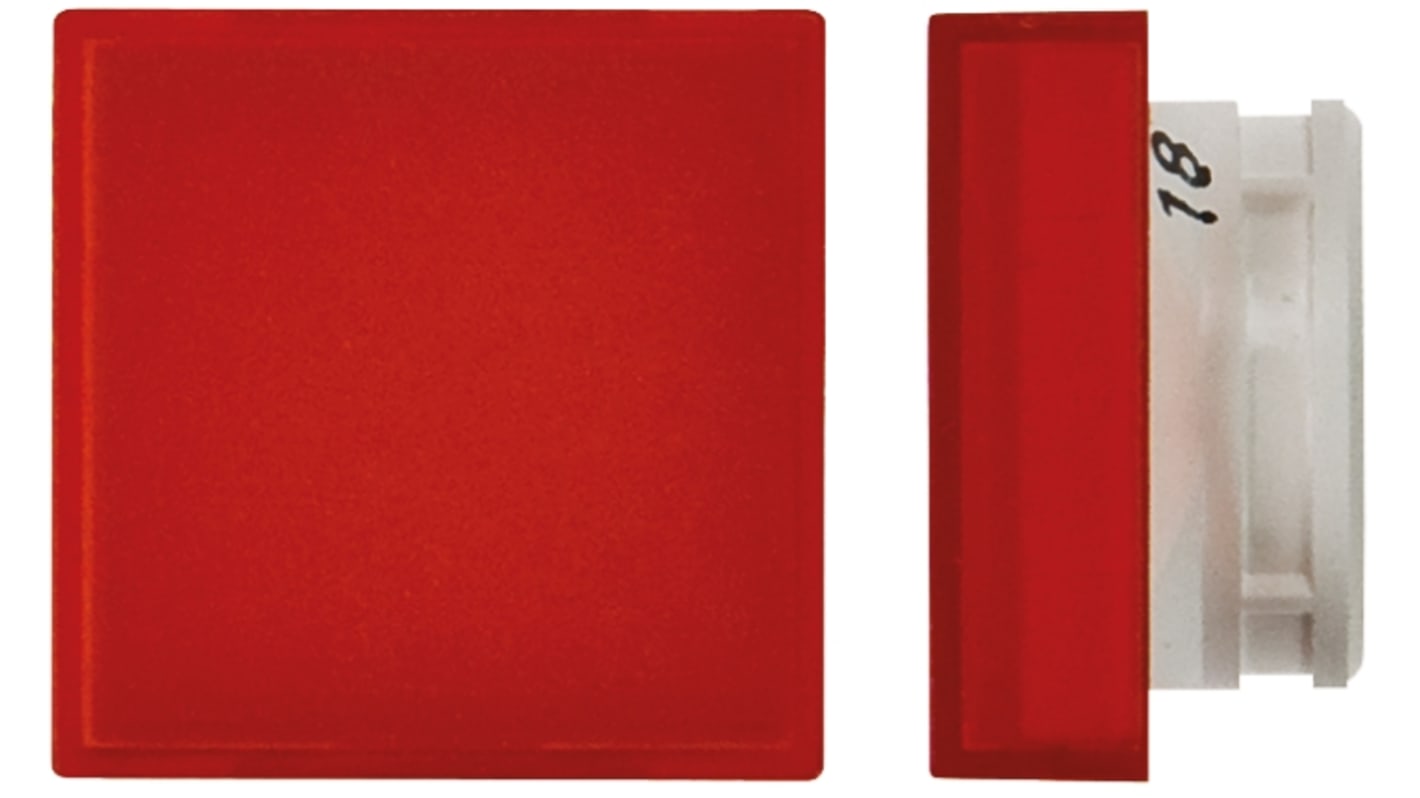

Red Square Push Button Lens for use with A16 Series LED/Incandescent Lamp Push Button Switch

  • RS Stock No. 610-7028
  • Mfr. Part No. A165L-AR
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Lenses - A16 Range

Omron 16mm Diameter Cut Out - 230Vac Rated

Modular construction (case + contact or indicator block + lens + lamp)
Easy, snap-together assembly
IP65 sealed
Conforms to EN60943-5-1, IEC947-5-1

Contact rating 3A @ 30Vdc
  3A @ 250Vac
  5A @ 125Vac
Insulation resistance 100MΩ 500Vdc
Electrical life ≥105 operations
Operating temperature range -10°C to 55°C
Panel cut-out 16 to 16.2mm
Depth behind panel 28.5mm
Lens sizes 18x24, 18 dia. and 18x18mm
Specifications
Attribute Value
Accessory Type Lens
For Use With A16 Series LED/Incandescent Lamp Push Button Switch
Lens Colour Red
Lens Shape Square
40 In stock for delivery within 5 working day(s)
Price (ex. GST) Each (In a Pack of 5)
$ 3.00
(exc. GST)
$ 3.30
(inc. GST)
units
Per unit
Per Pack*
5 - 45
$3.00
$15.00
50 - 245
$2.924
$14.62
250 - 495
$2.846
$14.23
500 - 1245
$2.768
$13.84
1250 +
$2.698
$13.49
*price indicative
