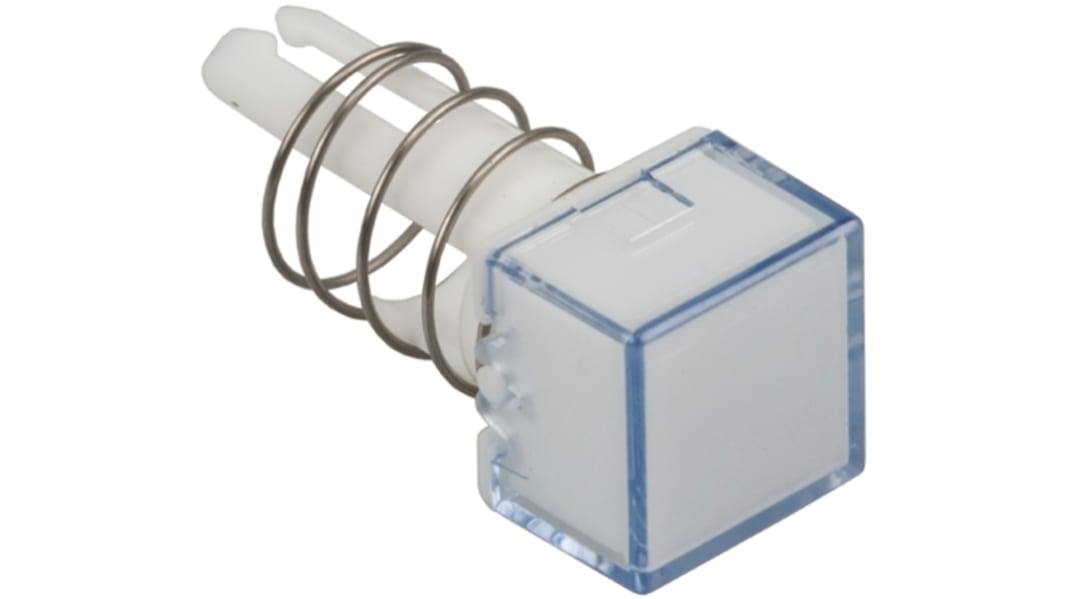

White Square Push Button Lens for use with A8 Series

  • RS Stock No. 664-840
  • Mfr. Part No. AL8Q-LK1-W
  • Manufacturer Idec
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

8mm Sub-miniature Illuminated Push-button Switches

8mm contact indicators for panel mounting
LED illumination, Suitable LEDs are supplied separately
Indicators are available in both square and round styles
Solder Tab terminals

LEDs

A range of LEDs specifically for use with this sub-miniature indicator series
Current should be limited to 20mA by use of a suitable external resistor as detailed at the beginning of the Optoelectronics/Indicators section. VF @ IF 20mA=1.7V (red), 2.1V (green) and 2.2V (yellow)

Note: When not illuminated, the green LED appears to be yellow.

Lenses

Two-part lenses comprising a diffuser and a coloured transparent front cover. Diffuser may be marked to indicate switch function, etc

Note

Square and round bezel indicators do not include a lens, switch or LED. Suitable lenses need to be ordered separately.

Specifications
Attribute Value
Accessory Type Lens
For Use With A8 Series
Lens Colour White
Lens Shape Square
