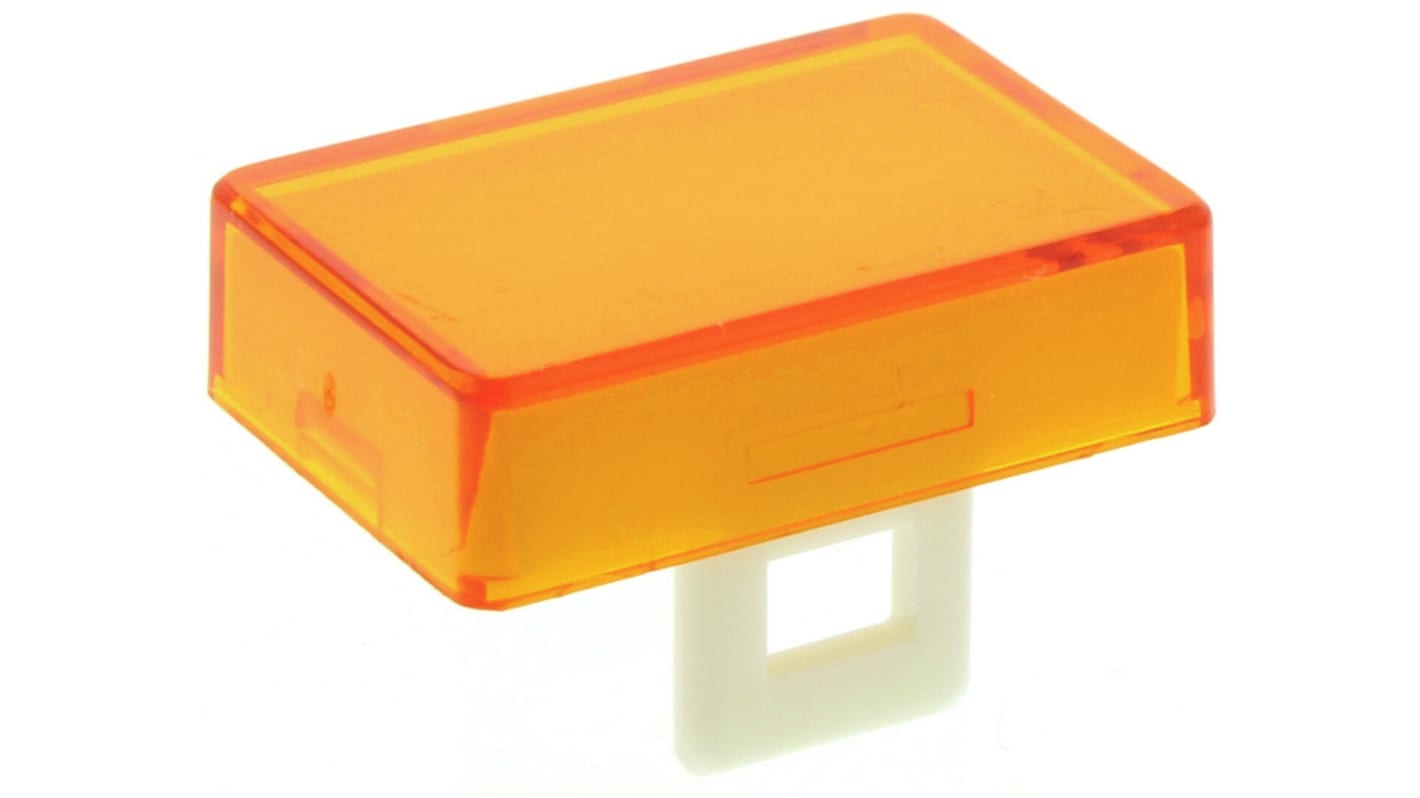

Orange Rectangular Push Button Lens for use with Push Button Switch

  • RS Stock No. 339-011
  • Mfr. Part No. TH461612000
  • Manufacturer Saia-Burgess
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

Lenses and Fitting Kit

Suitable for use with Standard 16mm Push-button Switches and Push-button Switch Lampholders

Two-part polycarbonate lenses consisting of diffuser and a coloured transparent front cover
The diffuser may be marked with conventional dry panel transfers to indicate switch function
16mm fitting kit consisting of a 1 x lens extraction tool, 1 x 16mm metal tubular spanner and 1 x 16mm plastic side spanner

Illuminated switches, standard

Range of illuminated panel-mounted switches available in square, rectangular and circular momentary or latching versions. Square or rectangular lamp terminals are also available. Suitable lamps: T5·5, see the Optoelectronics / Indicators section.

Specifications
Attribute Value
Accessory Type Lens
For Use With Push Button Switch
Lens Colour Orange
Lens Shape Rectangular
725 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Pack of 5)
$ 4.654
(exc. GST)
$ 5.119
(inc. GST)
units
Per unit
Per Pack*
5 - 370
$4.654
$23.27
375 - 1245
$4.54
$22.70
1250 - 2495
$4.422
$22.11
2500 - 6245
$4.298
$21.49
6250 +
$4.188
$20.94
*price indicative
