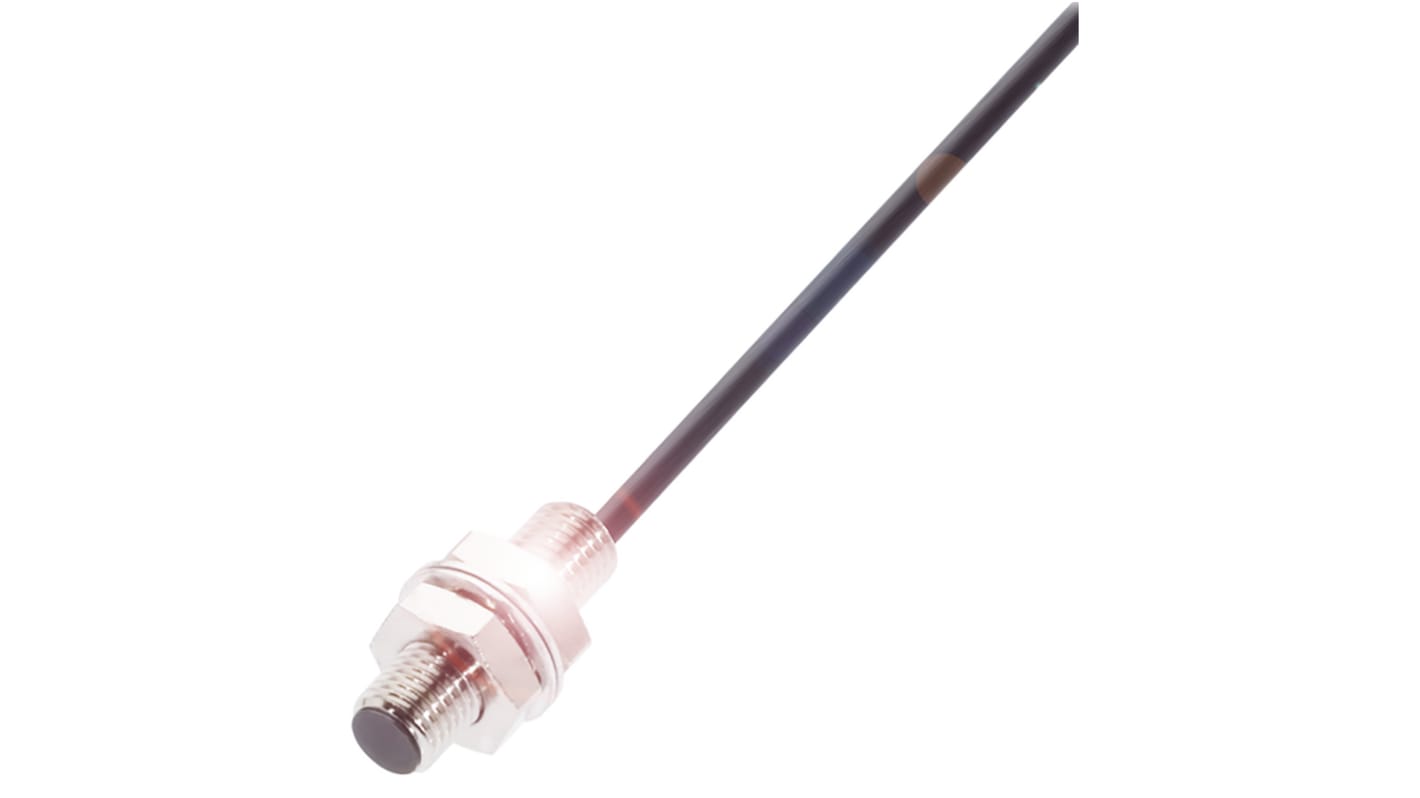

BALLUFF Inductive Barrel-Style Proximity Sensor, M8 x 1, 1.5 mm Detection, PNP Output, 10 → 30 V dc, IP68
- RS Stock No.:
- 124-3803
- Mfr. Part No.:
- BES 516-324-E4-C-PU-05
- Brand:
- BALLUFF
On back order for despatch 14/05/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$202.51
(exc. GST)
$222.76
(inc. GST)
Units | Per unit |
1 + | $202.51 |
- RS Stock No.:
- 124-3803
- Mfr. Part No.:
- BES 516-324-E4-C-PU-05
- Brand:
- BALLUFF
Technical data sheets
Legislation and Compliance
Product Details
BES 3-Wire M8 Inductive Proximity Sensors
This range of M8 cylindrical inductive proximity sensors from the BALLUFF BES series are designed to be used in a wide variety of metal detection applications with in industrial environments.
Features and benefits
Pre cabled or connector
Flush shielded or non-flush unshielded
3 wire DC configuration
Specifications
Attribute | Value |
---|---|
Body Style | Barrel |
Thread Size | M8 x 1 |
Sensor Technology | Inductive |
Output Type | PNP |
Detection Range | 1.5 mm |
Terminal Type | Cable |
IP Rating | IP68 |
Supply Voltage | 10 → 30 V dc |
Length | 30mm |
Maximum DC Voltage | 30V |
Mounting Type | Flush |
Switching Current | 200 mA |
Shielding | Shielded |
Maximum Operating Temperature | +70°C |
Housing Material | Stainless Steel |
Maximum Switching Frequency | 3kHz |
Reverse Polarity Protection | Yes |
Short Circuit Overload Protection | Yes |
Minimum Operating Temperature | -25°C |
Standards Met | CE, cULus, EAC, IEC 60947-5-2 |
