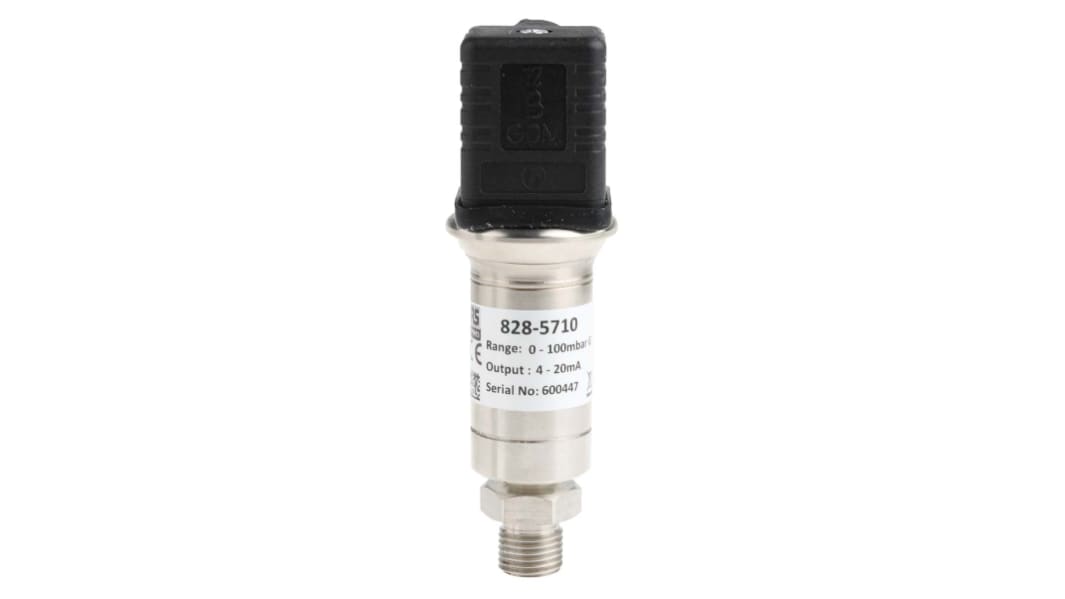

RS PRO Gauge for Oil, Water Pressure Sensor, 100mbar Max Pressure Reading , 9 → 32 V dc, BSP 1/4, IP65

  • RS Stock No. 828-5710
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

RS Pressure Transducers/ Transmitters

These IPSL-series Pressure Sensors, also known as pressure transmitters from our own RS PRO brand are suitable for wide range of industrial applications. These devices change pressure forces into electrical signals. They are used to measure the pressure of the specific quantity like air, water and gas by changing the pressure into electrical energy. The probe uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless-steel housing.

Features and Benefits

One piece stainless steel body
Multipurpose, high performance
Temperature compensated, strain gauge technology
+/- 0.25% accuracy
-40 to + 100/125°C transmitter/ transducer range
2x rated overpressure up to 250mbar

Material Specifications

• Housing: Stainless Steel 303
• O ring seals: Viton
• Diaphragm: 316L Stainless Steel
• Media wetted parts: Housing & connection, O ring seal, diaphragm
• Weight: 100 g
• Installation position: Flexible
• Operational Life: >100x 106 cycles
• Insulation resistance >50M Ohms at 50 V dc

Applications

• Mechanical engineering
• Environmental engineering
• Automotive testing
• Pneumatics
• Agricultural machinery
• Laboratory testing

Characteristics

The electronics incorporate a microprocessor-based amplifier, requiring no adjustments and giving stable electronics, especially for industrial applications. The device is temperature compensated, calibrated and supplied with a traceable serial number and calibration data.

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Specifications
Attribute Value
Pressure Reading Type Relative
Minimum Pressure Reading 0bar
Maximum Pressure Reading 0.1bar
Accuracy <±0.25 %
Output Type Current
Media Measured Oil, Water
Process Connection G1/4
Electrical Connection DIN 43650 Type A
Analogue Output 4 → 20 mA
Maximum Current 28 mA
Supply Voltage 9 → 32 V dc
Housing Material Stainless Steel
IP Rating IP65
Mounting Type Threaded
Maximum Operating Temperature +125°C
Minimum Operating Temperature -20°C
7 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 323.37
(exc. GST)
$ 355.71
(inc. GST)
units
Per unit
1 +
$323.37
