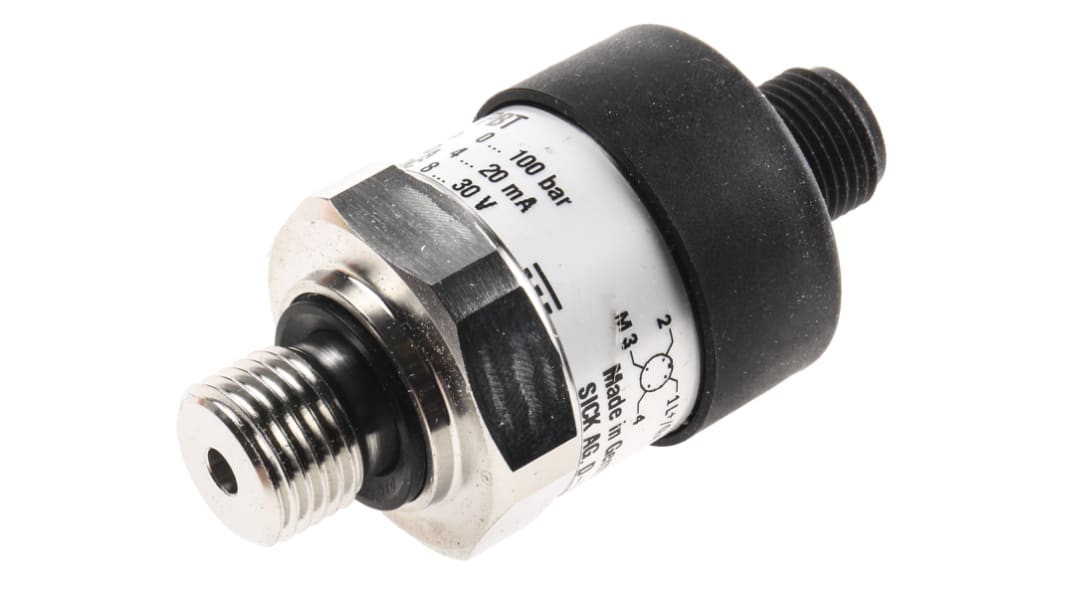

Sick Pressure Sensor, 0bar Min, 100bar Max, Analogue Output, Relative Reading
- RS Stock No.:
- 739-6780
- Mfr. Part No.:
- PBT-RB100SG1SSNAMA0Z
- Brand:
- Sick
On back order for despatch 03/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$325.68
(exc. GST)
$358.25
(inc. GST)
| Units | Per unit |
| 1 + | $325.68 |
- RS Stock No.:
- 739-6780
- Mfr. Part No.:
- PBT-RB100SG1SSNAMA0Z
- Brand:
- Sick
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
PBT Pressure Transmitter
The PBT pressure transmitter is designed for pressure measurement in liquid and gas. These pressure sensors are for use in general industrial applications such as machine and plant engineering, pressure control, machine tool systems and in hydraulic and pneumatic systems.
This universal pressure transmitter is ideal for all your needs, as well as its precise measurement technology, it has compact dimensions and is quick and simple to install, making it perfect in areas where limited space is an issue. It has no moving parts, meaning that there is no mechanical wear or maintenance required and with an IP67 rating it can be used across many different applications.
This universal pressure transmitter is ideal for all your needs, as well as its precise measurement technology, it has compact dimensions and is quick and simple to install, making it perfect in areas where limited space is an issue. It has no moving parts, meaning that there is no mechanical wear or maintenance required and with an IP67 rating it can be used across many different applications.
Features and Benefits
• Compact design
• No mechanical wear, fatigue-proof and maintenance free
• Insensitive against corrosive media
• M12 4 pin electrical connections used for universal application
• Stainless steel housing material
• Quick and simple installation
• Robust design enabling higher reliability
• IP67 – protected from dust and water
• Can be used in a temperature range of 0 °C to +80 °C
• No mechanical wear, fatigue-proof and maintenance free
• Insensitive against corrosive media
• M12 4 pin electrical connections used for universal application
• Stainless steel housing material
• Quick and simple installation
• Robust design enabling higher reliability
• IP67 – protected from dust and water
• Can be used in a temperature range of 0 °C to +80 °C
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 100bar |
| Accuracy | ±0.5 % |
| Output Type | Analogue |
| Media Measured | Fluid, Gas |
| Process Connection | G1/4 |
| Analogue Output | 4 → 20 mA |
| Electrical Connection | M12 Connector |
| Response Time | 4 ms |
| Maximum Current | 25 mA |
| Supply Voltage | 8 → 30 V dc |
| Housing Material | Stainless Steel |
| Maximum Operating Temperature | +80°C |
| IP Rating | IP67 |
| Minimum Operating Temperature | 0°C |
