- RS Stock No.:
- 125-3721
- Mfr. Part No.:
- 7MF1565-3CG00-1AA1
- Brand:
- Siemens
- RS Stock No.:
- 125-3721
- Mfr. Part No.:
- 7MF1565-3CG00-1AA1
- Brand:
- Siemens
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details

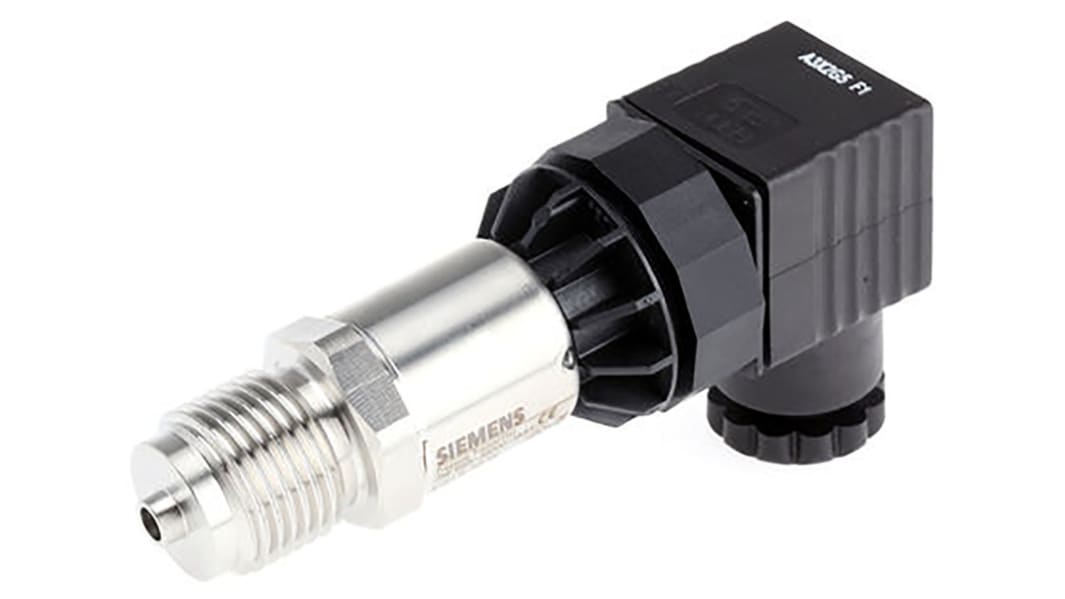

Siemens SITRANS P200 Series Pressure Transmitters
Siemens SITRANS P200 pressure transmitter measures the gauge and absolute pressure of liquids, gases and vapours. Featuring a ceramic measuring cell with a thin-film resistance bridge that the operating pressure is transmitted through. The P200 pressure sensors consist of a piezoresistive measuring cell with a diaphragm installed in a stainless steel enclosure.
High measuring accuracy
Rugged stainless steel enclosure
High overload withstand capability
For aggressive and non-aggressive media
For measuring the pressure of liquids, gases and vapours
Compact design
Rugged stainless steel enclosure
High overload withstand capability
For aggressive and non-aggressive media
For measuring the pressure of liquids, gases and vapours
Compact design
Specifications
Attribute | Value |
---|---|
Pressure Reading Type | Relative |
Minimum Pressure Reading | 0bar |
Maximum Pressure Reading | 60bar |
Accuracy | 0.25 % |
Output Type | Analogue |
Media Measured | Aggressive Media, Gas, Liquid, Non-Aggressive Media, Vapour |
Process Connection | G1/2 |
Analogue Output | 4 → 20 mA |
Electrical Connection | DIN EN 175301 Connector, M16 |
Response Time | <5 ms |
Maximum Current | 20 mA |
Supply Voltage | 7 → 33 V dc |
Housing Material | Stainless Steel |
Minimum Operating Temperature | -25°C |
Mounting Type | Threaded |
IP Rating | IP65, IP67 |
Maximum Operating Temperature | +85°C |
