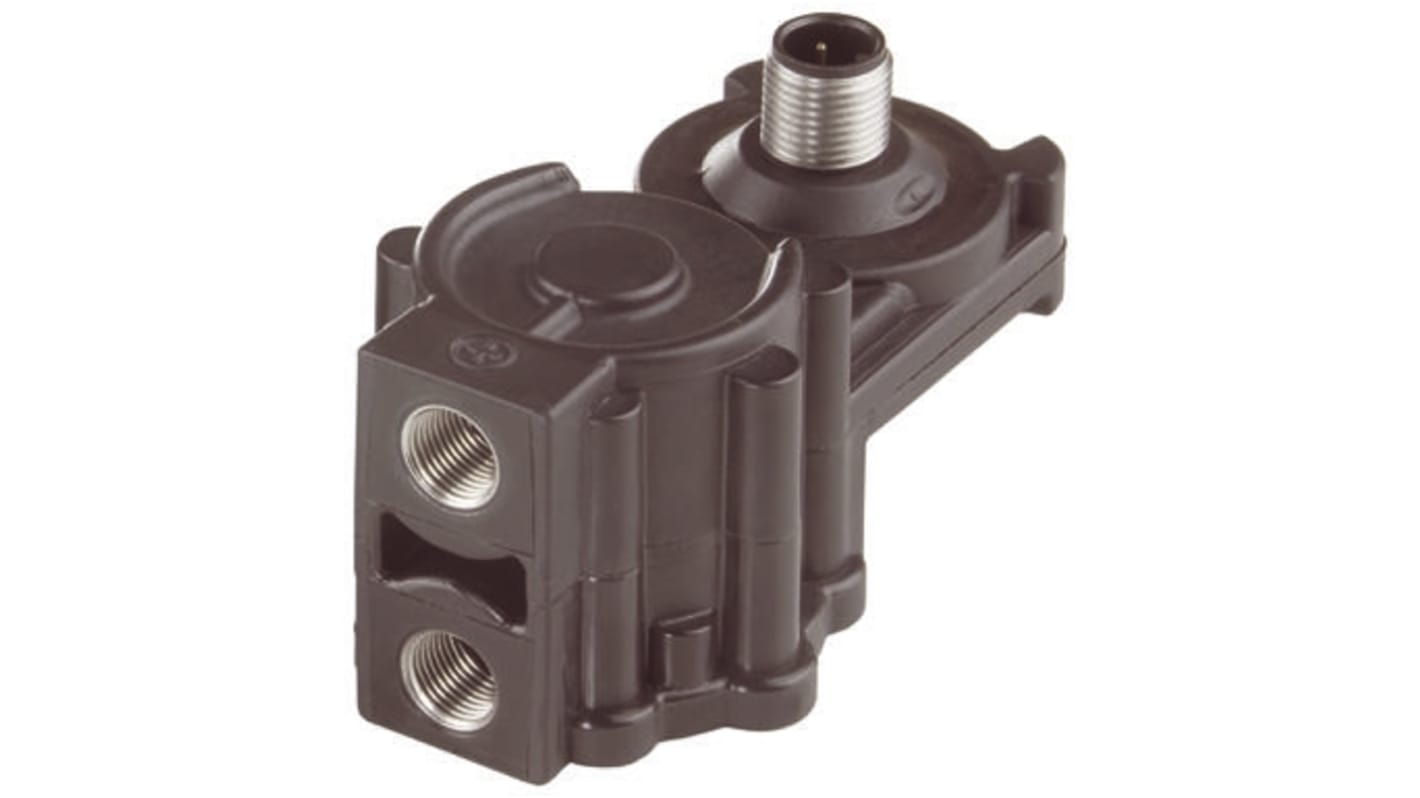

Jumo Pressure Sensor, 0bar Min, 4bar Max, Differential Reading
- RS Stock No.:
- 186-028
- Mfr. Part No.:
- 401050/000-457-405-593-68-601-36/000
- Brand:
- Jumo
1 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$679.71
(exc. GST)
$747.68
(inc. GST)
| Units | Per unit |
| 1 + | $679.71 |
- RS Stock No.:
- 186-028
- Mfr. Part No.:
- 401050/000-457-405-593-68-601-36/000
- Brand:
- Jumo
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
MIDAS DP10 — differential pressure transducer
For liquid and gaseous media
Analogue output signal
Stainless steel measurement cell with piezo-resistive silicon sensor
Analogue output signal
Stainless steel measurement cell with piezo-resistive silicon sensor
Specifications
Attribute | Value |
|---|---|
| Pressure Reading Type | Differential |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 4bar |
| Media Measured | Fluid, Gas |
| Process Connection | G1/8 |
| Electrical Connection | M12 Connector |
| Analogue Output | 4 → 20 mA |
| Supply Voltage | 10 → 30 V dc |
| Housing Material | Stainless Steel |
| Minimum Operating Temperature | -20°C |
| IP Rating | IP67 |
| Maximum Operating Temperature | +80°C |
