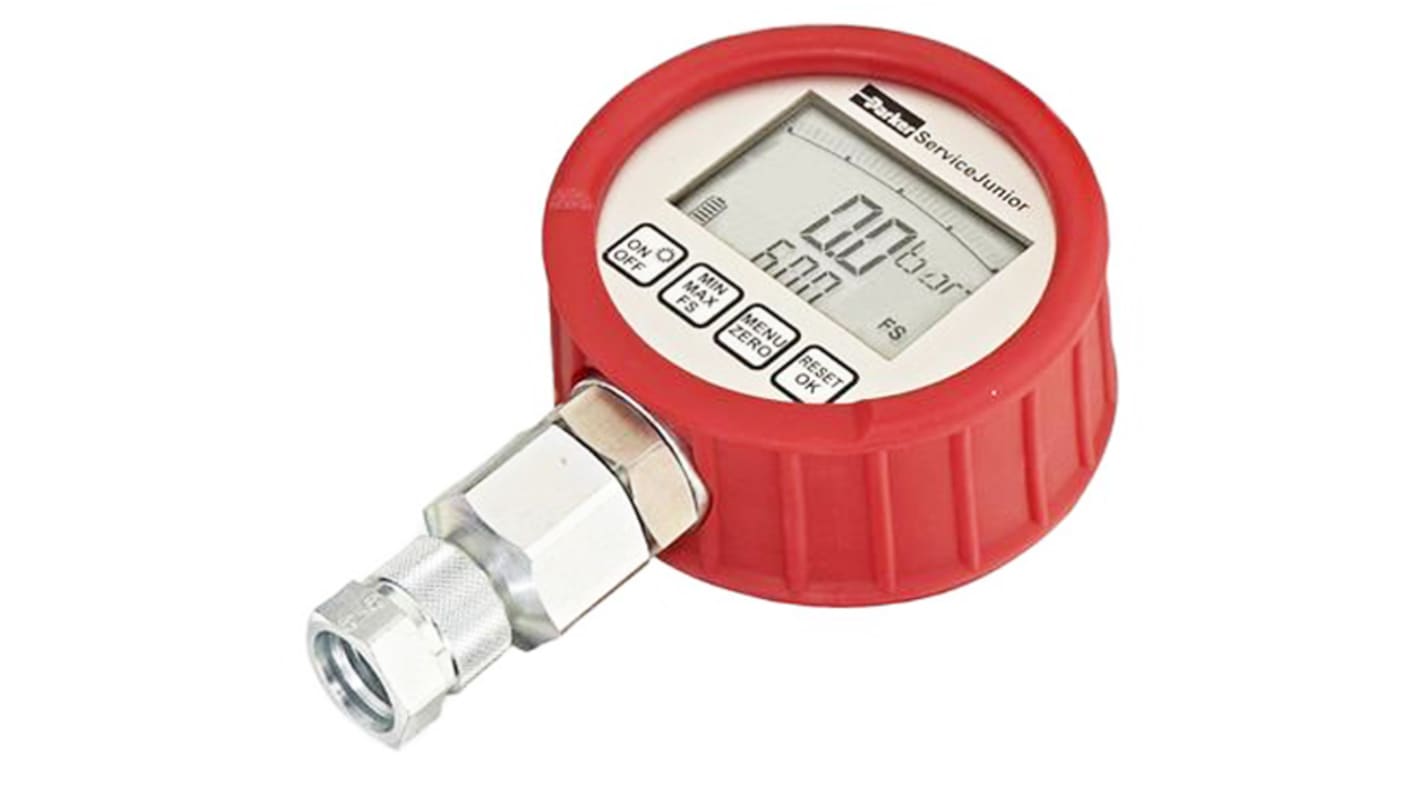

Parker 1/4 in Digital Pressure Gauge 600bar Bottom Entry, SCJN-KIT-600, 0bar min., ServiceJunior 600
- RS Stock No.:
- 511-6706
- Mfr. Part No.:
- SCJN-KIT-600
- Brand:
- Parker
16 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each
$1,627.99
(exc. GST)
$1,790.79
(inc. GST)
| Units | Per unit |
| 1 - 4 | $1,627.99 |
| 5 + | $1,339.83 |
- RS Stock No.:
- 511-6706
- Mfr. Part No.:
- SCJN-KIT-600
- Brand:
- Parker
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
Hydraulic Service Junior Kit
The ServiceJunior pressure kit from Parker is an easy to use, affordable digital pressure gauge that offers excellent performance and durability. The back lit display with bar graph and 4 digits is easy to read and easy operation.
Features and Benefits
G1/4 BSPP pressure port
1500 hour life time cycle internal battery
Temperature range 0°C to +50°C
Accuracy typically 0.5% FS/max
Features and Benefits
Back-lit 4.5 digit display
Peak-Hold function
Pressure measurement cell with 10 ms scanning rate
Easy to use
Stable
Rotatable display
Powered by 2 AA batteries
IP67 EN 60529
1500 hour life time cycle internal battery
Temperature range 0°C to +50°C
Accuracy typically 0.5% FS/max
Features and Benefits
Back-lit 4.5 digit display
Peak-Hold function
Pressure measurement cell with 10 ms scanning rate
Easy to use
Stable
Rotatable display
Powered by 2 AA batteries
IP67 EN 60529
Applications
The service junior pressure test kits are suitable for various applications including,
Mobile equipment
Cooling systems
Industrial hydraulic systems
Fluid or air system maintenance and troubleshooting
Mobile equipment
Cooling systems
Industrial hydraulic systems
Fluid or air system maintenance and troubleshooting
Contents
1 x Digital Gauge
1 x Adaptor G1/4 BSPP EMA-3, M16 x 2.0
1x Adaptor EMA-3/3, M16 x 2 - M16 x 2.0
1 x Equipment case
1 x Test hose 1500mm long
1 x User manual
1 x Adaptor G1/4 BSPP EMA-3, M16 x 2.0
1x Adaptor EMA-3/3, M16 x 2 - M16 x 2.0
1 x Equipment case
1 x Test hose 1500mm long
1 x User manual
Digital Pressure Gauges
Gauges measure and display pressure. Give clear read-out by 4 1/2-digit display. Indicate pressure peaks by MIN/MAX display. Accuracy is to DIN/EN50081-1, DIN/EN50082-1.
Specifications
Attribute | Value |
|---|---|
| Maximum Pressure Measurement | 600bar |
| Mounting Type | Bottom Entry |
| Minimum Pressure Measurement | 0bar |
| Display Type | Digital |
| Connection Size | 1/4 in |
| Pressure Range | 0 → 600bar |
