FLUKE-717 100G Pressure Calibrator 6.895bar, Model 717

  • RS Stock No. 447-7713
  • Mfr. Part No. FLUKE-717 100G
  • Manufacturer Fluke
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

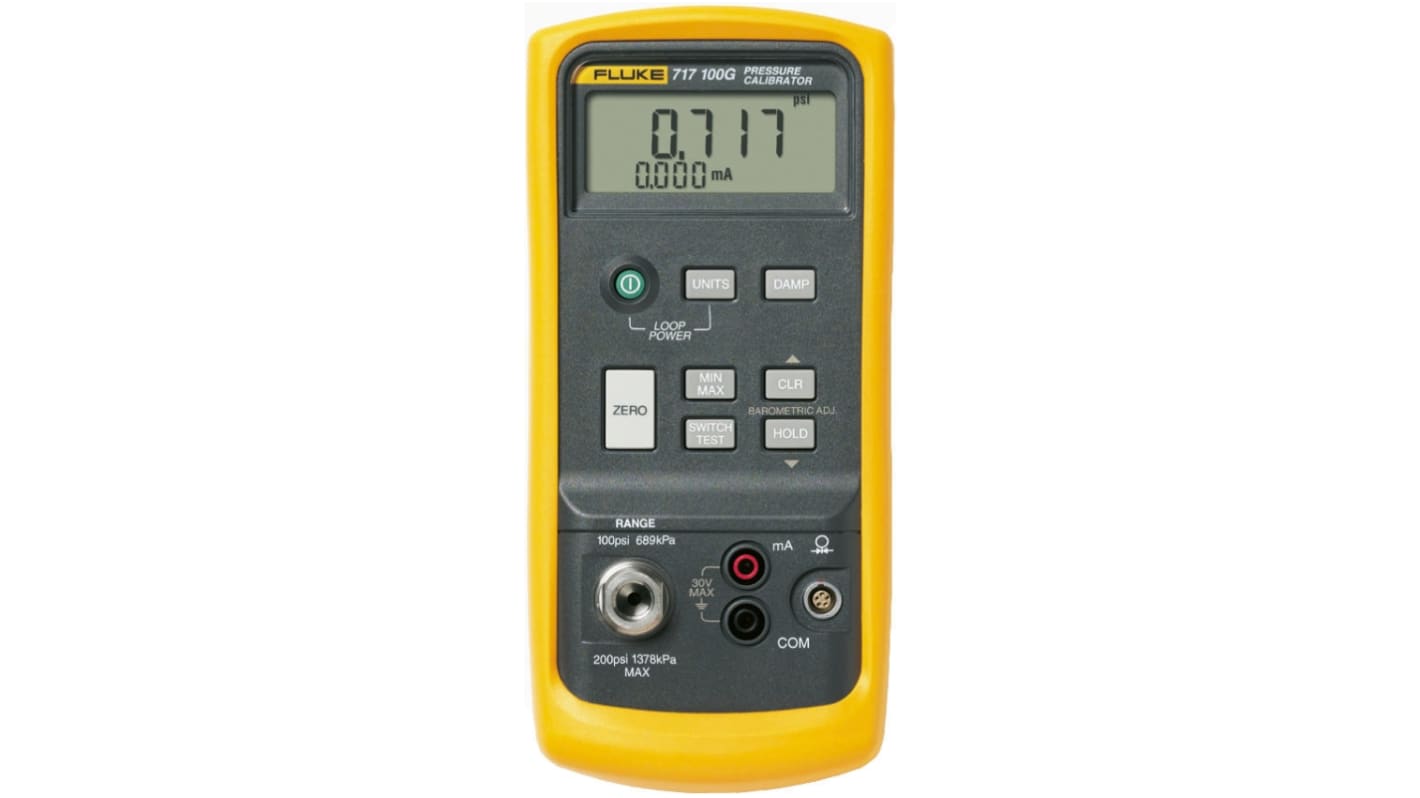

Fluke 717-100G pressure calibrator

Pressure sensor intake 100 psi (7 bar) on full scale, accuracy 0.05 %.
1/8 NPT connector
Compatible with non-corrosive gases and liquids
Choice of 11 different units (psi, in H²O at 4 °C, in H²O at 20 °C, cm H²O at 4 °C, cm H2O at 20 °C, bar, mbar, kPa, in Hg, mm Hg, kg/cm2).
Zero, min, max, damp, display hold functions.
Measures pressure up to 10000 psi / 700 bar using one of the pressure modules of the 700Pxx series (optional).
Measures current while supplying the current loop with 24 V.

Specifications
Attribute Value
Maximum Pressure Measurement 6.895bar
Minimum Pressure Measurement -850mbar
Resolution 1 mbar
Current Loop Measurement Yes
Leak Testing Yes
Maximum Operating Temperature +55°C
Minimum Operating Temperature -10°C
Weight 600g
Dimensions 201 x 98 x 52mm
Height 52mm
Length 201mm
Width 98mm
Model Number p 717
Temporarily out of stock - back order for despatch 14/08/2020, delivery within 1 working days from despatch date.
Price (ex. GST) Each
$ 3,032.00
(exc. GST)
$ 3,335.20
(inc. GST)
units
Per unit
1 +
$3,032.00
