- RS Stock No.:
- 196-4357
- Mfr. Part No.:
- S6SBP203A8FVA1001
- Brand:
- Infineon
Available for back order.
Added
Price (ex. GST) Each
$98.99
(exc. GST)
$108.89
(inc. GST)
Units | Per unit |
1 - 4 | $98.99 |
5 + | $89.09 |
- RS Stock No.:
- 196-4357
- Mfr. Part No.:
- S6SBP203A8FVA1001
- Brand:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details

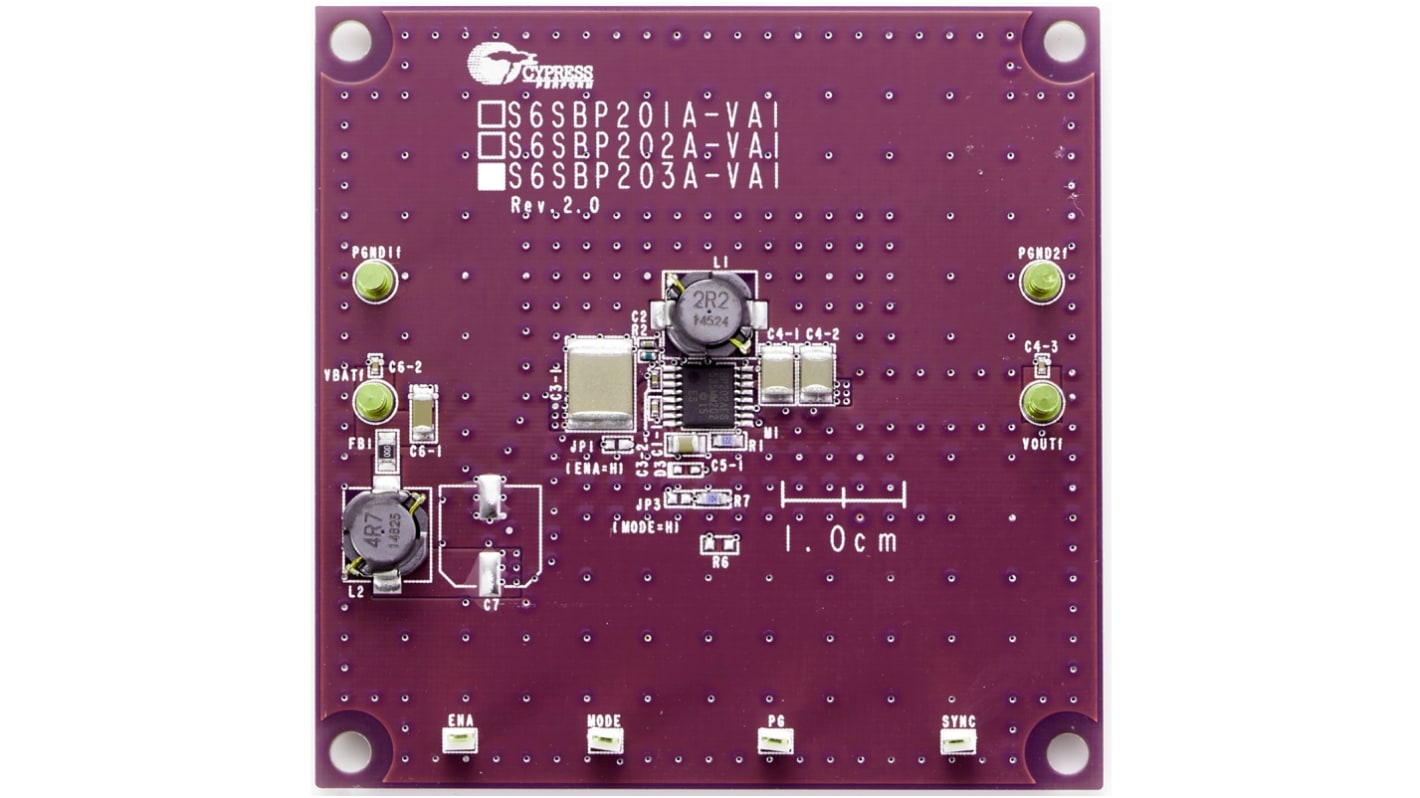

S6SBP203A8FVA1001 is the evaluation kit for primary power block for automotive.
S6BP203A is a 1ch Buck-boost DC/DC converter IC with four built-in switching FETs. This IC is able to supply up to 2.4A of load current within the very wide range from 2.5V to 42V in the input voltage. This IC has an operation mode that is automatically changed to PFM operation during low load, which can achieve super-high efficiency with a very low quiescent current 50 μA. It is possible to provide stable output voltage from an automotive cold cranking and load dump, up to 42V, conditions within 1 ms transition time. As a result, this IC is suitable for power supply solutions of automotive and Industrial applications.
S6BP203A is a 1ch Buck-boost DC/DC converter IC with four built-in switching FETs. This IC is able to supply up to 2.4A of load current within the very wide range from 2.5V to 42V in the input voltage. This IC has an operation mode that is automatically changed to PFM operation during low load, which can achieve super-high efficiency with a very low quiescent current 50 μA. It is possible to provide stable output voltage from an automotive cold cranking and load dump, up to 42V, conditions within 1 ms transition time. As a result, this IC is suitable for power supply solutions of automotive and Industrial applications.
Specifications
Attribute | Value |
---|---|
For Use With | Automotive Primary Power Block |
Kit Classification | Evaluation Kit |
Featured Device | S6BP203A8F |
Kit Name | Evaluation Kit |
