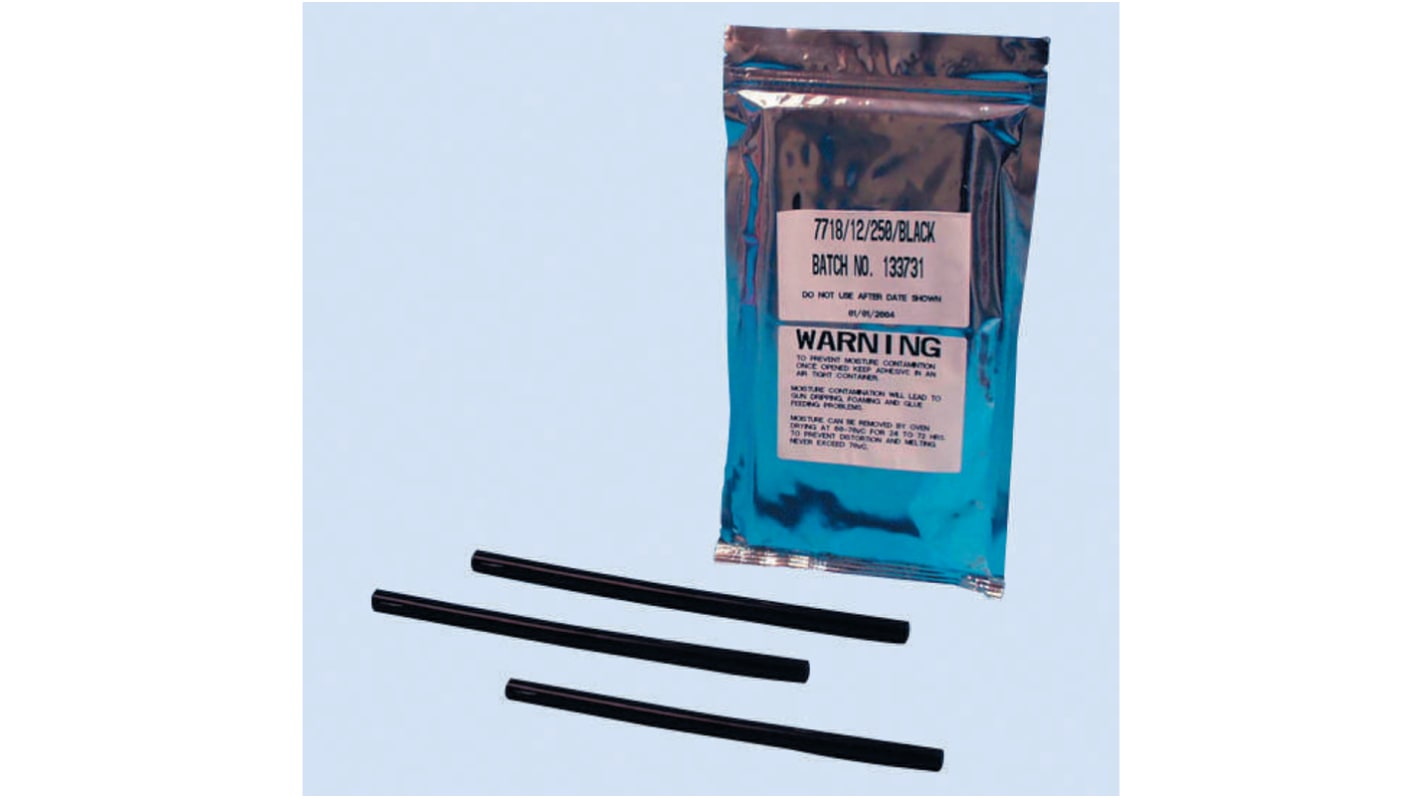

Power Adhesives 7718-12-250-BKP-TP10-RS Black Polyamide Potting Compound

  • RS Stock No. 448-6830
  • Mfr. Part No. 7718-12-250-BKP-TP10-RS
  • Manufacturer Power Adhesives
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Power Adhesives 7718-12-250-BKP-TP10-RS Black Polyamide Potting Compound

The Power Adhesives polyamide potting and encapsulating compound is a hotmelt adhesive with a very low viscosity that runs well through most 12mm glue guns. It can replace traditional potting compounds, such as epoxy or polyurethane, which require mixing and contain hazardous chemicals. As it is stored and sealed in its foil pouch, its shelf life can be 12 months or more.

Features and Benefits

Very fast setting time (<2min)
No mixing, no waste
No flushing or cleaning of equipment between use
Will work in most high performance 12mm glue guns
Heat resistance of 135°C and a softening point of 160°C
Solid black colour thereby hiding all components
Cost effective
shelf life is 12 months

Certifications

UL 94 approved
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
CE certified
ISO 9002

Specifications
Attribute Value
Product Material Polyamide
Package Type Stick
Colour Black
Maximum Operating Temperature +135°C
Minimum Operating Temperature -10°C
Setting Time <2min
Operating Temperature Range -10 → +135 °C
47 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each
$ 20.46
(exc. GST)
$ 22.51
(inc. GST)
units
Per unit
1 - 5
$20.46
6 - 11
$20.03
12 +
$19.73
