Bourns 100kΩ Rotary Potentiometer 1-Gang, Panel Mount (Through Hole), PTV09A-4020F-B104

RS Stock No.:: 737-7824
Mfr. Part No.:: PTV09A-4020F-B104
Brand:: Bourns

Bourns 100kΩ Rotary Potentiometer 1-Gang, Panel Mount (Through Hole), PTV09A-4020F-B104

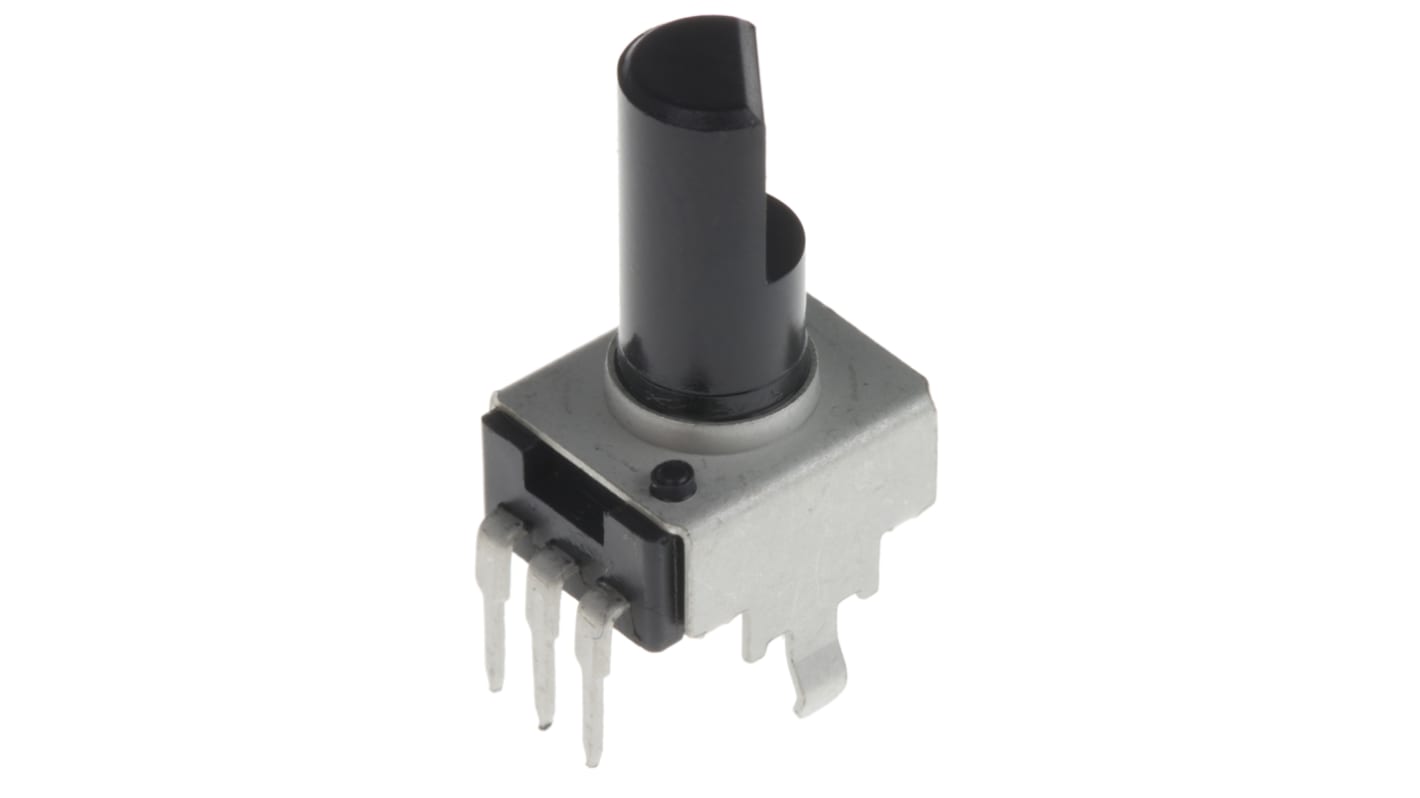

This image is representative of the product range

206 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$1.60

(exc. GST)

$1.76

(inc. GST)

Units	Per unit
1 - 24	$1.60
25 - 49	$1.59
50 +	$1.56

RS Stock No.:: 737-7824
Mfr. Part No.:: PTV09A-4020F-B104
Brand:: Bourns

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

PTV09 Series 9mm Rotary Linear Potentiometers

PTV09 series 9mm rotary linear potentiometers with a carbon element, insulated shaft and centre detent option (stock numbers 737-7821, 827-4990, 827-5022 and 737-7830). These PTV09 rotary linear potentiometers are PCB horizontal mounting apart from stock number 737-7818 which is vertical/side mounting. For further details please refer to datasheet.
Typical applications for these PTV09 rotary potentionmeters include commercial communications equipment, portable electronics, amplifiers, mixers, drum machines, synthesizers and commercial applicances.

Insulated shaft
Snap-in clip
Centre detent option

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Potentiometer Type	Rotary
Maximum Resistance	100kΩ
Number of Gangs	1
Number of Turns	1
Power Rating	0.05W
Electrical Taper	Linear
Element Material	Carbon
Mounting Type	Panel Mount, Through Hole
Termination Style	PC Pin
Shaft Length	20mm
Shaft Diameter	6 mm
Tolerance	±20%
Series	PTV09
Actuator Type	Flatted Shaft
