- RS Stock No.:
- 424-9928
- Mfr. Part No.:
- AD3 10kOHM
- Brand:
- Dold
2 In Global stock for delivery within 10 working day(s)
12 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$143.68
(exc. GST)
$158.05
(inc. GST)
Units | Per unit |
1 + | $143.68 |
- RS Stock No.:
- 424-9928
- Mfr. Part No.:
- AD3 10kOHM
- Brand:
- Dold
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
MK 7850N — Multi-Function Timer Relay
A choice of Dold multi-Function Timer Relay's with optional external potentiometer accessory also available at 10 KΩ
Features:
LED as adjustment aid for time selection
8 time ranges from 0.02 s → 300 h selected via rotary switch
Expanded voltage range AC / DC 12 → 240 V
2 changeovers, 1 of which as immediate contact
Control contact, electrically isolated
Box terminals
8 time ranges from 0.02 s → 300 h selected via rotary switch
Expanded voltage range AC / DC 12 → 240 V
2 changeovers, 1 of which as immediate contact
Control contact, electrically isolated
Box terminals
8 functions selected via rotary switch
Response delay (AV)
Switch-on wipe function (EW)
Emitter delayed (IE)
Flashing function, starting with pulse (BI)
Fallback delay (RV)
Pulse transducer (IF)
Switch-off wipe function (AW)
Response and fallback delay (AV / RV)
Switch-on wipe function (EW)
Emitter delayed (IE)
Flashing function, starting with pulse (BI)
Fallback delay (RV)
Pulse transducer (IF)
Switch-off wipe function (AW)
Response and fallback delay (AV / RV)
Additional with MK 7850N / 500
Timer, starting with pause (TP)
Switch-on and switch-off wipe function (EW / AW)
2 separately adjustable times
Connection option for 2 remote port.
Switch-on and switch-off wipe function (EW / AW)
2 separately adjustable times
Connection option for 2 remote port.
Note

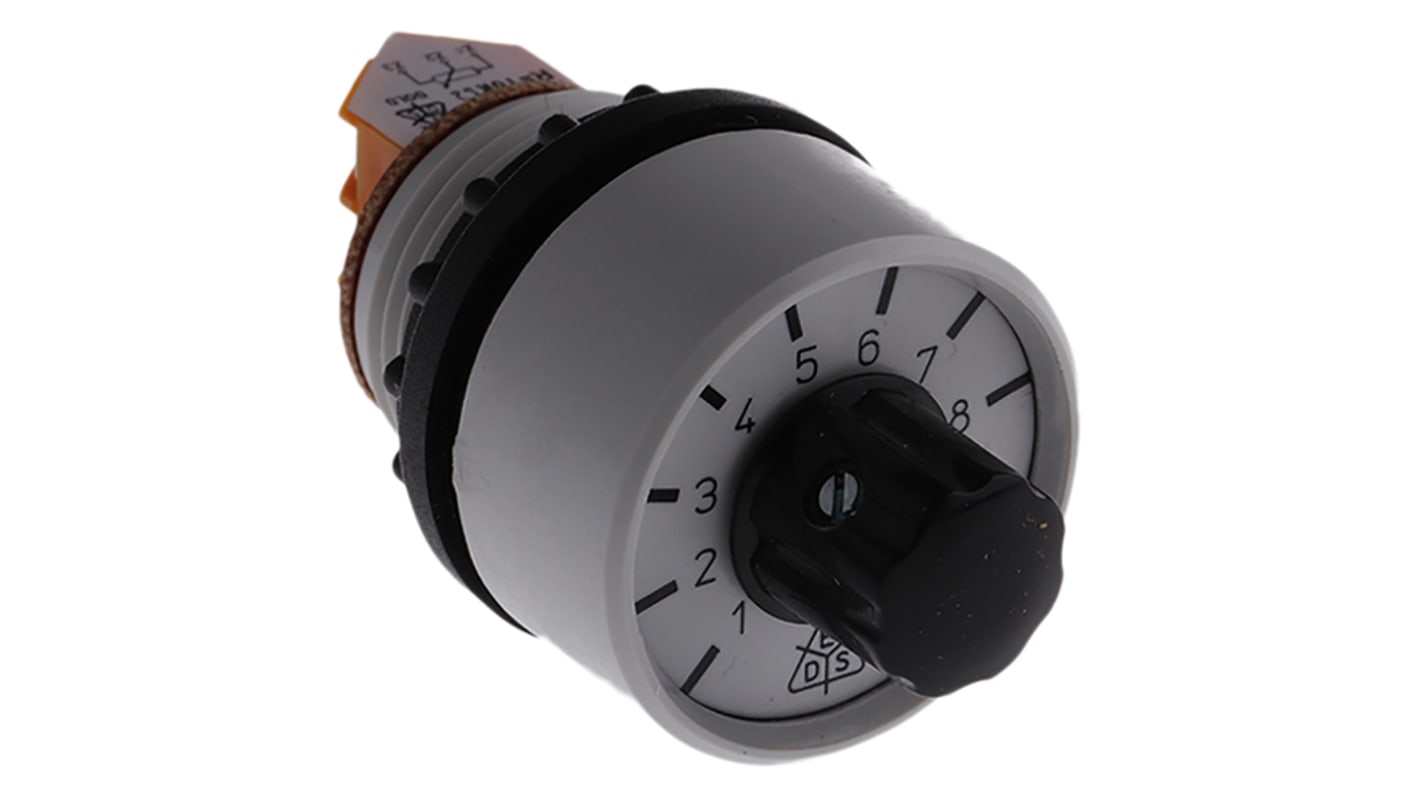

Remote potentiometer with terminals Z1, Z2 sold separately, see RS code: 4249928
Specifications
Attribute | Value |
---|---|
Potentiometer Type | Rotary |
Maximum Resistance | 10kΩ |
Number of Gangs | 1 |
Mounting Type | Panel Mount |
Termination Style | Screw |
Shaft Diameter | 22.5 mm |
Series | AD3 |
