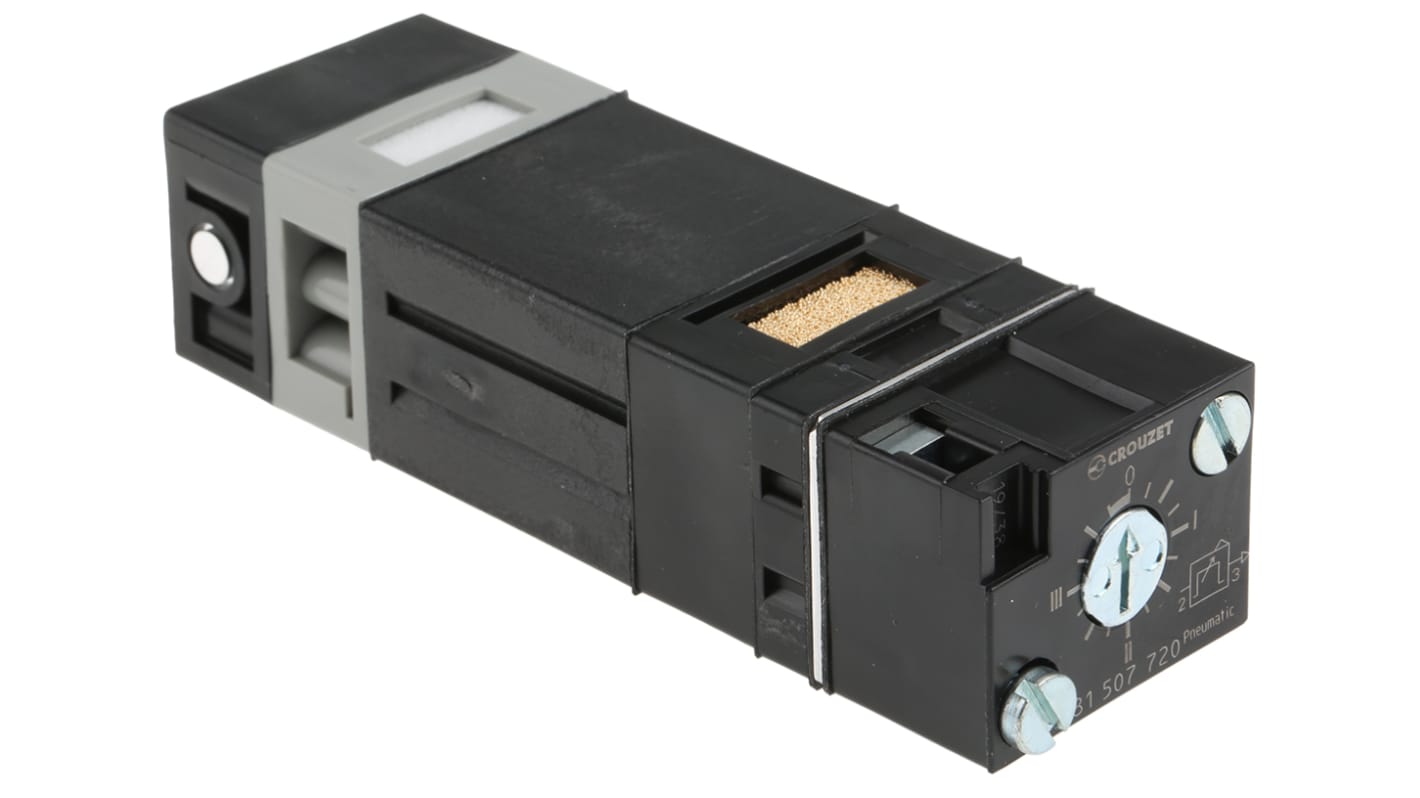

Crouzet 2 → 8bar 0.1 → 30s Pneumatic Timer, -5 → +50°C

  • RS Stock No. 725-024
  • Mfr. Part No. 81507720
  • Manufacturer Crouzet
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
//media.rs-online.com/t_line/L724024-01.gif
//media.rs-online.com/t_line/L725024-01.gif
//media.rs-online.com/t_line/LD725024-01.gif

Crouzet Single Impulse Generator Module

The Crouzet 81 series single impulse generator has operating pressure ranging between 2bar and 8 bar. This sub-base mount timer transforms a maintained signal into a single pulse. The output is switched via the negative output relay when an input signal is applied. At the same time, the reservoir starts to fill via the flow restrictor. After the set time delay, the relay operates and the output is switched off. It does not reset until the pilot signal is removed.

Features and Benefits

Delay time ranges between 0.1 second and 30 seconds
Accuracy is ± 5%
Flow at 6bar is 170Nl/min
Operating temperature ranges between -5°C and 50°C

Specifications
Attribute Value
Manufacturer Series 81
Minimum Operating Pressure 2bar
Maximum Operating Pressure 8 bar
Minimum Operating Temperature -5°C
Maximum Operating Temperature +50°C
Minimum Time 0.1s
Maximum Time 30s
