Norgren Toggle 3/2 Pneumatic Manual Control Valve 03 Series

  • RS Stock No. 724-251
  • Mfr. Part No. 03040302
  • Manufacturer Norgren
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details
//media.rs-online.com/t_line/L724217-04.gif

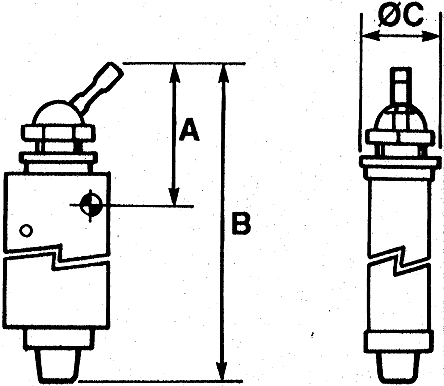

//media.rs-online.com/t_line/L724251-01.gif

Norgren Pneumatic Manual Control Valve

The Norgren 03 series 3/2 port pneumatic manual control valve has a thread size of 1/8in G. This valve is designed for use with cylinders up to 50mm bore for most applications. It is a lever-actuated spring return valve. This valve is suitable for multi-directional flow and dual supply applications.
Note:
Due to manufacturer change, valves of 3/2 function now have moulded polymer (Fortron PPS) body which replaces the older metal body

Features and Benefits

Maximum flow rate is 335L/min
Maximum operating pressure is 10bar
High flow capacity
Suitable for panel mounting
Made from lightweight corrosion-resistant material
Operating temperature ranges between -0°C and 70°C

Specifications
Attribute Value
Control Mechanism Toggle
Function 3/2
Connection Port Thread G 1/8
Thread Size 1/8in
Thread Standard G
Manufacturer Series 03
Control Button/Switch Colour Black
Maximum Operating Pressure 10 bar
Body Material Zinc Alloy
Maximum Flow Rate 335L/min
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
Number of Ports 3/2
2 : Next working day (AU stock)
22 : 5 working days (Global stock)
Price (ex. GST) Each
$ 137.72
(exc. GST)
$ 151.49
(inc. GST)
units
Per unit
1 - 5
$137.72
6 - 11
$134.27
12 +
$133.21
