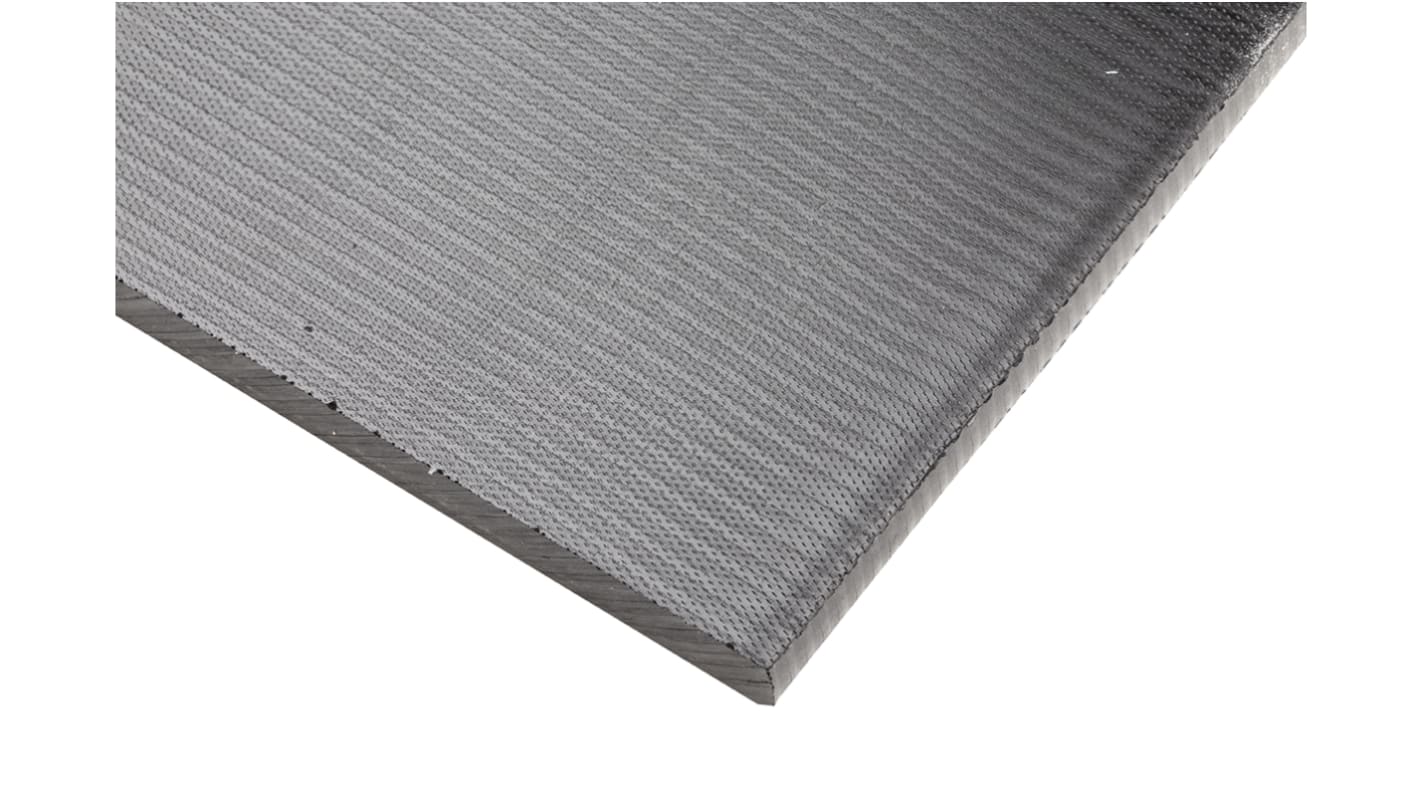

Black Glass-Reinforced Plastic GRP Sheet, 500mm x 305mm x 10mm

  • RS Stock No. 771-869
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Glass Filled Nylon 66

Environmental: Glass filled Nylon 66 is unaffected by ultra-violet light. Strong acids (pH>3) will cause dimensional change due to absorption. Strong alkalis (pH>11) have no affect. Hot water and chlorinated hydrocarbons produce signs of mild attack by absorption.

High temperature static applications
30% glass filling reinforces stiffness
Excellent dimensional stability
Increased strength and performance in comparison to standard nylon 66
Black in colour

Standards

30s DIN 53456

Specifications
Attribute Value
Colour Black
Form Solid
Length 500mm
Width 305mm
Thickness 10mm
Material Glass Reinforced Plastic
Density 1.35g/cm³
Tensile Strength 140 (Wet) MPa, 160 (Dry) MPa
Hardness M 90 Rockwell
Flammability Rating UL 94 HB
Water Absorption 5.5%
Thermal Conductivity 0.27W/mK
Maximum Operating Temperature +100°C
12 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) 1 Lot of 1
$ 158.66
(exc. GST)
$ 174.53
(inc. GST)
Lot(s)
1 - 2
$158.66
3 - 9
$149.15
10 - 29
$136.45
30 +
$123.75
