Product Details

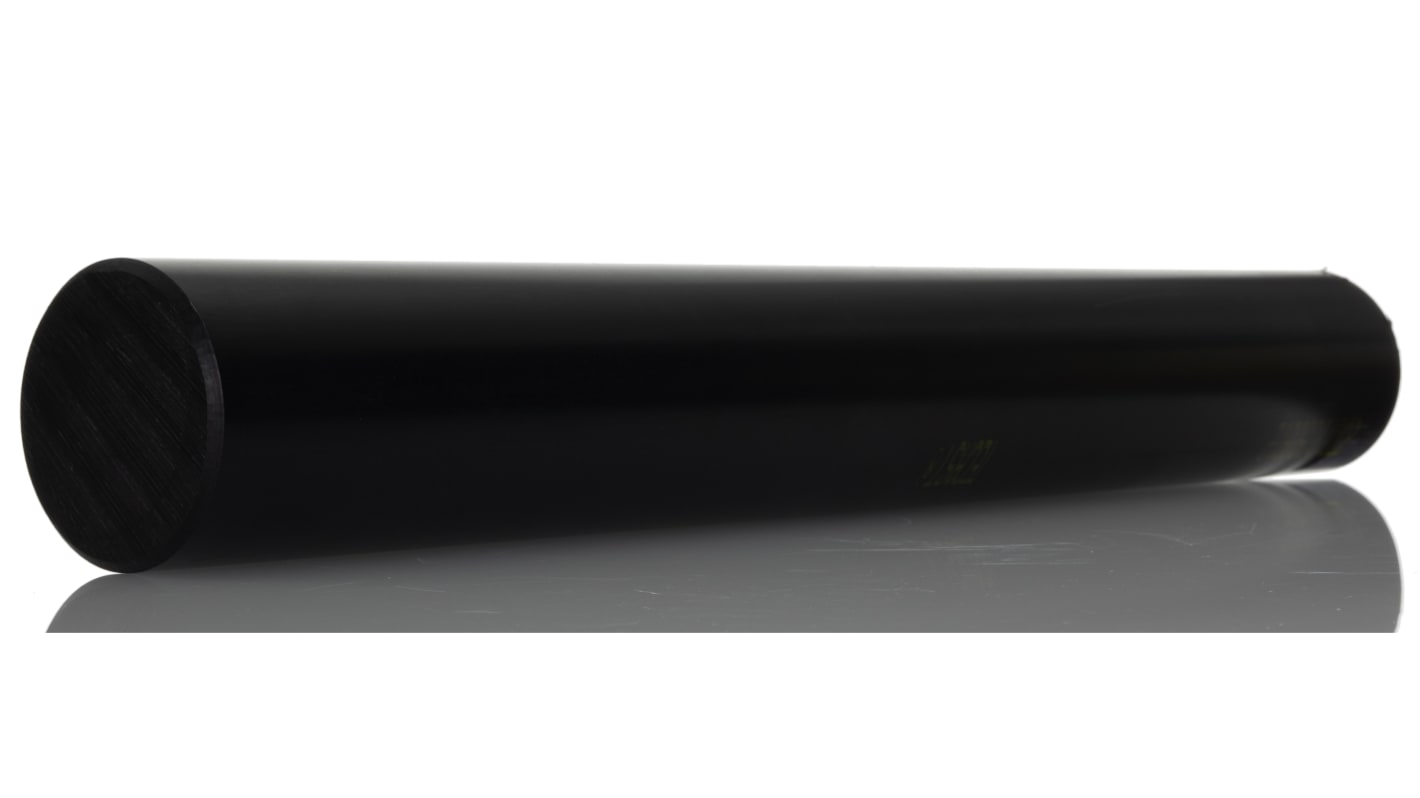

Cast Nylon 6 - MoS2 Filled
Modified by addition of Molybdenum Disulpide. Low friction and self-lubricating. Capable of high temperatures and high mechanical strength. High abrasive and ultra-violet light resistant. Suitable for bushes, bearings, gears and wheels etc. Black in colour
Standards
DIN 50 014
Nylatron® / MoS2 Filled Nylon
These materials are abrasion resistant and self-lubricating and have reasonably good chemical resistance to weak acids.
Specifications
Attribute | Value |
---|---|
Colour | Black |
Length | 500mm |
Material | Nylon |
Form | Rod |
Rod Diameter | 65mm |
Density | 1.15g/cm³ |
Tensile Strength | 75 MPa |
Flammability Rating | UL 94 HB |
Maximum Operating Temperature | +170°C |
Water Absorption | 6% |
Elongation | 60% |
