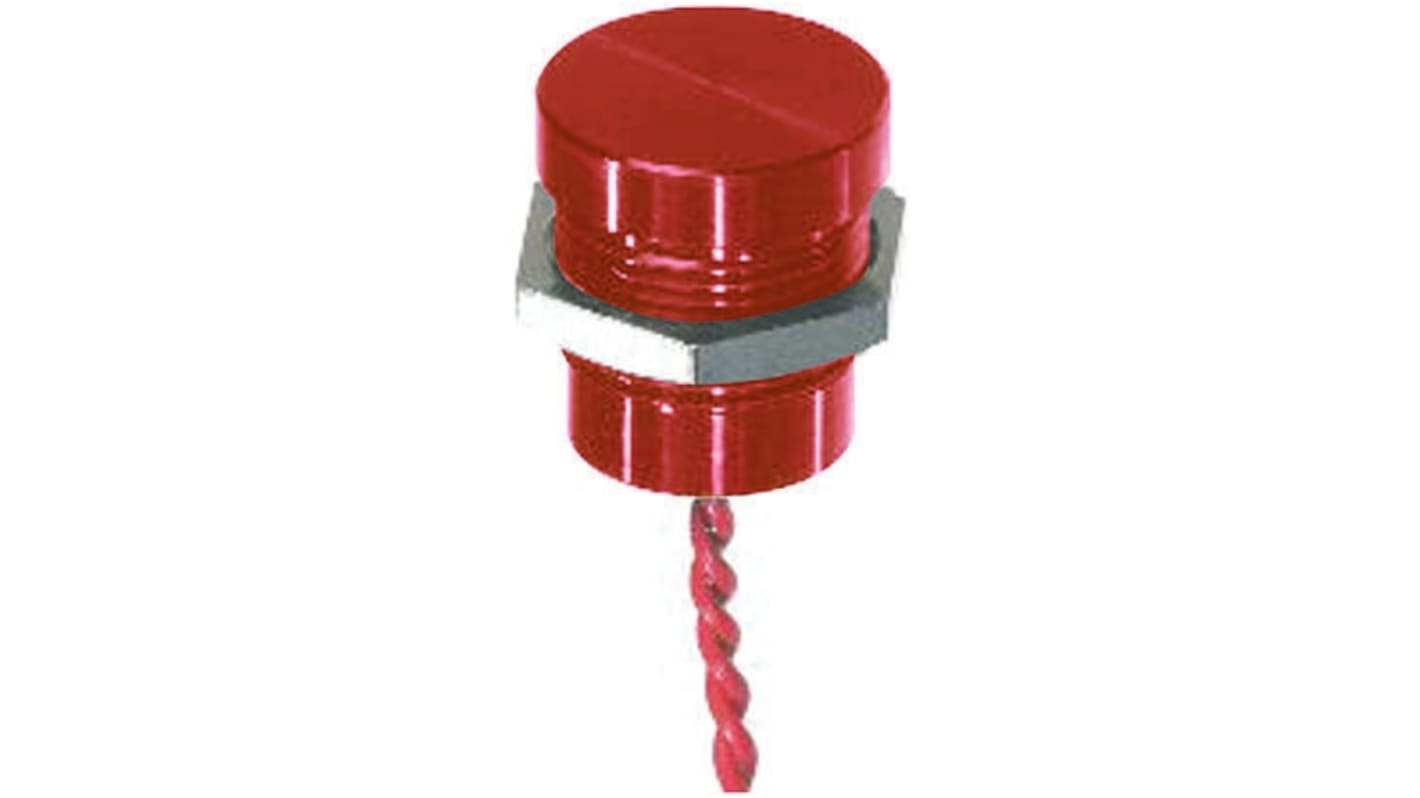

Flying Lead Piezo Switch, , IP68, 200 mA @ 24 V dc, Single Pole Single Throw (SPST), -40 → +75°C

  • RS Stock No. 691-9672
  • Mfr. Part No. PBAR9AF6000
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Piezo pushbutton switches IP 68 Ø 19mm series PBA

APEM Piezo switches are sealed to IP68 standards, are easy to clean and feature a very long mechanical life due to a solid state output – making them an ideal choice for demanding applications where reliability is important. The one-piece construction of APEM Piezo switches allows for a completely closed flat actuation surface, ensuring the prevention of liquids or other contaminants whilst making the surface easy to clean. Ideal APEM Piezo switch applications would include use in the food processing industry, medical applications and the mining industry.

Sealed to IP68
Easy to clean metal surface
Long life (50 million cycles)

Specifications
Attribute Value
Contact Current Rating 200 mA @ 24 V dc
Contact Configuration Single Pole Single Throw (SPST)
Terminal Type Flying Lead
IP Rating IP68
Switch Operation Momentary, Pulse
Case Colour Red
Minimum Operating Temperature -40°C
Maximum Operating Temperature +75°C
Operating Temperature Range -40 → +75°C
9 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each
Was $41.42
$ 39.35
(exc. GST)
$ 43.29
(inc. GST)
units
Per unit
1 - 9
$39.35
10 - 49
$37.97
50 - 99
$36.00
100 - 249
$34.02
250 +
$32.27
