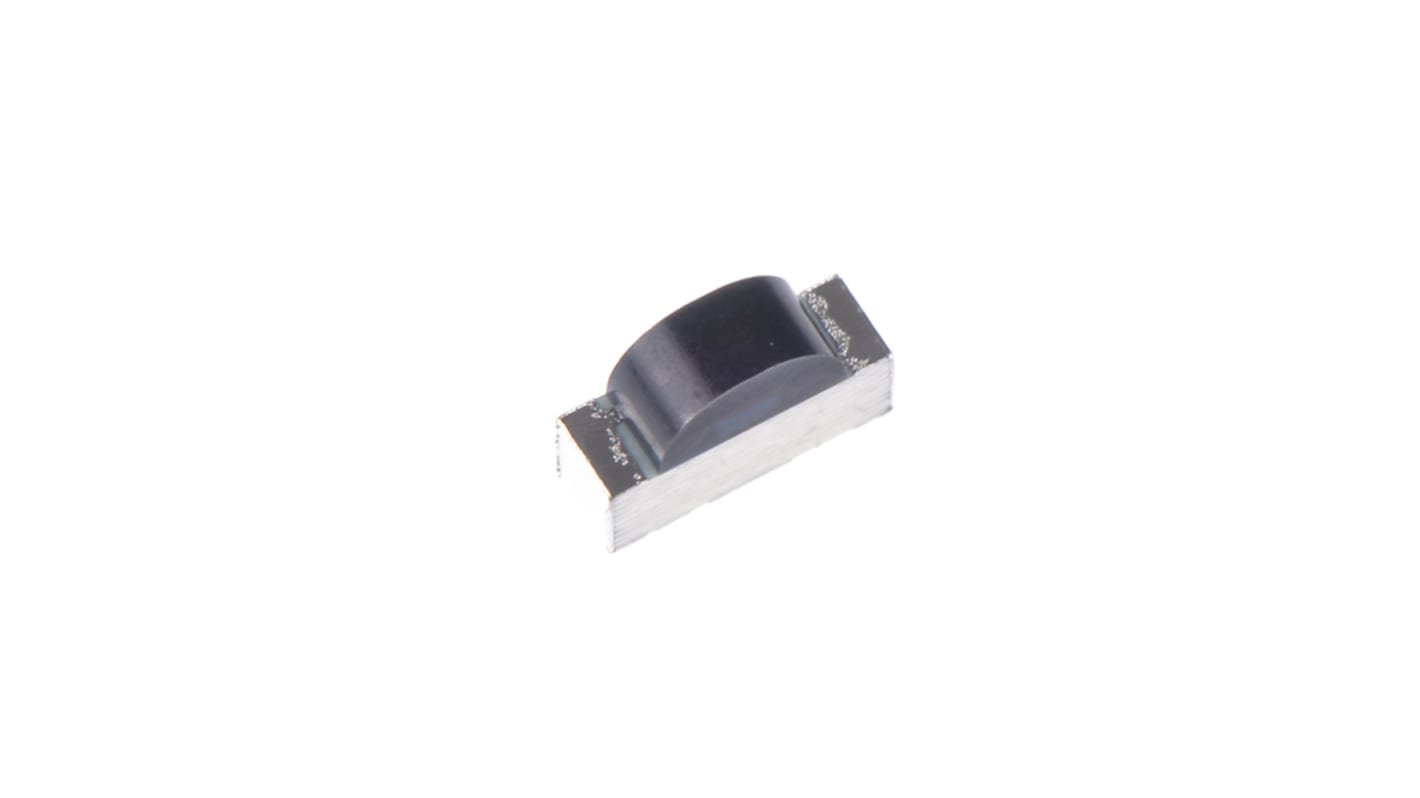

Vishay, VEMD10940F IR Si Photodiode, Surface Mount
- RS Stock No.:
- 818-4415
- Mfr. Part No.:
- VEMD10940F
- Brand:
- Vishay
100 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 100)
$0.238
(exc. GST)
$0.262
(inc. GST)
| Units | Per unit | Per Pack* |
| 100 - 700 | $0.238 | $23.80 |
| 800 - 1400 | $0.232 | $23.20 |
| 1500 + | $0.228 | $22.80 |
| *price indicative | ||
- RS Stock No.:
- 818-4415
- Mfr. Part No.:
- VEMD10940F
- Brand:
- Vishay
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
VEMD10940 Series PIN Photodiodes
The VEMD10940F, from Vishay Semiconductor, is a silicon PIN photodiode. It comes in a miniature side looking (SL) surface mount (SMD) package. Its domed lens has a daylight filter. Suitable applications for the VEMD10940F include; high speed photo detector, IR remote control, IR data transmission, photo interrupters and IR touch panels.
Features of the VEMD10940F photodiode:
Surface mount (SMD)
Side looking package
Dimensions: 3 x 2 x 1 mm
High radiant sensitivity
Fast response times
Angle of half intensity: 75°
Surface mount (SMD)
Side looking package
Dimensions: 3 x 2 x 1 mm
High radiant sensitivity
Fast response times
Angle of half intensity: 75°
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
IR Photodiodes, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared |
| Wavelength of Peak Sensitivity | 920nm |
| Mounting Type | Surface Mount |
| Amplifier Function | No |
| Number of Pins | 2 |
| Diode Material | Si |
| Minimum Wavelength Detected | 780nm |
| Maximum Wavelength Detected | 1050nm |
| Typical Fall Time | 100ns |
| Length | 3mm |
| Width | 2mm |
| Height | 1mm |
| Short Circuit Current | 3µA |
| Polarity | Positive |
| Series | VEMD109 |
| Breakdown Voltage | 32V |
| Typical Rise Time | 100ns |
