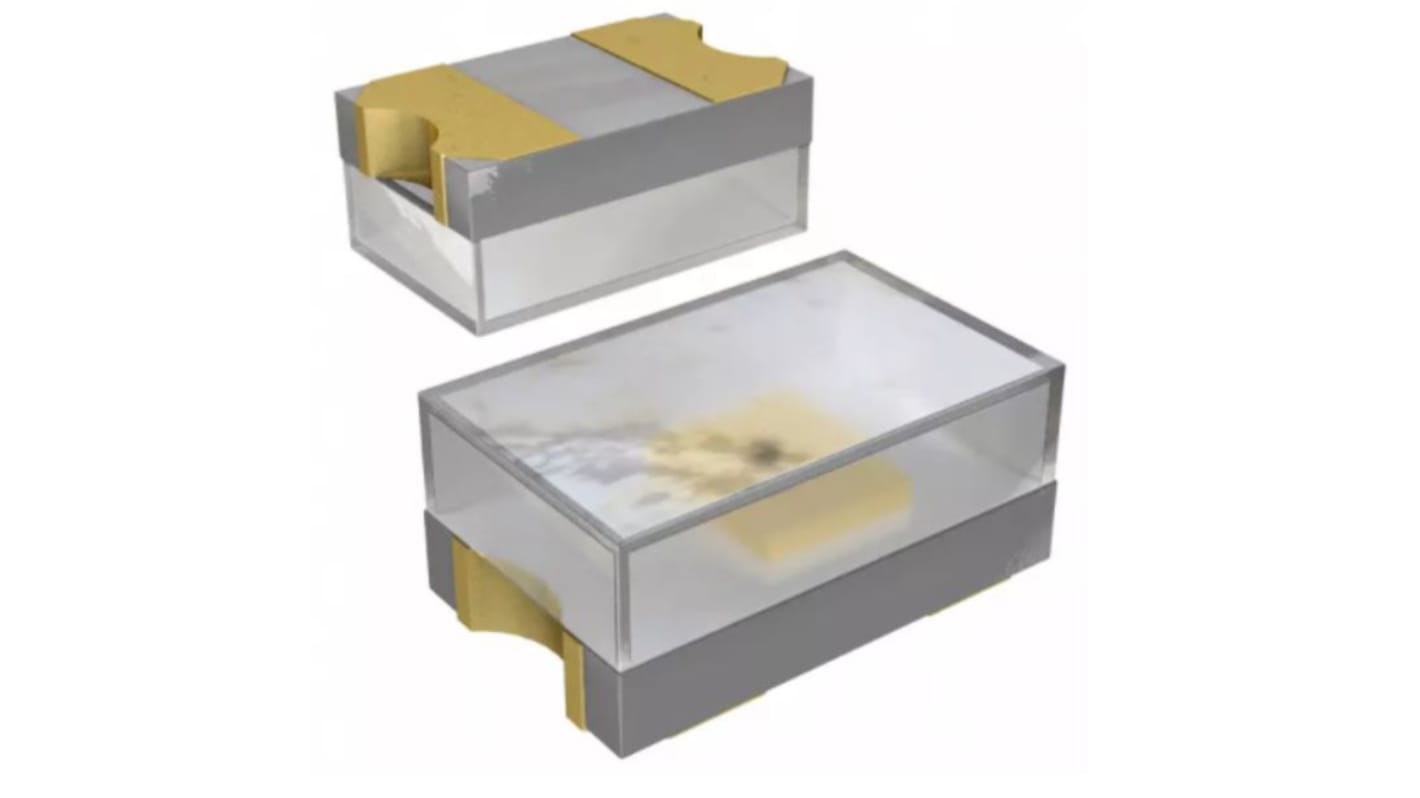

Vishay, TEMD7100X01 IR Si Photodiode, Surface Mount 0805
- RS Stock No.:
- 710-3844
- Mfr. Part No.:
- TEMD7100X01
- Brand:
- Vishay
120 In Global stock for delivery within 5 working day(s)
30 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Pack of 10)
$0.98
(exc. GST)
$1.08
(inc. GST)
| Units | Per unit | Per Pack* |
| 10 - 740 | $0.98 | $9.80 |
| 750 - 1490 | $0.969 | $9.69 |
| 1500 + | $0.941 | $9.41 |
| *price indicative | ||
- RS Stock No.:
- 710-3844
- Mfr. Part No.:
- TEMD7100X01
- Brand:
- Vishay
Technical data sheets
Legislation and Compliance
Product Details
TEMD7100 Series PIN Photodiodes
The TEMD7100 series, from Vishay Semiconductors, is a family of PIN photodiodes. They are in compact surface mount (SMD) packages with a daylight filter which blocks out ambient visible light. The TEMD7100 packages contain chip with a 0.23mm² sensitive area. Suitable applications for the TEMD7100 PIN photodiodes include; photodetectors, IR remote control, IR data transmissions, photointerrupters and shaft encoders.
Features of the TEMD7100 photodiodes:
Surface mounted (SMD)
0805 footprint
Dimensions: 2 x 1.25 x 0.85 mm
High radiant sensitivity
Daylight blocking filter
Angle of half intensity: 60°
Fast response times
Surface mounted (SMD)
0805 footprint
Dimensions: 2 x 1.25 x 0.85 mm
High radiant sensitivity
Daylight blocking filter
Angle of half intensity: 60°
Fast response times
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
IR Photodiodes, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared |
| Wavelength of Peak Sensitivity | 950nm |
| Package Type | 0805 |
| Mounting Type | Surface Mount |
| Amplifier Function | No |
| Number of Pins | 2 |
| Diode Material | Si |
| Minimum Wavelength Detected | 750nm |
| Maximum Wavelength Detected | 1050nm |
| Length | 2mm |
| Width | 1.25mm |
| Height | 0.85mm |
| Angle of Half Sensitivity | 60 ° |
| Polarity | Forward |
